Climax Metal Products 3G-OTH-121809 — Technical Specifications

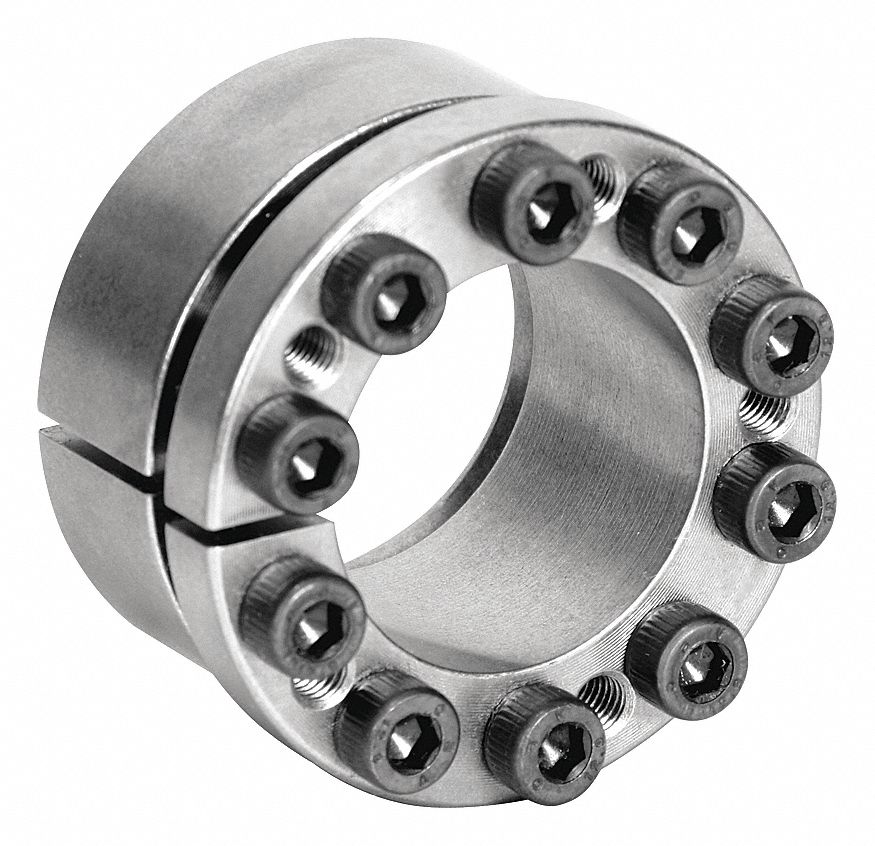

The CLIMAX METAL PRODUCTS Keyless Bushing is a flanged, multi-screw locking assembly bushing designed for a 20 mm shaft diameter, with a 1 9/16 in outer diameter and 30 mm width (MPN C193M-20). This metric-system component provides a keyless shaft-to-hub connection using multiple locking screws.
Technical Specifications
| Parameter | Value |
|---|---|
| OD | 1 9/16 in |
| Wd | 30 mm |
| Type | For 20 mm Shaft Dia |
| Brand | CLIMAX METAL PRODUCTS |
| Flange Type | Flanged |
| Keyless Bushing Type | Multi-Screw Locking Assembly |
| System Of Measurement | Metric |
| Manufacturer Part Number | C193M-20 |
