Climax Metal Products 3G-OTH-112230 — Technical Specifications

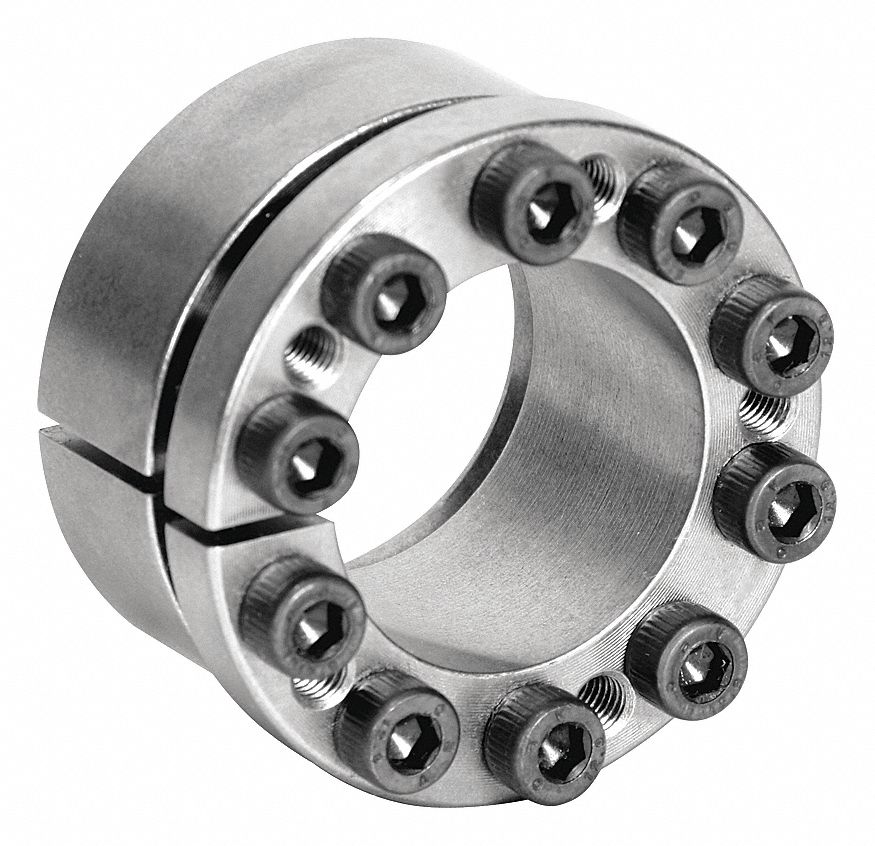

The CLIMAX METAL PRODUCTS Keyless Bushing is a flanged, multi-screw locking assembly keyless bushing designed for a 15 mm shaft diameter, with a 1 3/16 in outer diameter and 24.5 mm width. This metric component, model C193M-15, provides a keyless mounting solution for shaft connections.
Technical Specifications
| Parameter | Value |
|---|---|
| OD | 1 3/16 in |
| Wd | 24.5 mm |
| Type | For 15 mm Shaft Dia |
| Brand | CLIMAX METAL PRODUCTS |
| Flange Type | Flanged |
| Keyless Bushing Type | Multi-Screw Locking Assembly |
| System Of Measurement | Metric |
| Manufacturer Part Number | C193M-15 |
