Climax Metal Products 3G-OTH-117020 — Technical Specifications

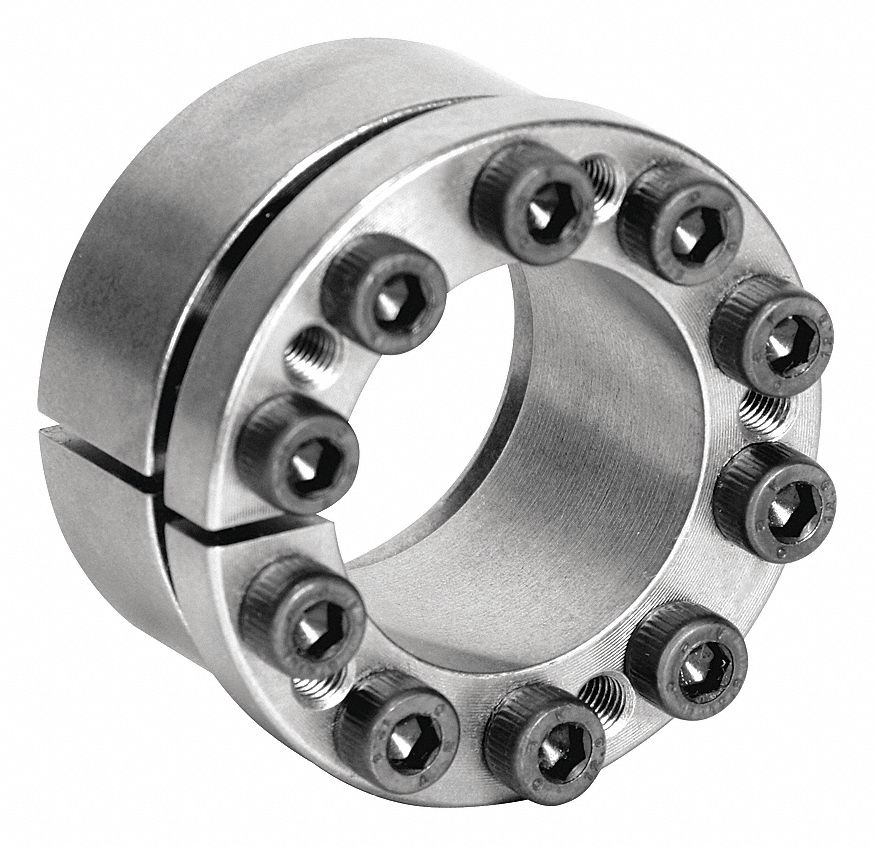

The CLIMAX METAL PRODUCTS Keyless Bushing is a flanged, multi-screw locking assembly type keyless bushing. It is designed for an 11 mm shaft diameter, with a 1 1/16 in outer diameter and a 20.5 mm width. This metric component is identified by manufacturer part number C193M-11.
Technical Specifications
| Parameter | Value |
|---|---|
| OD | 1 1/16 in |
| Wd | 20.5 mm |
| Type | For 11 mm Shaft Dia |
| Brand | CLIMAX METAL PRODUCTS |
| Flange Type | Flanged |
| Keyless Bushing Type | Multi-Screw Locking Assembly |
| System Of Measurement | Metric |
| Manufacturer Part Number | C193M-11 |
