Climax Metal Products 3G-OTH-112138 — Technical Specifications

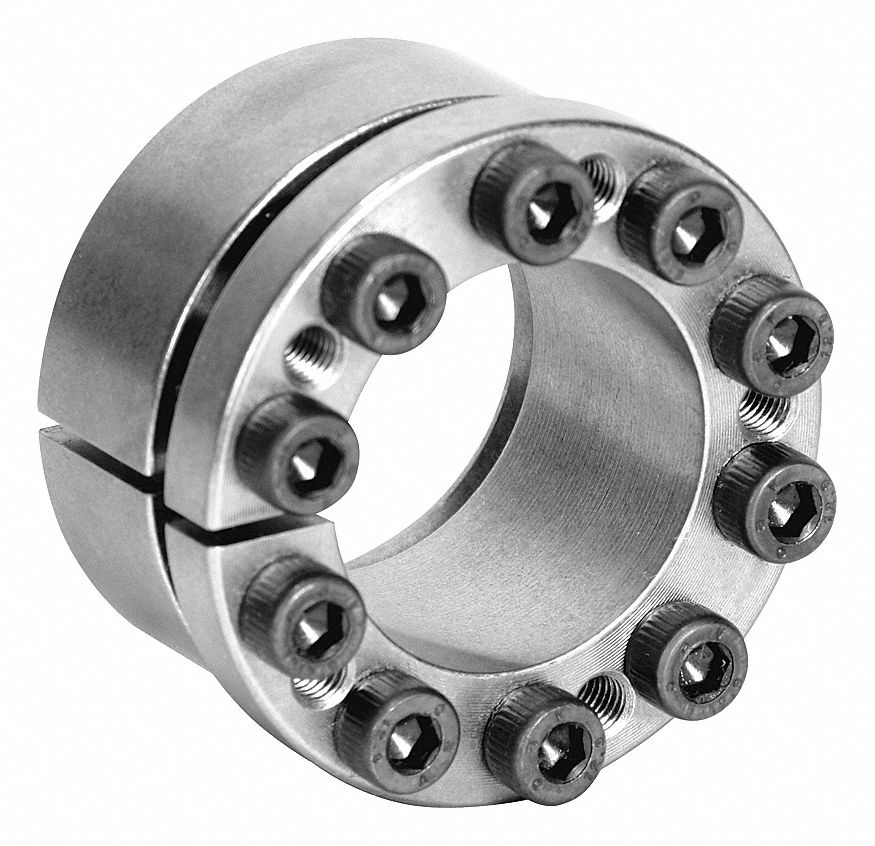

The CLIMAX METAL PRODUCTS Keyless Bushing is a flanged, multi-screw locking assembly type bushing designed for a 10 mm shaft diameter with a 15/16 in OD and 20.5 mm width (MPN C193M-10). This metric-system component provides a keyless shaft-to-hub connection using multiple locking screws.
Technical Specifications
| Parameter | Value |
|---|---|
| OD | 15/16 in |
| Wd | 20.5 mm |
| Type | For 10 mm Shaft Dia |
| Brand | CLIMAX METAL PRODUCTS |
| Flange Type | Flanged |
| Keyless Bushing Type | Multi-Screw Locking Assembly |
| System Of Measurement | Metric |
| Manufacturer Part Number | C193M-10 |
