Climax Metal Products 3G-OTH-119476 — Technical Specifications

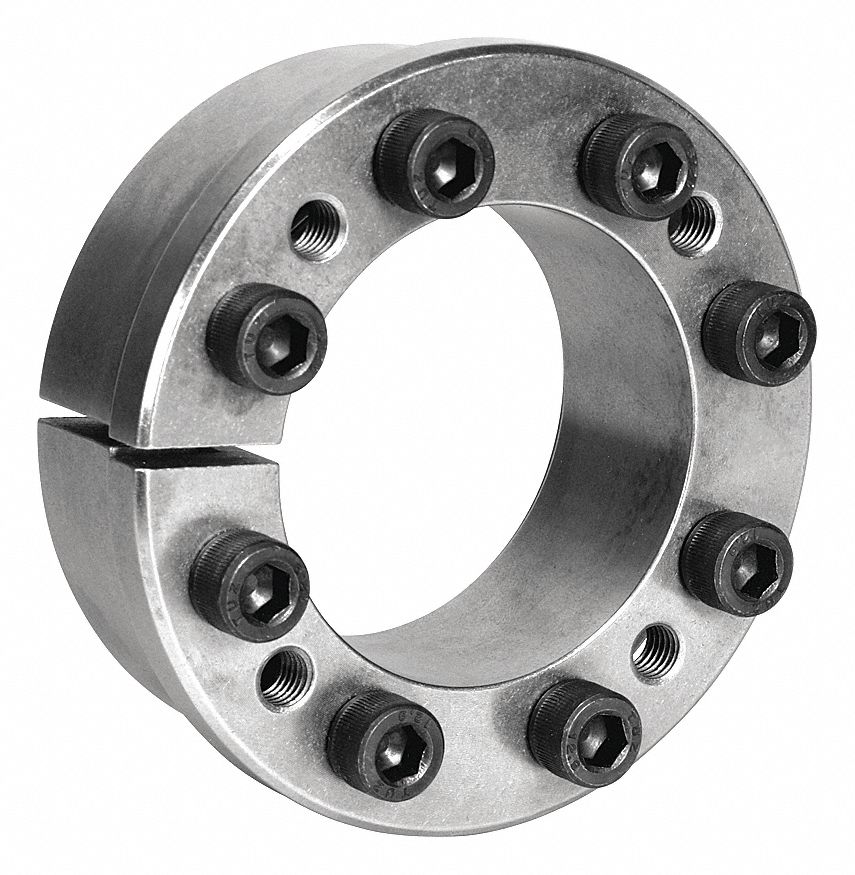

The CLIMAX METAL PRODUCTS Keyless Bushing is a flanged, multi-screw locking assembly keyless bushing. It is designed for a 95 mm shaft diameter, with a 135 mm outer diameter and a 50.5 mm width, using metric measurements. This bushing provides a keyless shaft-to-hub connection via its multi-screw locking mechanism.
Technical Specifications
| Parameter | Value |
|---|---|
| OD | 135 mm |
| Wd | 50.5 mm |
| Type | For 95 mm Shaft Dia |
| Brand | CLIMAX METAL PRODUCTS |
| Flange Type | Flanged |
| Keyless Bushing Type | Multi-Screw Locking Assembly |
| System Of Measurement | Metric |
| Manufacturer Part Number | C133M-95X135 |
