Climax Metal Products 3G-OTH-117516 — Technical Specifications

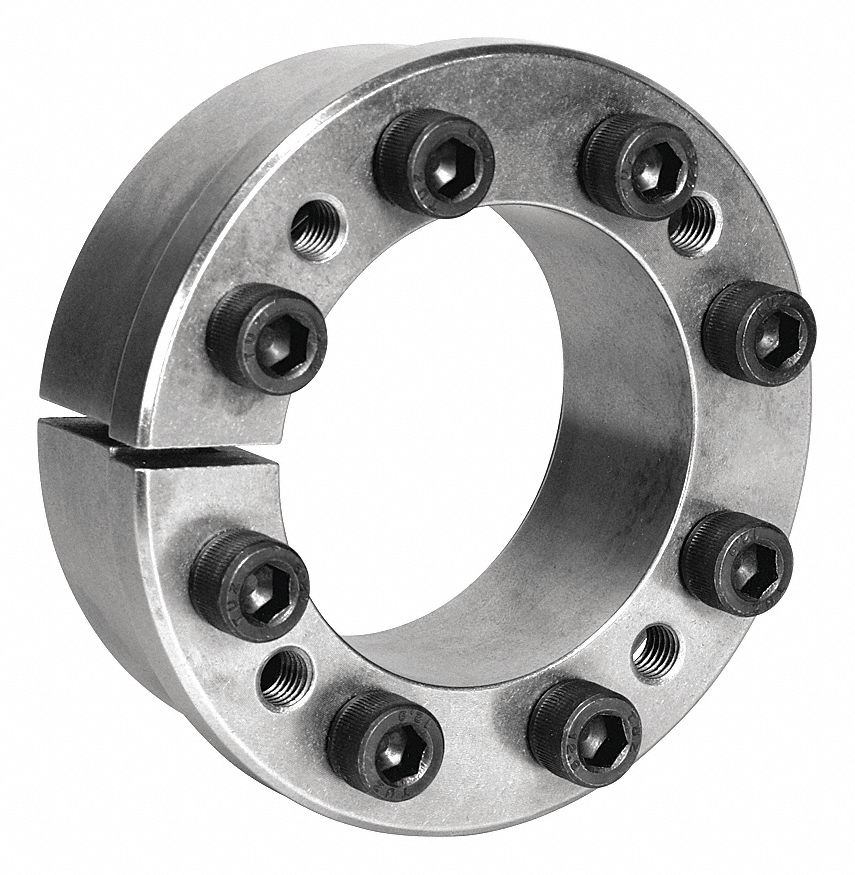

The CLIMAX METAL PRODUCTS Keyless Bushing is a flanged, multi-screw locking assembly bushing designed for a 35 mm shaft diameter with a 60 mm outer diameter and 34.5 mm width. This metric component, model C133M-35X60, provides a keyless shaft-to-hub connection through its multi-screw locking mechanism.
Technical Specifications
| Parameter | Value |
|---|---|
| OD | 60 mm |
| Wd | 34.5 mm |
| Type | For 35 mm Shaft Dia |
| Brand | CLIMAX METAL PRODUCTS |
| Flange Type | Flanged |
| Keyless Bushing Type | Multi-Screw Locking Assembly |
| System Of Measurement | Metric |
| Manufacturer Part Number | C133M-35X60 |
