Chief 3G-OTH-160548 — Technical Specifications

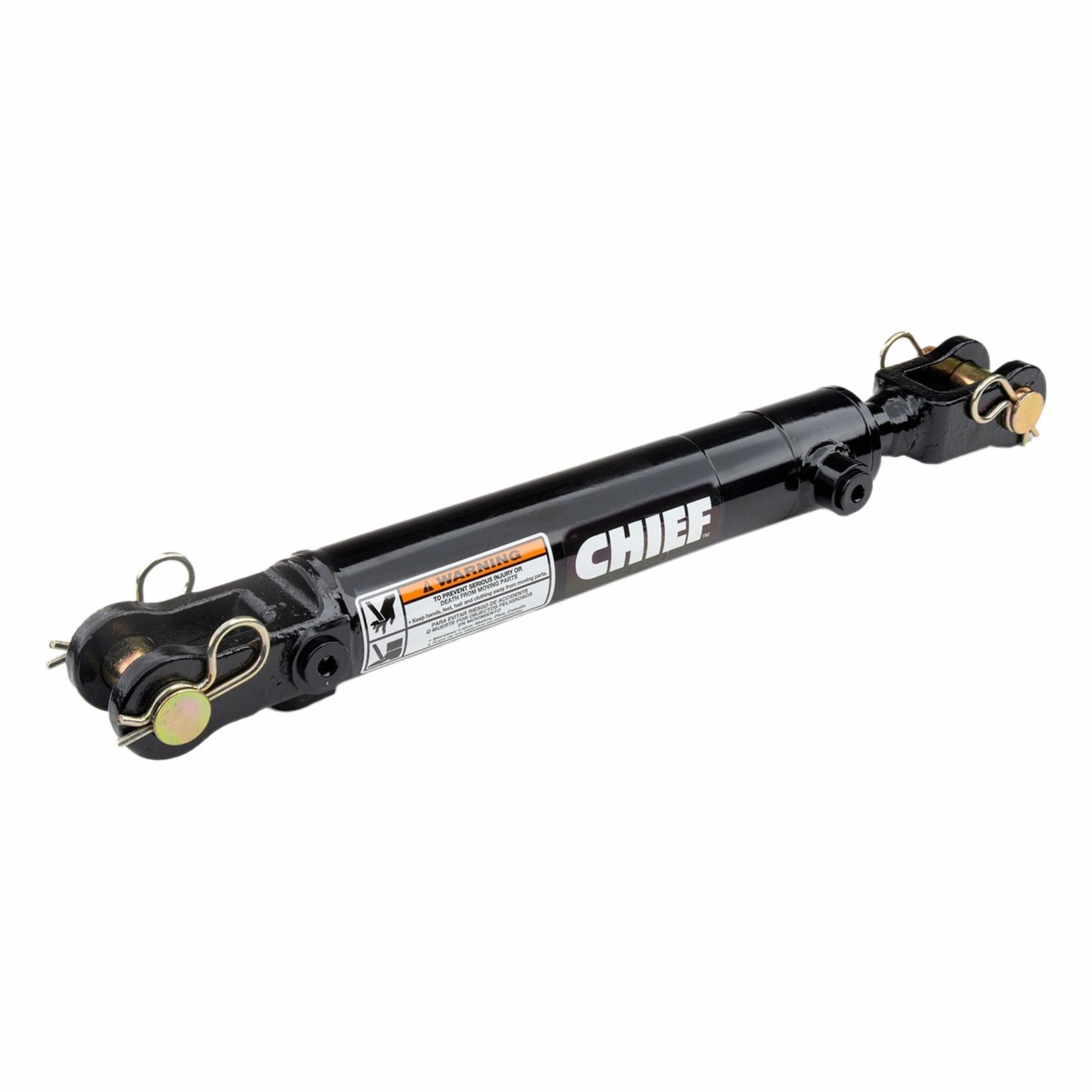

The CHIEF Welded Hydraulic Cylinder (MPN 297147) is a repairable clevis-mount welded hydraulic cylinder with a 3.5 in bore diameter and 8 in stroke length. It is double acting, with a retracted length of 20 1/4 in and a capacity of 28,953 lb.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | 28,953 lb |
| Stroke Lg | 8 in |
| Retracted Lg | 20 1/4 in |
| Manufacturer Part Number | 297147 |
