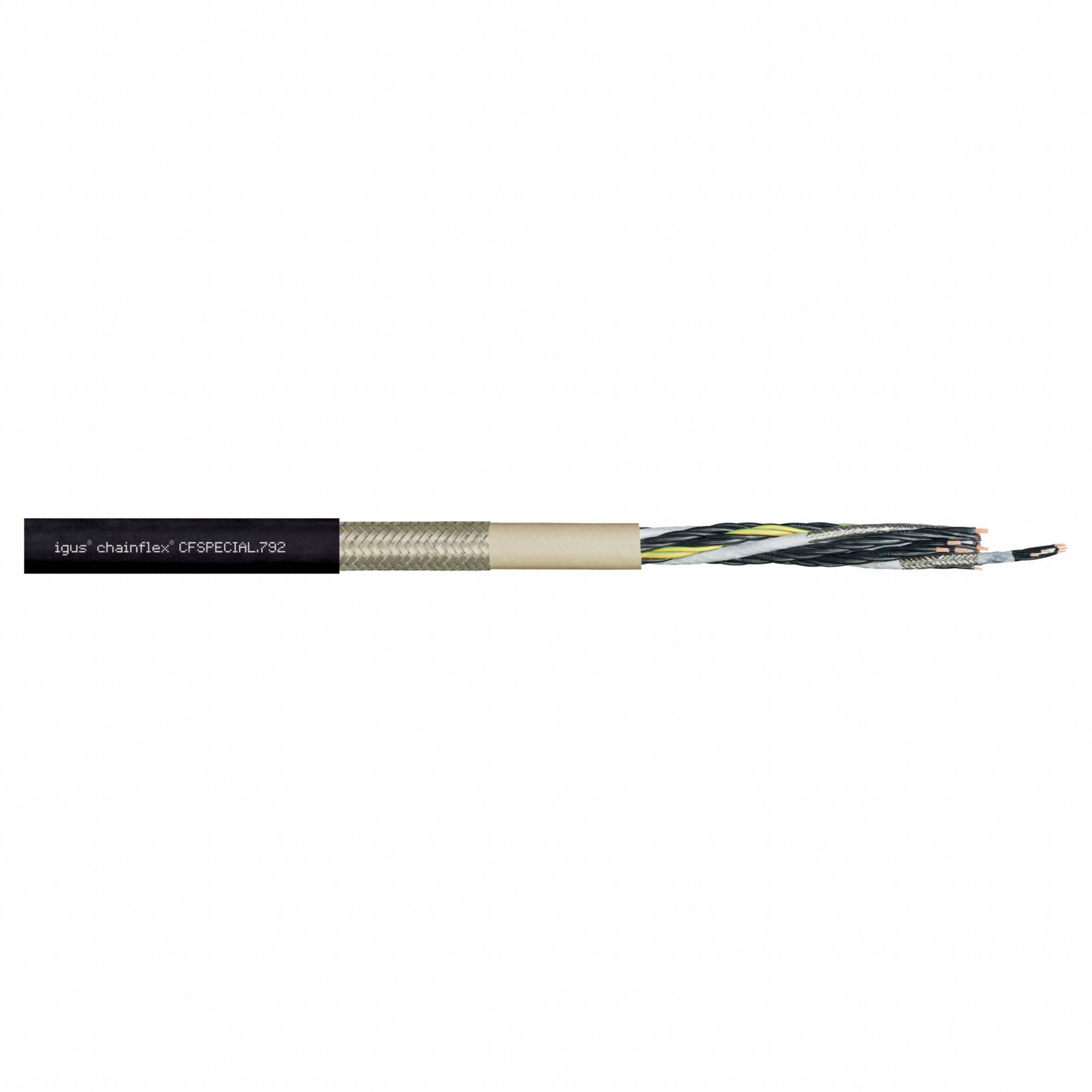

Chainflex 3G-OTH-45875 — Technical Specifications

Name: Chainflex 3G-OTH-45875 CHAINFLEX Hybrid Cable: (5) Pairs of (2) 10 AWG (6.0) and (2) 14 AWG (2.5)/(2) Six Pr 17 AWG (1.0) (MPN CFSP-792-011). Key specifications — Conductor Grouping: (5) Pairs of (2) 10 AWG and (2) 14 AWG/(2) Six Pair 17 AWG; Includes Ground: Yes; Minimum Bend Radius Factor - Flexible: 8 x OD; Minimum Bend Radius Factor - Fixed: 5 x OD; Overall Length: Order by the Foot; Brand: CHAINFLEX.
Brand: Chainflex

The CHAINFLEX Hybrid Cable (SKU 801MM6, MPN CFSP-792-011) is a hybrid cable featuring a conductor grouping of (5) Pairs of (2) 10 AWG and (2) 14 AWG/(2) Six Pair 17 AWG, with a ground included. It has a minimum bend radius factor of 5 x OD for fixed installation and 8 x OD for flexible installation, and is sold by the foot.

View Product & Quote

Technical Specifications

Parameter	Value
Type	AWG (2.5)/(2) Six Pr 17 AWG (1.0)
Brand	CHAINFLEX
Overall Length	Order by the Foot
Includes Ground	Yes
Conductor Grouping	(5) Pairs of (2) 10 AWG and (2) 14 AWG/(2) Six Pair 17 AWG
Manufacturer Part Number	CFSP-792-011
Minimum Bend Radius Factor - Fixed	5 x OD
Minimum Bend Radius Factor - Flexible	8 x OD
