Chainflex 3G-OTH-47556 — Technical Specifications

Name: Chainflex 3G-OTH-47556 CHAINFLEX Motor Cable: 8 AWG, 1 Conductors, Order by the Foot, TPR Jacket, 1,000 V (MPN CFPE-100-01). Key specifications — Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 7.5 x OD; Resistance Properties: UV/Sunlight Resistant; Standards: CF9.15.07 ISO Class 1 (Outer Jacket Material); Product Type: Motor Cable.
Brand: Chainflex

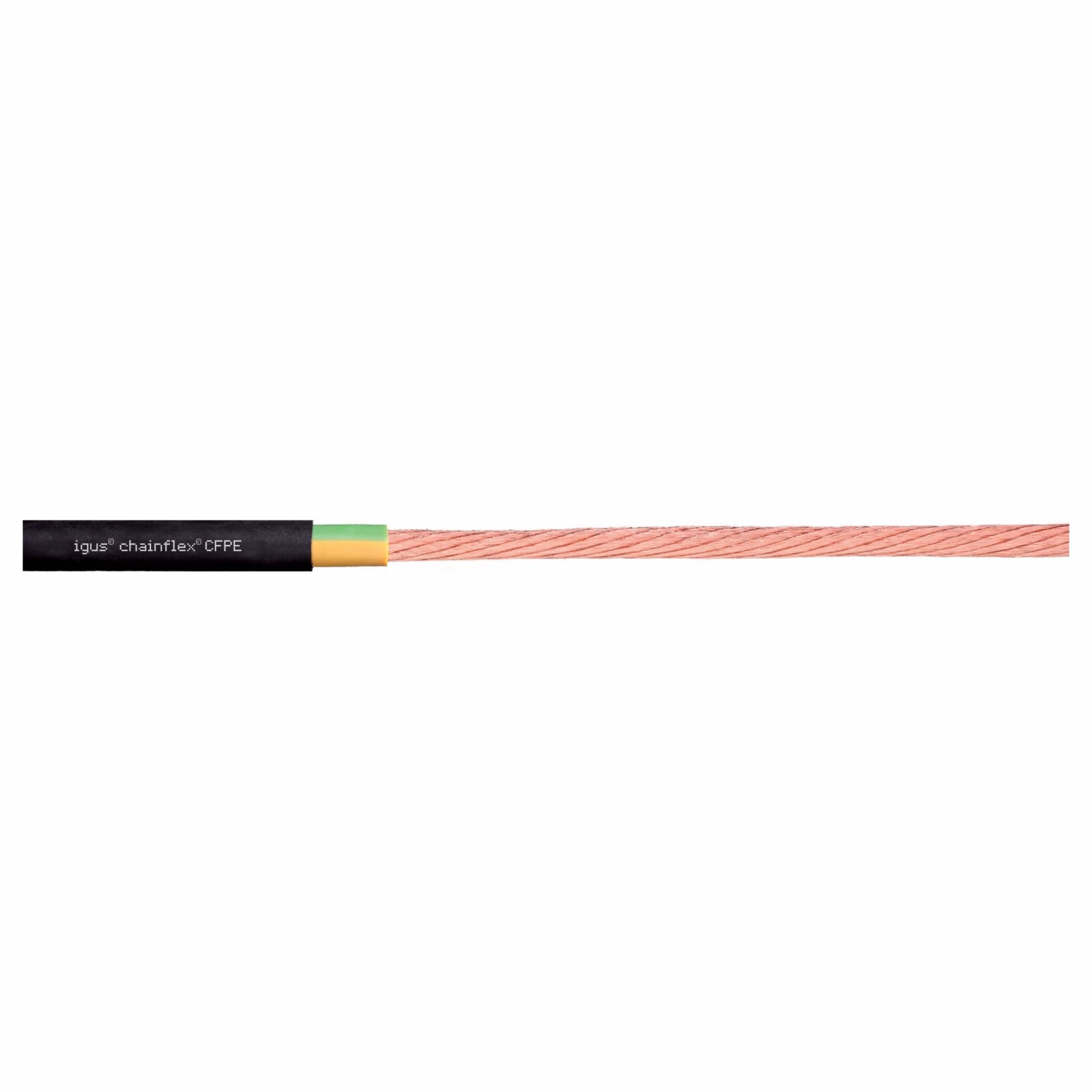

The CHAINFLEX Motor Cable: 8 AWG is a single-conductor continuous flexing power cable from the CFPE series, designed for motor applications. It features a TPR jacket, includes a ground conductor, and is UV/sunlight resistant. The cable meets CF9.15.07 ISO Class 1 standards for the outer jacket material and has minimum bend radius factors of 4 x OD for fixed installation, 6 x OD for flexible use, and 7.5 x OD for e-chain applications.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Order by the Foot, TPR Jacket, 1,000 V
Brand	CHAINFLEX
Series	Chainflex
Standards	CF9.15.07 ISO Class 1 (Outer Jacket Material)
Conductors	1
Cable Series	CFPE
Product Type	Motor Cable
Includes Ground	Yes
Resistance Properties	UV/Sunlight Resistant
Conductor Configuration	Single
Manufacturer Part Number	CFPE-100-01
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	7.5 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
