Chainflex 3G-OTH-46854 — Technical Specifications

Name: Chainflex 3G-OTH-46854 CHAINFLEX Bus Cable: (4) Shielded Twisted Pr 26 AWG (0.15), PUR, Order by the Foot, Ethernet/CAT7 (MPN CFBUS-PUR-052). Key specifications — Bus System: Ethernet/CAT7; Conductor Grouping: (4) Shielded Twisted Pair 26 AWG; Minimum Bend Radius Factor - Fixed: 7 x OD; Minimum Bend Radius Factor - Flexible: 10 x OD; Shielding: Shielded; Brand: CHAINFLEX.
Brand: Chainflex

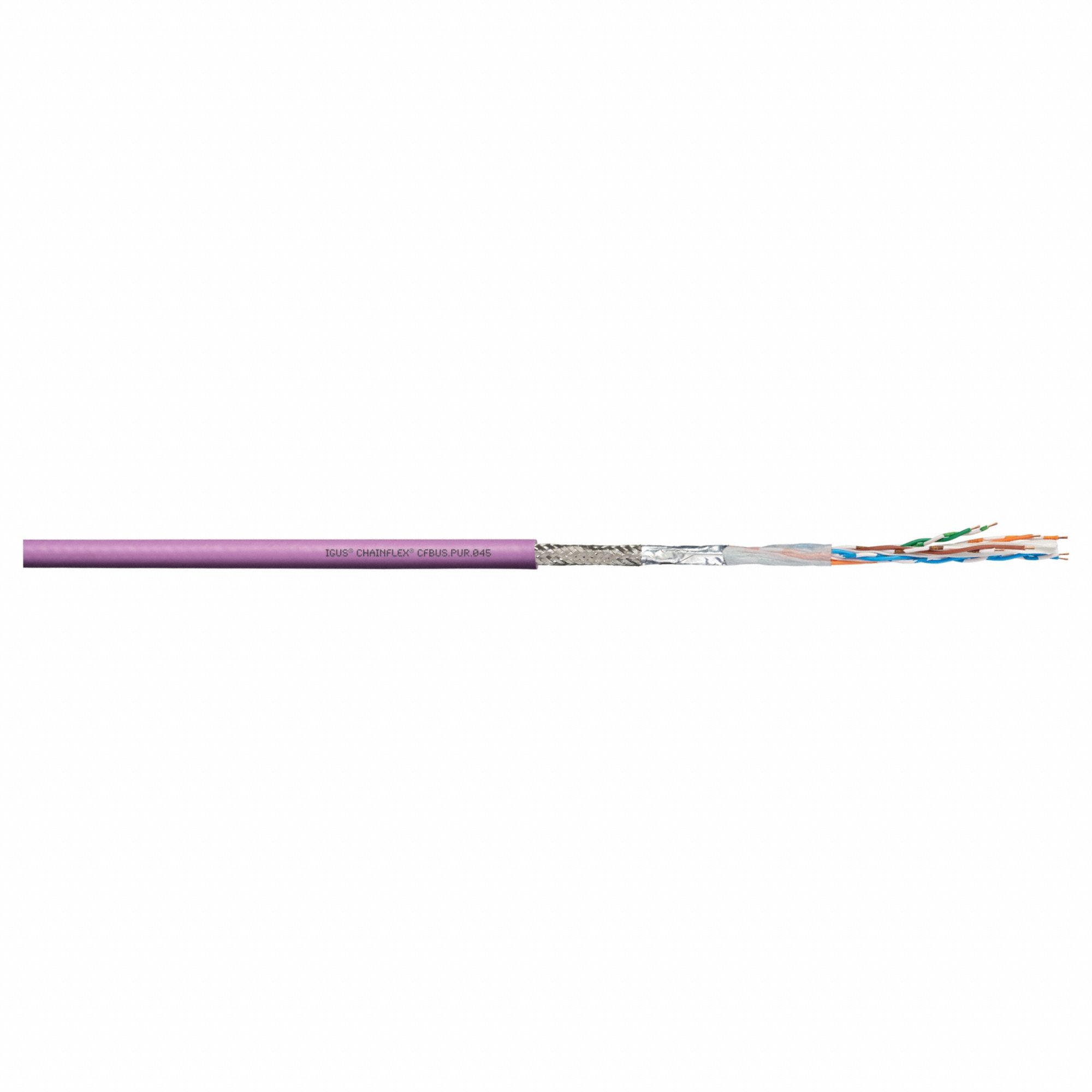

The CHAINFLEX Bus Cable (SKU 801ME2) is a continuous flexing bus drop cable for Ethernet/CAT7 systems, featuring (4) shielded twisted pairs of 26 AWG conductors. It has a minimum bend radius factor of 7 x OD for fixed installation and 10 x OD for flexible applications, with PUR jacket and overall shielding.

View Product & Quote

Technical Specifications

Parameter	Value
Type	PUR, Order by the Foot, Ethernet/CAT7
Brand	CHAINFLEX
Shielding	Shielded
Bus System	Ethernet/CAT7
Conductor Grouping	(4) Shielded Twisted Pair 26 AWG
Manufacturer Part Number	CFBUS-PUR-052
Minimum Bend Radius Factor - Fixed	7 x OD
Minimum Bend Radius Factor - Flexible	10 x OD
