Chainflex 3G-OTH-49919 — Technical Specifications

Name: Chainflex 3G-OTH-49919 CHAINFLEX Measuring System Cable: Pr 24 AWG (0.25)/(5) 20 AWG (0.50), Green, PUR Jacket, 50 V Volt (MPN CF894-022). Key specifications — Conductor Grouping: Pair 24 AWG/(5) 20 AWG; Includes Ground: No; Overall Length: Order by the Foot; Minimum Bend Radius Factor - Fixed: 8 x OD; Minimum Bend Radius Factor - Flexible: 12 x OD; Brand: CHAINFLEX.
Brand: Chainflex

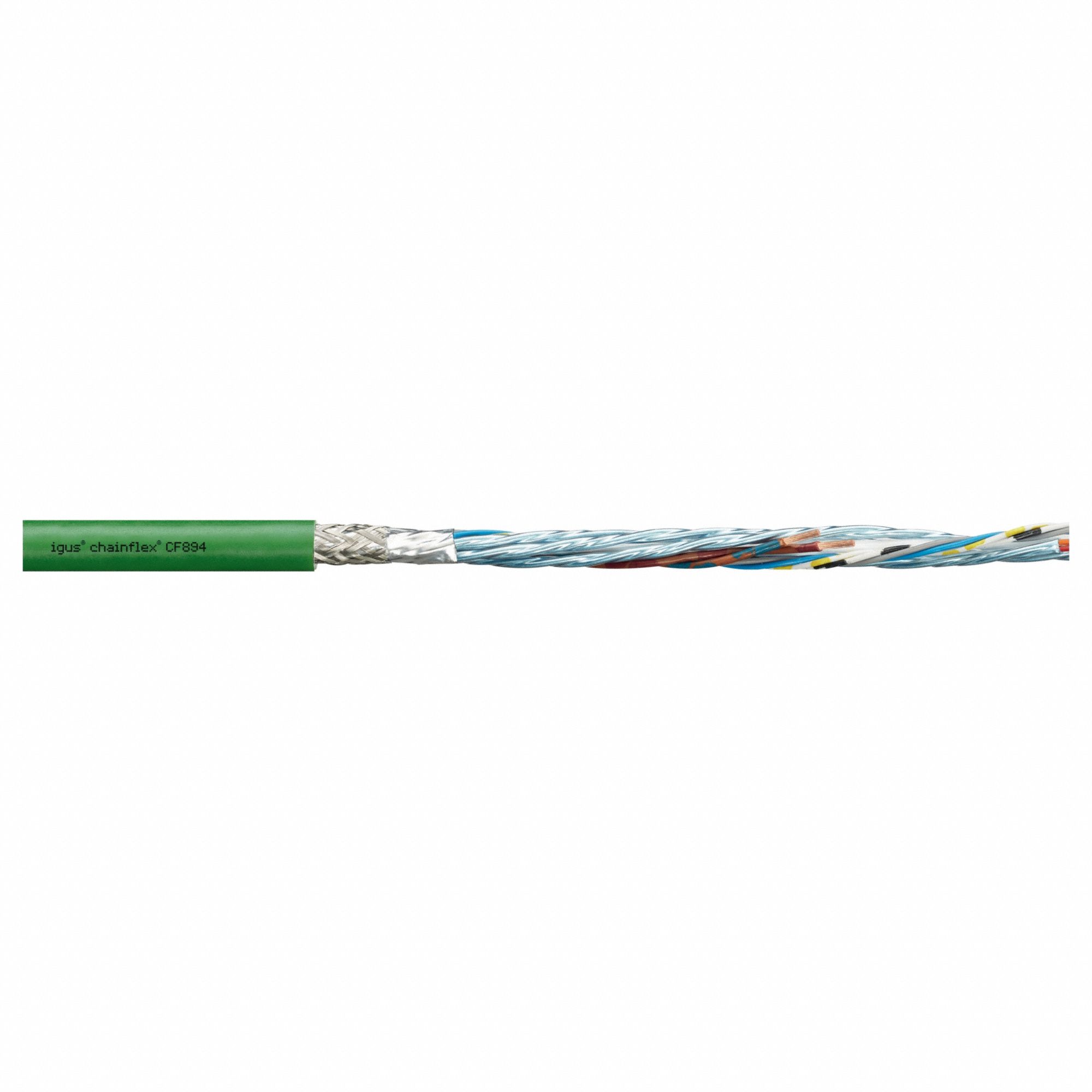

The CHAINFLEX Measuring System Cable: Pr 24 AWG (0.25)/(5) 20 AWG (0.50) is a servo motor feedback cable with a green PUR jacket and 50 V rating. It features a conductor grouping of one pair of 24 AWG and five 20 AWG conductors, with no included ground. The cable has a minimum bend radius factor of 8 x OD for fixed installation and 12 x OD for flexible use, and is sold by the foot.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Green, PUR Jacket
Volt	50 V
Brand	CHAINFLEX
Overall Length	Order by the Foot
Includes Ground	No
Conductor Grouping	Pair 24 AWG/(5) 20 AWG
Manufacturer Part Number	CF894-022
Minimum Bend Radius Factor - Fixed	8 x OD
Minimum Bend Radius Factor - Flexible	12 x OD
