Chainflex 3G-OTH-50124 — Technical Specifications

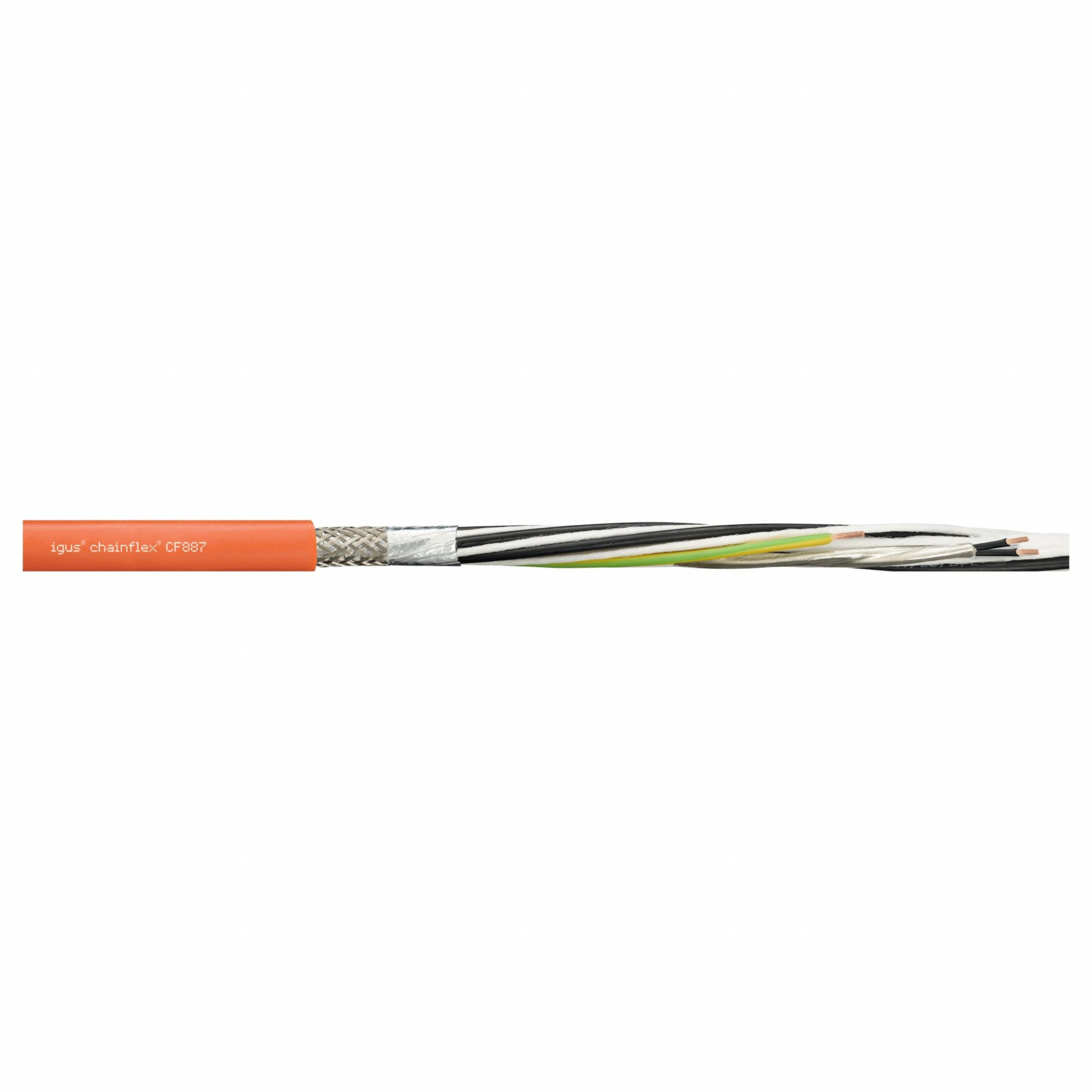

Name: Chainflex 3G-OTH-50124 CHAINFLEX Servo Motor Cable: (4) 16 AWG (1.5)/Pr 16 AWG (1.5), Orange, PVC Jacket, 1,000 V Volt (MPN CF887-15150201). Key specifications — Conductor Grouping: (4) 16 AWG/Pair 16 AWG; Includes Ground: Yes; Overall Length: Order by the Foot; Minimum Bend Radius Factor - Fixed: 8 x OD; Minimum Bend Radius Factor - Flexible: 12 x OD; Brand: CHAINFLEX.
Brand: Chainflex

The CHAINFLEX Servo Motor Power Cable (SKU 801M63, MPN CF887-15150201) features a conductor grouping of (4) 16 AWG/Pair 16 AWG with an included ground, a PVC jacket, and a 1,000 V rating. It is available by the foot and has a minimum bend radius factor of 8 x OD for fixed installation and 12 x OD for flexible applications.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Orange, PVC Jacket
Volt	1,000 V
Brand	CHAINFLEX
Overall Length	Order by the Foot
Includes Ground	Yes
Conductor Grouping	(4) 16 AWG/Pair 16 AWG
Manufacturer Part Number	CF887-15150201
Minimum Bend Radius Factor - Fixed	8 x OD
Minimum Bend Radius Factor - Flexible	12 x OD
