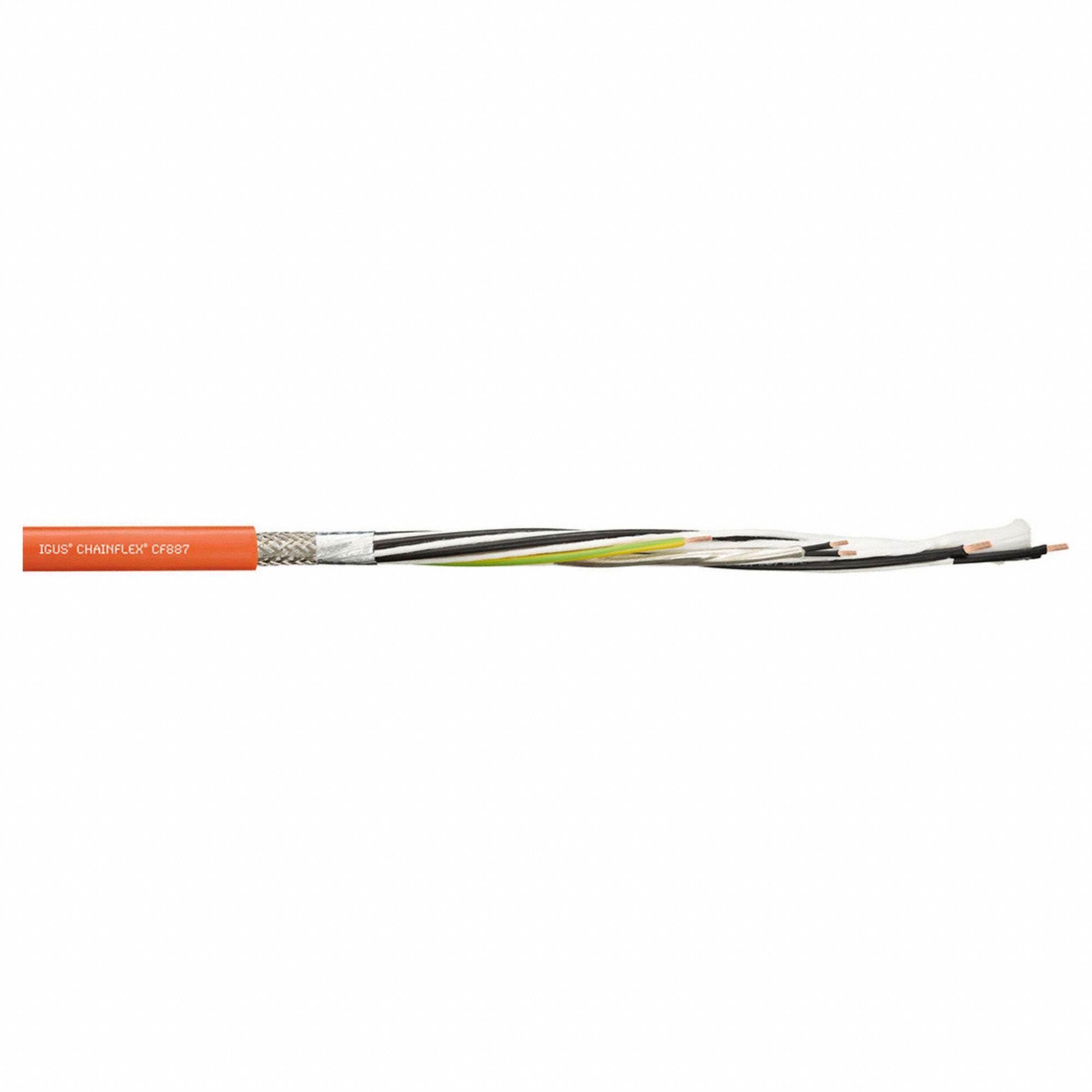

Chainflex 3G-OTH-50643 — Technical Specifications

Name: Chainflex 3G-OTH-50643 CHAINFLEX Servo Motor Cable: (4) 17 AWG (1.0)/(2) Shielded Twisted Pr 18 AWG (0.75), Orange (MPN CF887-10070202). Key specifications — Conductor Grouping: (4) 17 AWG/(2) Shielded Twisted Pair 18 AWG; Includes Ground: Yes; Overall Length: Order by the Foot; Minimum Bend Radius Factor - Fixed: 8 x OD; Minimum Bend Radius Factor - Flexible: 12 x OD; Brand: CHAINFLEX.
Brand: Chainflex

The CHAINFLEX Servo Motor Power Cable (SKU 801M62, MPN CF887-10070202) features a conductor grouping of (4) 17 AWG/(2) Shielded Twisted Pair 18 AWG with an included ground. It is available by the foot and has a minimum bend radius factor of 8 x OD for fixed installation and 12 x OD for flexible applications.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Twisted Pr 18 AWG (0.75), Orange
Brand	CHAINFLEX
Overall Length	Order by the Foot
Includes Ground	Yes
Conductor Grouping	(4) 17 AWG/(2) Shielded Twisted Pair 18 AWG
Manufacturer Part Number	CF887-10070202
Minimum Bend Radius Factor - Fixed	8 x OD
Minimum Bend Radius Factor - Flexible	12 x OD
