Chainflex 3G-OTH-47231 — Technical Specifications

Name: Chainflex 3G-OTH-47231 CHAINFLEX Motor Cable: 4 AWG, 1 Conductors, Order by the Foot, PVC Jacket, 600 V (MPN CF885PE-250-01). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 8 x OD; Minimum Bend Radius Factor - Flexible: 12 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 15 x OD; Resistance Properties: Flame Retardant; Standards: IEC 60332-1-2.
Brand: Chainflex

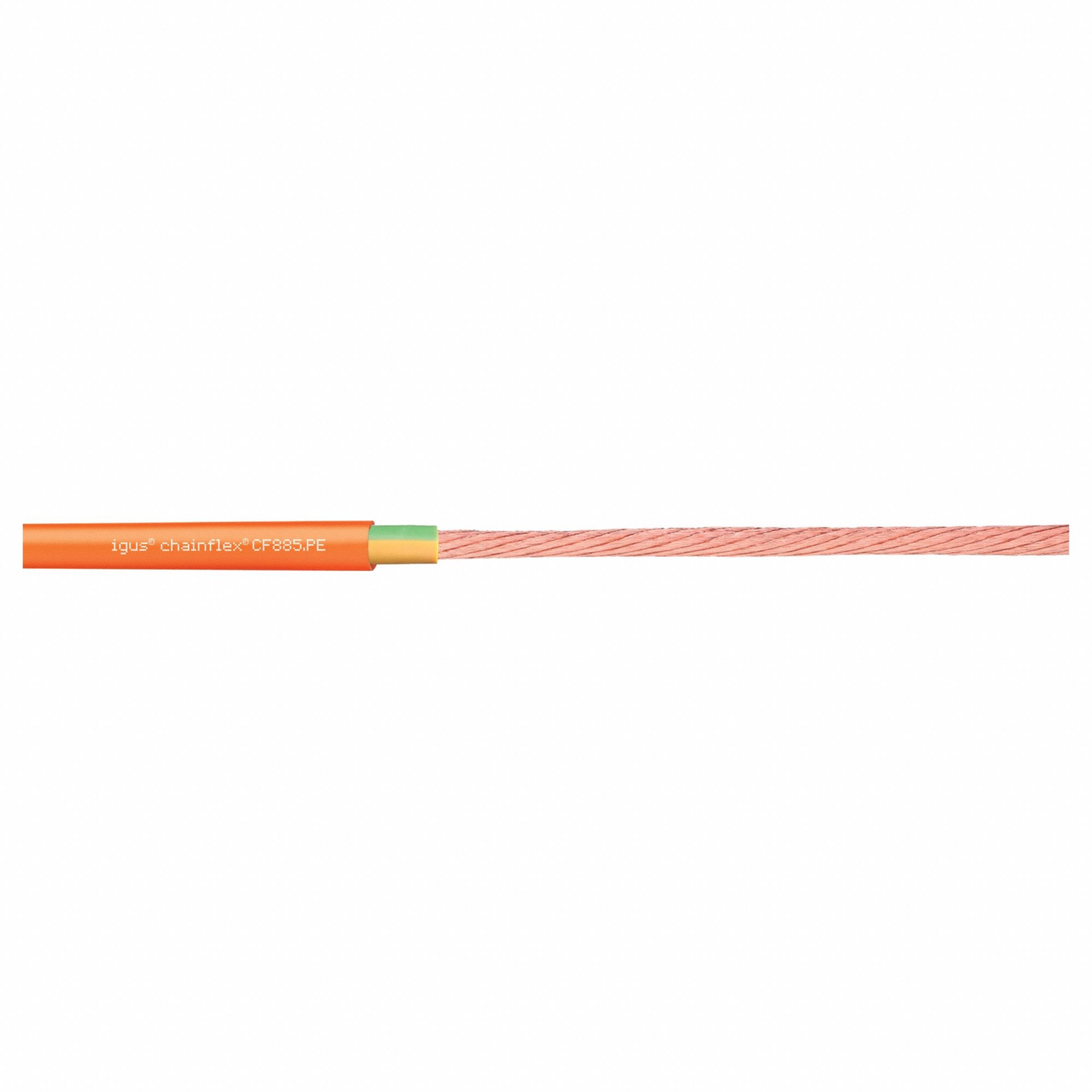

The CHAINFLEX CF885 Motor Cable (SKU 801M43) is a continuous flexing power cable with a single 4 AWG copper conductor and PVC jacket, rated 600 V. It includes a ground conductor and is flame retardant per IEC 60332-1-2. Minimum bend radius factors are 8 x OD for fixed installation, 12 x OD for flexible use, and 15 x OD for e-chain applications.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	CHAINFLEX
Series	Chainflex
Standards	IEC 60332-1-2
Cable Series	CF885
Product Type	Motor Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Flame Retardant
Conductor Configuration	Single
Manufacturer Part Number	CF885PE-250-01
Minimum Bend Radius Factor - Fixed	8 x OD
Minimum Bend Radius Factor - E-Chain	15 x OD
Minimum Bend Radius Factor - Flexible	12 x OD
