Chainflex 3G-OTH-46578 — Technical Specifications

Name: Chainflex 3G-OTH-46578 CHAINFLEX Motor Cable: 6 AWG, 1 Conductors, Order by the Foot, PVC Jacket, 600 V (MPN CF885PE-160-01). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 8 x OD; Minimum Bend Radius Factor - Flexible: 12 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 15 x OD; Resistance Properties: Oil and Grease Resistant; Standards: CSA.
Brand: Chainflex

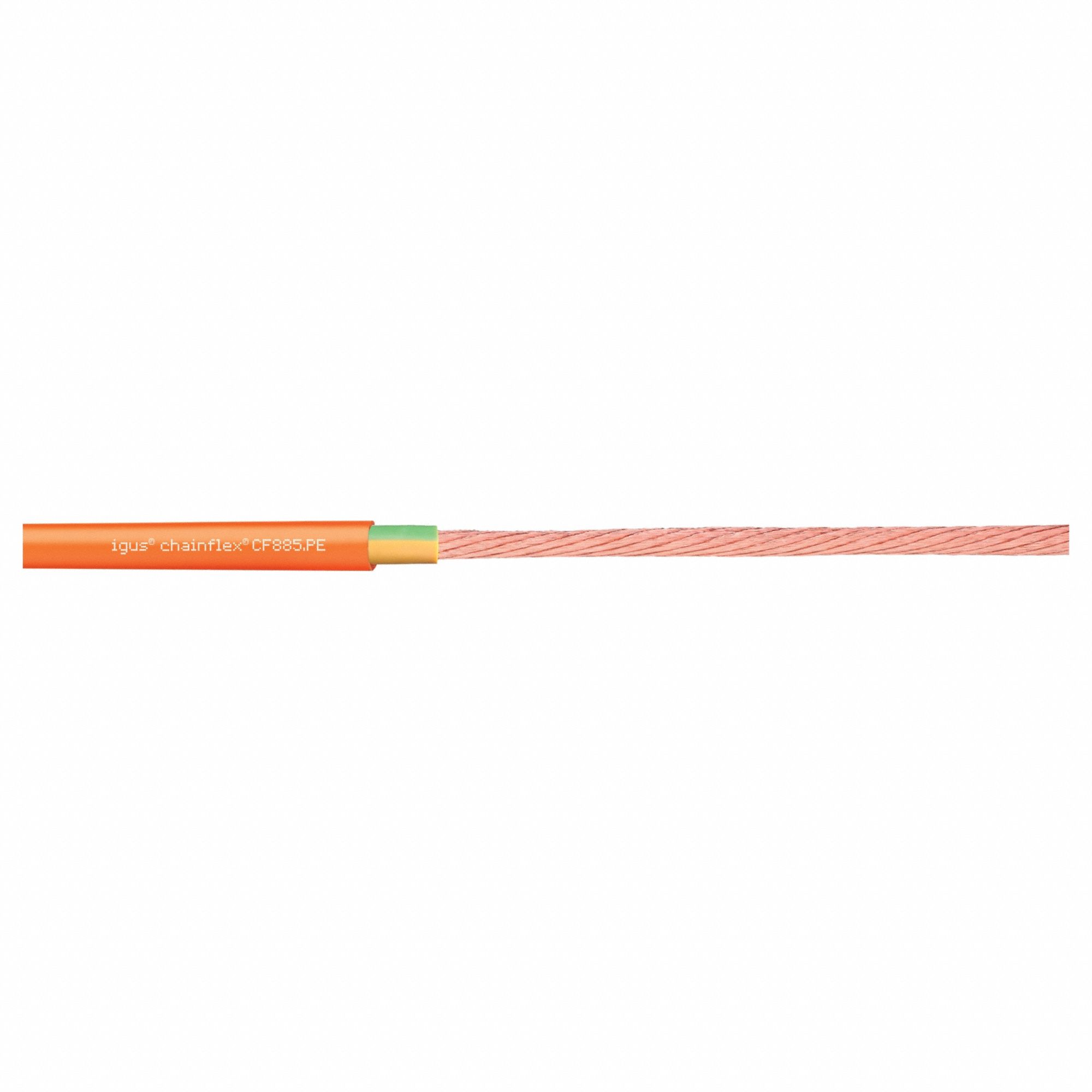

The CHAINFLEX CF885PE-160-01 is a continuous flexing power cable from the Chainflex series, designed as a single-conductor motor cable with 6 AWG copper wire and a PVC jacket rated for 600 V. It includes a ground conductor and is oil and grease resistant, meeting CSA standards. The cable offers minimum bend radius factors of 8 x OD for fixed installation, 12 x OD for flexible use, and 15 x OD for e-chain applications.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	CHAINFLEX
Series	Chainflex
Standards	CSA
Cable Series	CF885
Product Type	Motor Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Oil and Grease Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF885PE-160-01
Minimum Bend Radius Factor - Fixed	8 x OD
Minimum Bend Radius Factor - E-Chain	15 x OD
Minimum Bend Radius Factor - Flexible	12 x OD
