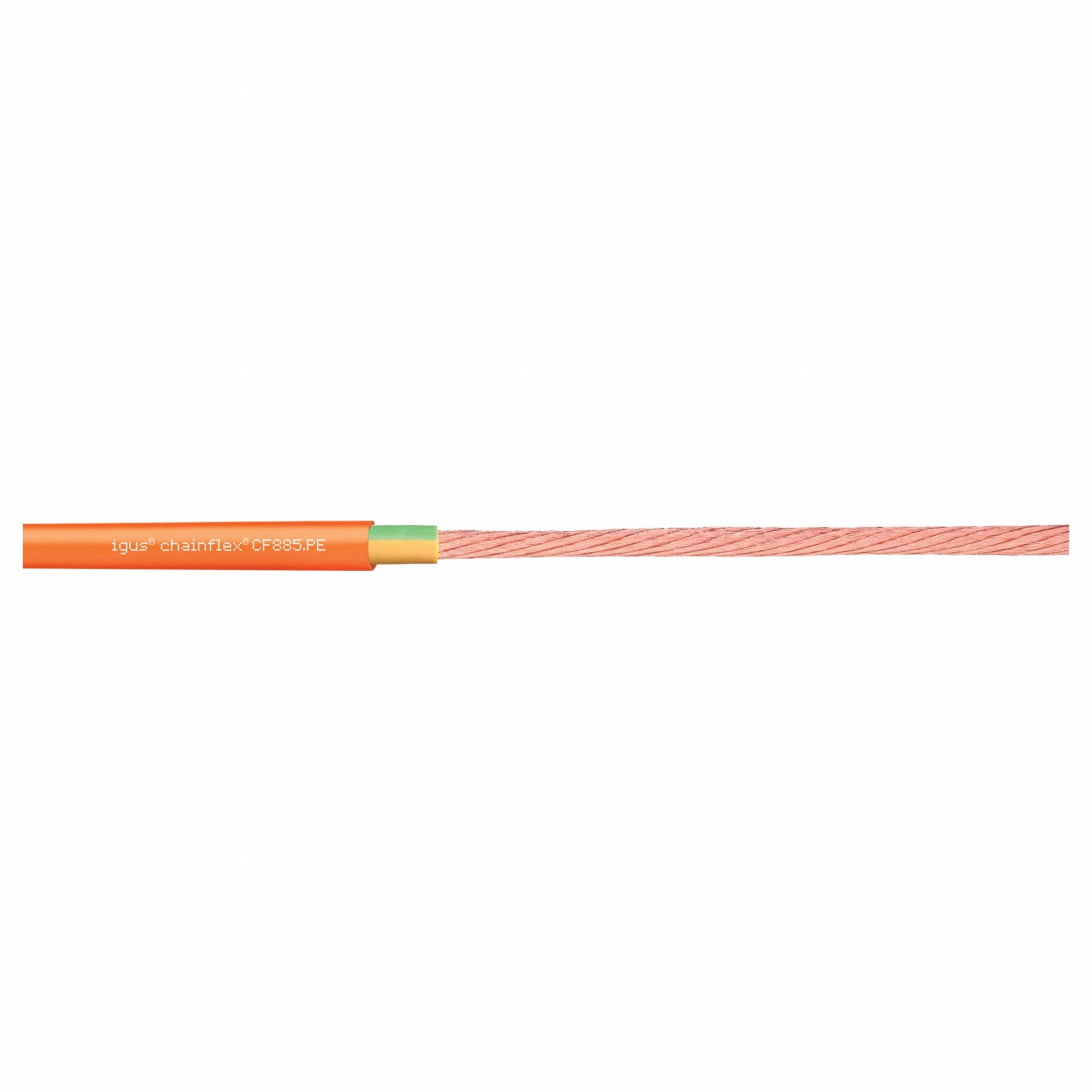

Chainflex 3G-OTH-47010 — Technical Specifications

Name: Chainflex 3G-OTH-47010 CHAINFLEX Motor Cable: 8 AWG, 1 Conductors, Order by the Foot, PVC Jacket, 600 V (MPN CF885-PE-10001). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 8 x OD; Minimum Bend Radius Factor - Flexible: 12 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 15 x OD; Resistance Properties: Oil and Grease Resistant; Standards: CSA.
Brand: Chainflex

The CHAINFLEX CF885-PE-10001 is a continuous flexing power cable, specifically a motor cable with a single 8 AWG copper conductor and PVC jacket rated at 600 V. It includes a ground conductor and is oil and grease resistant, with minimum bend radius factors of 8 x OD for fixed installation, 12 x OD for flexible use, and 15 x OD for e-chain applications. This CSA-certified cable is sold by the foot.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	CHAINFLEX
Series	Chainflex
Standards	CSA
Cable Series	CF885
Product Type	Motor Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Oil and Grease Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF885-PE-10001
Minimum Bend Radius Factor - Fixed	8 x OD
Minimum Bend Radius Factor - E-Chain	15 x OD
Minimum Bend Radius Factor - Flexible	12 x OD
