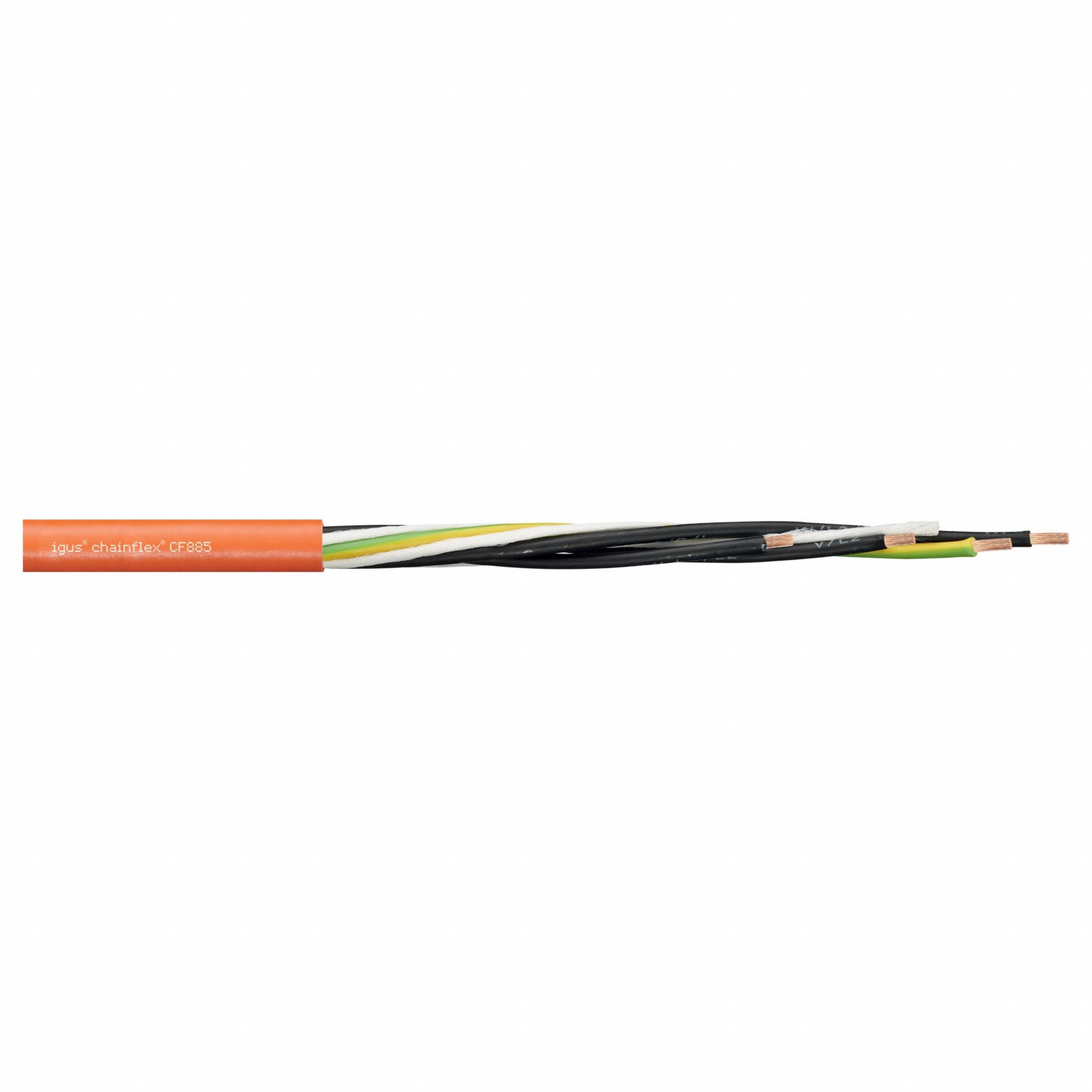

Chainflex 3G-OTH-47987 — Technical Specifications

Name: Chainflex 3G-OTH-47987 CHAINFLEX Motor Cable: 12 AWG, 4 Conductors, Order by the Foot, PVC Jacket, 1,000 V (MPN CF885-40-04). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 8 x OD; Minimum Bend Radius Factor - Flexible: 12 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 15 x OD; Resistance Properties: Flame Retardant; Standards: PV 3.10.7 Status 1992.
Brand: Chainflex

The CHAINFLEX Motor Cable: 12 AWG is a continuous flexing power cable from the Chainflex series, model CF885-40-04, featuring 4 conductors of single copper wire with a PVC jacket rated at 1,000 V. It includes a ground conductor and is flame retardant, with minimum bend radius factors of 8 x OD for fixed installation, 12 x OD for flexible use, and 15 x OD for e-chain applications, complying with PV 3.10.7 Status 1992 standards.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Order by the Foot, PVC Jacket, 1,000 V
Brand	CHAINFLEX
Series	Chainflex
Standards	PV 3.10.7 Status 1992
Conductors	4
Cable Series	CF885
Product Type	Motor Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Flame Retardant
Conductor Configuration	Single
Manufacturer Part Number	CF885-40-04
Minimum Bend Radius Factor - Fixed	8 x OD
Minimum Bend Radius Factor - E-Chain	15 x OD
Minimum Bend Radius Factor - Flexible	12 x OD
