Chainflex 3G-OTH-47976 — Technical Specifications

Name: Chainflex 3G-OTH-47976 CHAINFLEX Measuring System Cable: (5) 20 AWG (0.5)/Pr 20 AWG (0.25), Green, PVC Jacket, 50 V Volt (MPN CF884-022). Key specifications — Conductor Grouping: (5) 20 AWG/Pair 20 AWG; Includes Ground: No; Overall Length: Order by the Foot; Minimum Bend Radius Factor - Fixed: 8 x OD; Minimum Bend Radius Factor - Flexible: 12 x OD; Brand: CHAINFLEX.
Brand: Chainflex

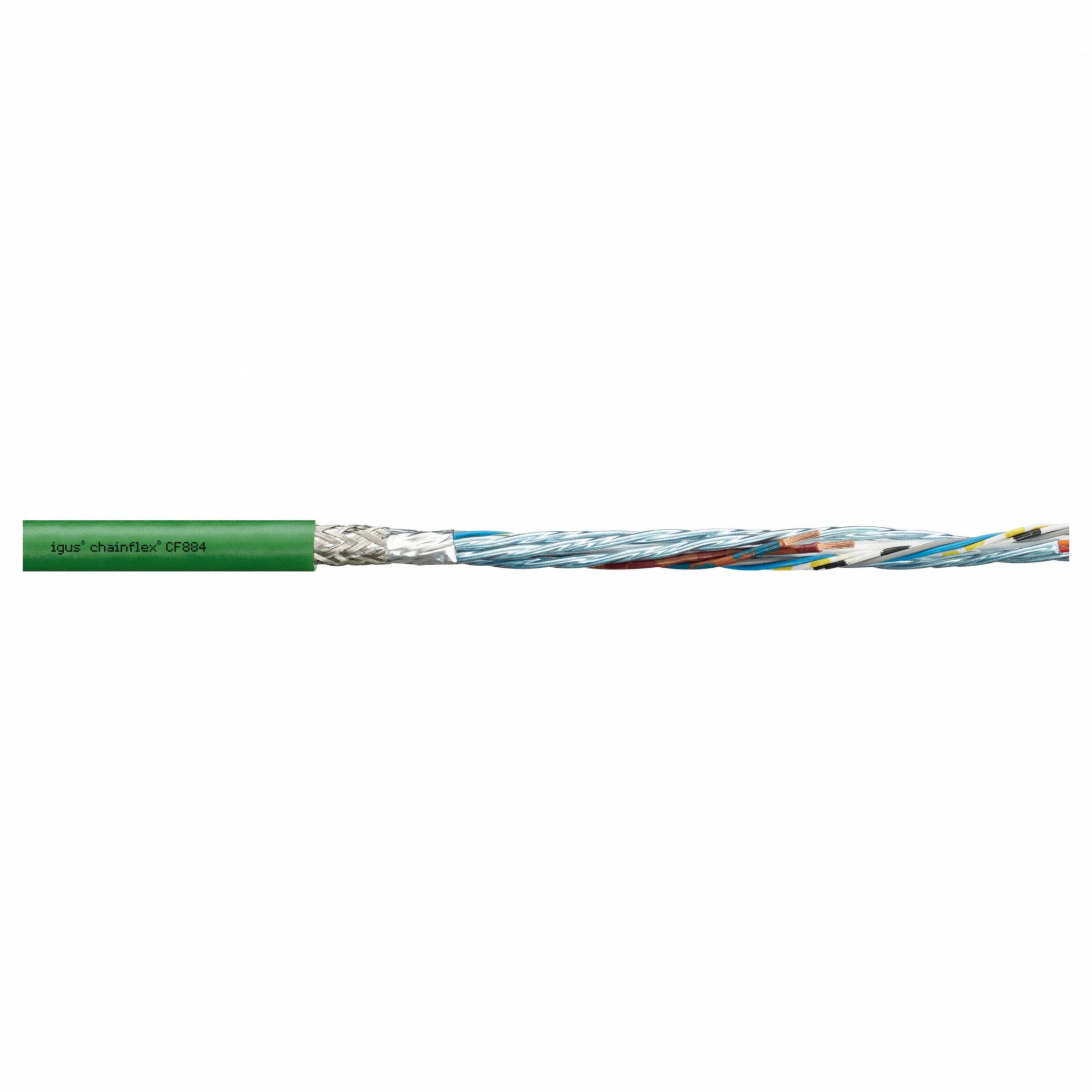

The CHAINFLEX Measuring System Cable (SKU 801M24, MPN CF884-022) is a servo motor feedback cable with a conductor grouping of (5) 20 AWG/Pair 20 AWG, a green PVC jacket, and a 50 V rating. It is ordered by the foot, does not include a ground, and has a minimum bend radius factor of 8 x OD for fixed installations and 12 x OD for flexible applications.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Green, PVC Jacket
Volt	50 V
Brand	CHAINFLEX
Overall Length	Order by the Foot
Includes Ground	No
Conductor Grouping	(5) 20 AWG/Pair 20 AWG
Manufacturer Part Number	CF884-022
Minimum Bend Radius Factor - Fixed	8 x OD
Minimum Bend Radius Factor - Flexible	12 x OD
