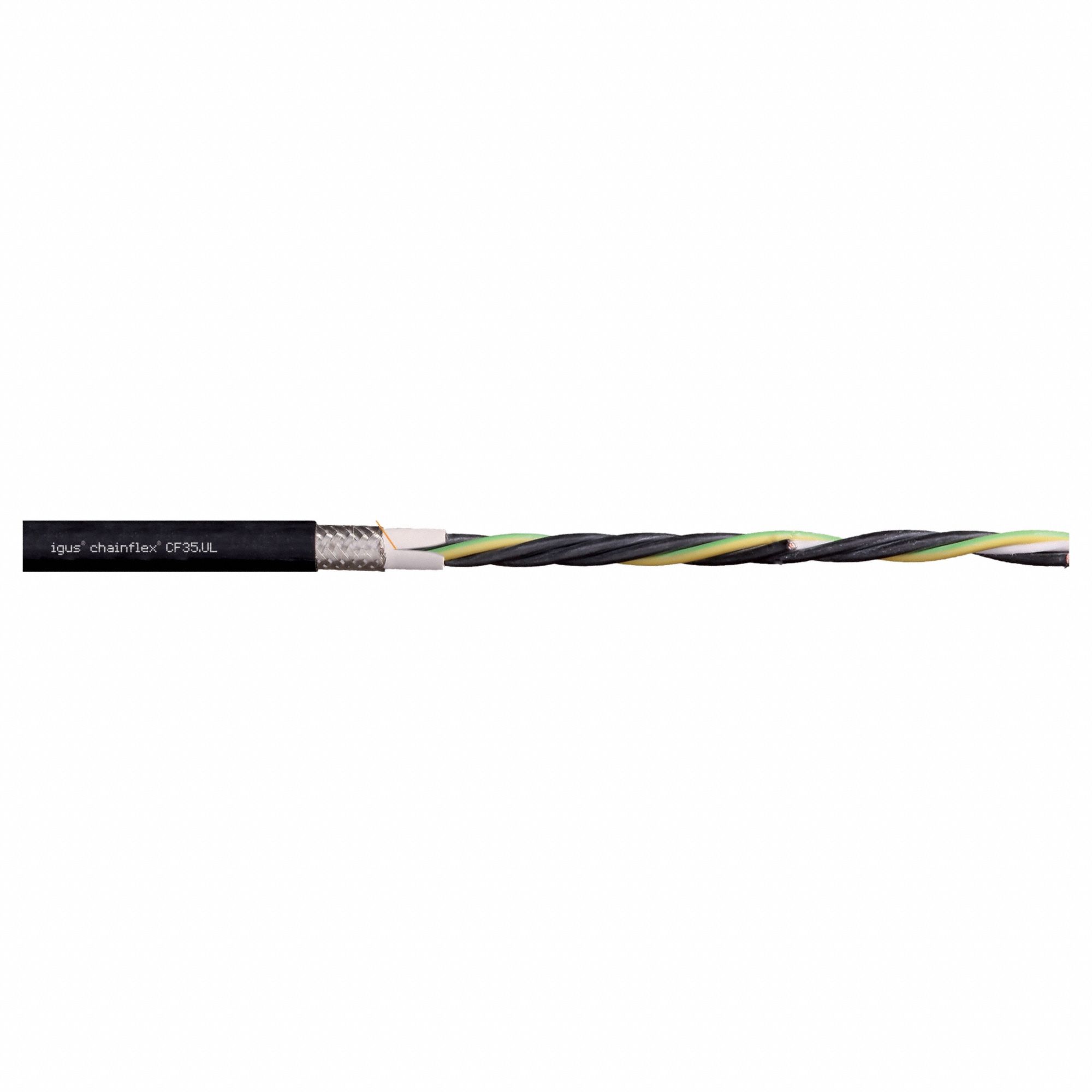

Chainflex 3G-OTH-46294 — Technical Specifications

Name: Chainflex 3G-OTH-46294 CHAINFLEX Motor Cable: 18 AWG, 4 Conductors, Order by the Foot, TPR Jacket, 1,000 V (MPN CF35-07-04). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 7.5 x OD; Resistance Properties: Oil and Grease Resistant; Standards: CE 2014/35/EU.
Brand: Chainflex

The CHAINFLEX Motor Cable: 18 AWG is a continuous flexing power cable for VFDs from the Chainflex CF35-UL series. This 4-conductor, single-configuration copper cable includes a ground conductor, features a TPR jacket, and is rated at 1,000 V. It is oil and grease resistant, with minimum bend radius factors of 4 x OD (fixed), 6 x OD (flexible), and 7.5 x OD (e-chain), and complies with CE 2014/35/EU.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Order by the Foot, TPR Jacket, 1,000 V
Brand	CHAINFLEX
Series	Chainflex
Standards	CE 2014/35/EU
Conductors	4
Cable Series	CF35-UL
Product Type	Motor Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Oil and Grease Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF35-07-04
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	7.5 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
