Chainflex 3G-OTH-47292 — Technical Specifications

Name: Chainflex 3G-OTH-47292 CHAINFLEX Motor Cable: 8 AWG, 5 Conductors, Order by the Foot, TPR Jacket, 1,000 V (MPN CF34-100-05). Key specifications — Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 7.5 x OD; Resistance Properties: UV/Sunlight Resistant; Standards: VDW DESINA; Product Type: Motor Cable.
Brand: Chainflex

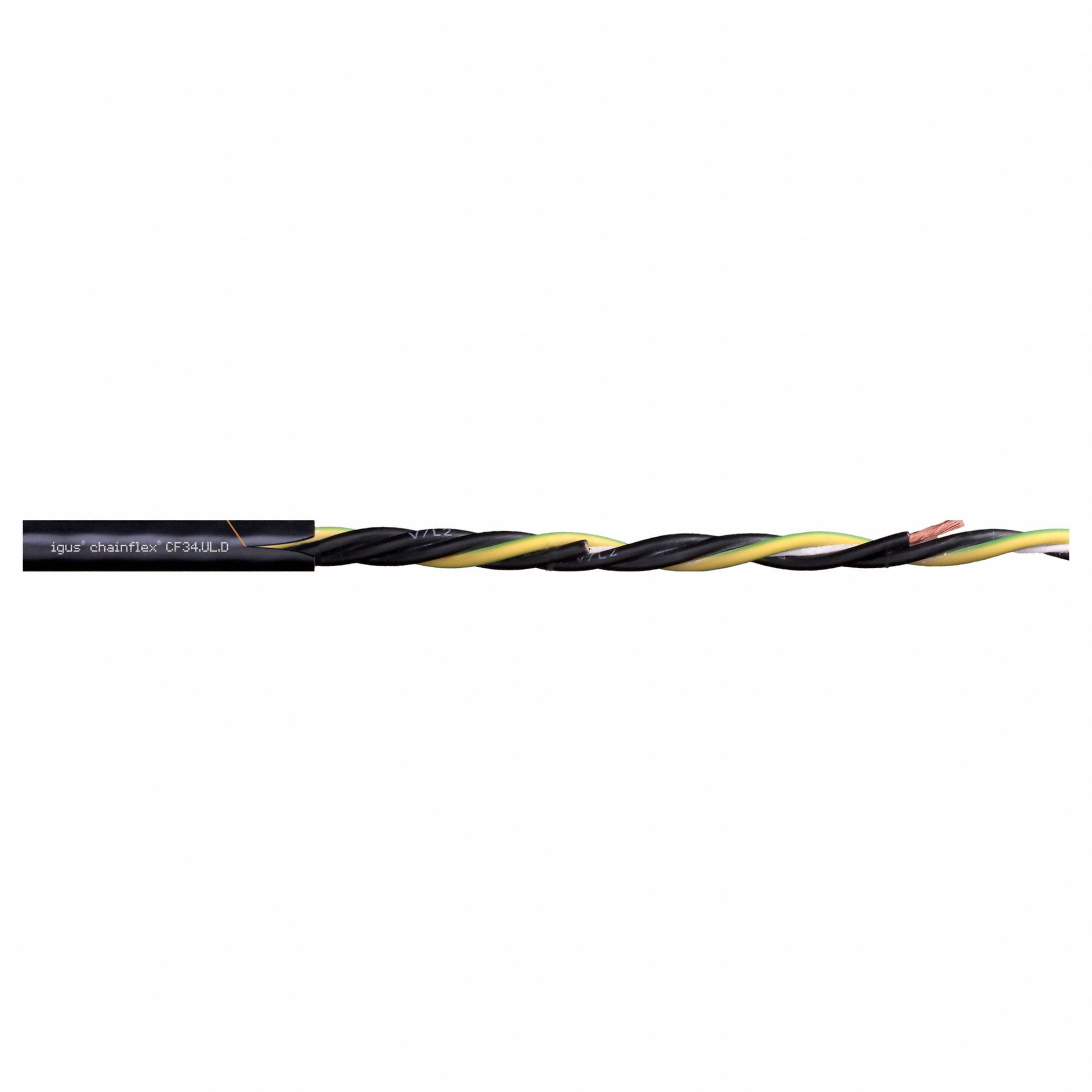

The CHAINFLEX Motor Cable: 8 AWG (SKU 801M08) is a continuous flexing power cable from the Chainflex series, model CF34-UL. This 5-conductor, single-conductor-configuration motor cable includes a ground conductor, features a TPR jacket, and is rated for 1,000 V. It meets VDW DESINA standards, is UV/sunlight resistant, and has minimum bend radius factors of 4 x OD (fixed), 6 x OD (flexible), and 7.5 x OD (e-chain).

View Product & Quote

Technical Specifications

Parameter	Value
Type	Order by the Foot, TPR Jacket, 1,000 V
Brand	CHAINFLEX
Series	Chainflex
Standards	VDW DESINA
Conductors	5
Cable Series	CF34-UL
Product Type	Motor Cable
Includes Ground	Yes
Resistance Properties	UV/Sunlight Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF34-100-05
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	7.5 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
