Chainflex 3G-OTH-47838 — Technical Specifications

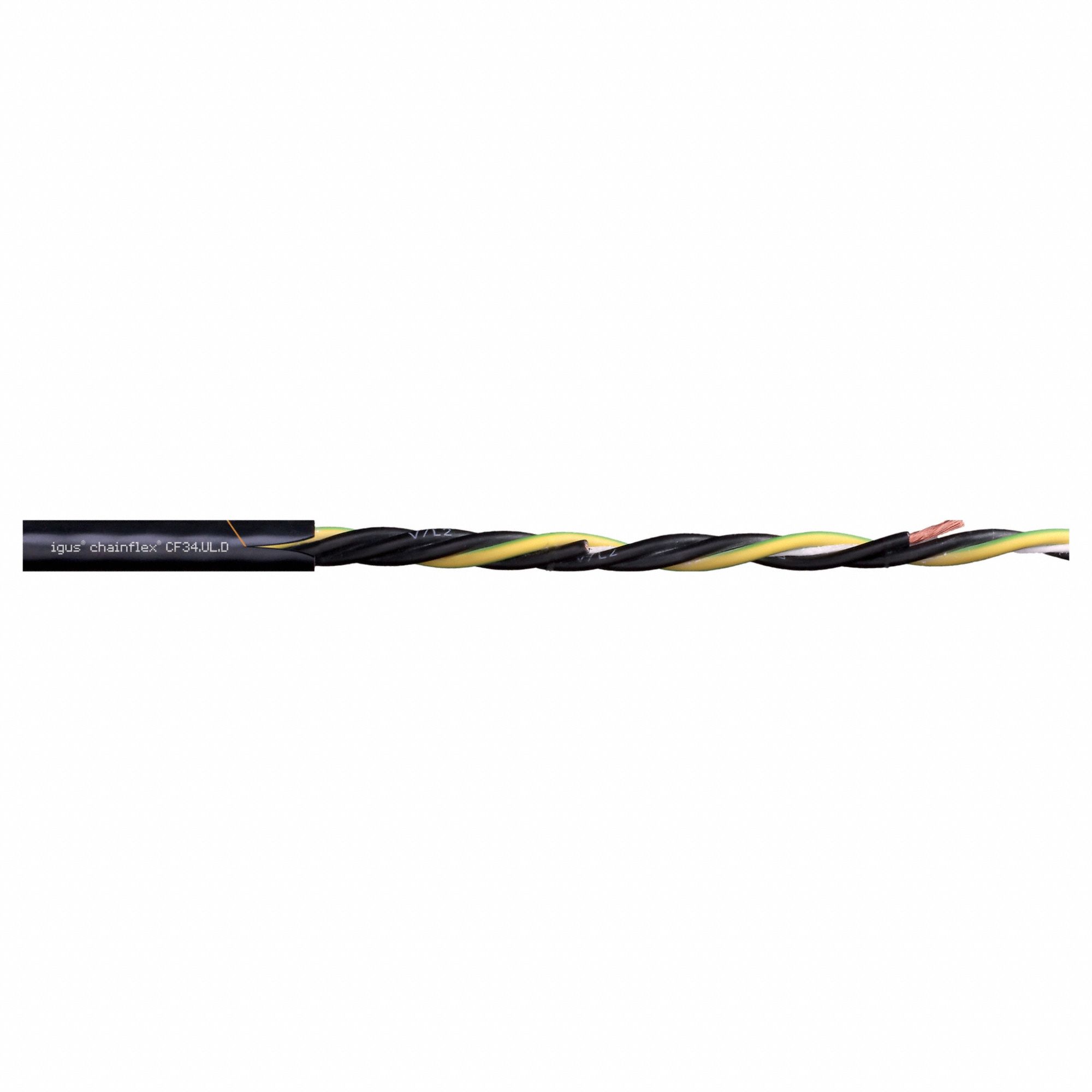

The CHAINFLEX Motor Cable: 8 AWG is a continuous flexing power cable from the CF34-UL series, designed for motor applications. This 4-conductor cable features a TPR jacket, is rated for 1,000 V, and meets VDW DESINA standards. It offers oil and grease resistance with minimum bend radius factors of 4 x OD for fixed installation, 6 x OD for flexible use, and 7.5 x OD for e-chain applications.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Order by the Foot, TPR Jacket, 1,000 V |
| Brand | CHAINFLEX |
| Standards | VDW DESINA |
| Conductors | 4 |
| Cable Series | CF34-UL |
| Product Type | Motor Cable |
| Resistance Properties | Oil and Grease Resistant |
| Manufacturer Part Number | CF34-100-04OPE |
| Minimum Bend Radius Factor - Fixed | 4 x OD |
| Minimum Bend Radius Factor - E-Chain | 7.5 x OD |
| Minimum Bend Radius Factor - Flexible | 6 x OD |
