Chainflex 3G-OTH-45891 — Technical Specifications

Name: Chainflex 3G-OTH-45891 CHAINFLEX Motor Cable: 1 AWG, 4 Conductors, Order by the Foot, PVC Jacket, 1,000 V (MPN CF31-500-04). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 7.5 x OD; Resistance Properties: Flame Retardant; Standards: FT-1.
Brand: Chainflex

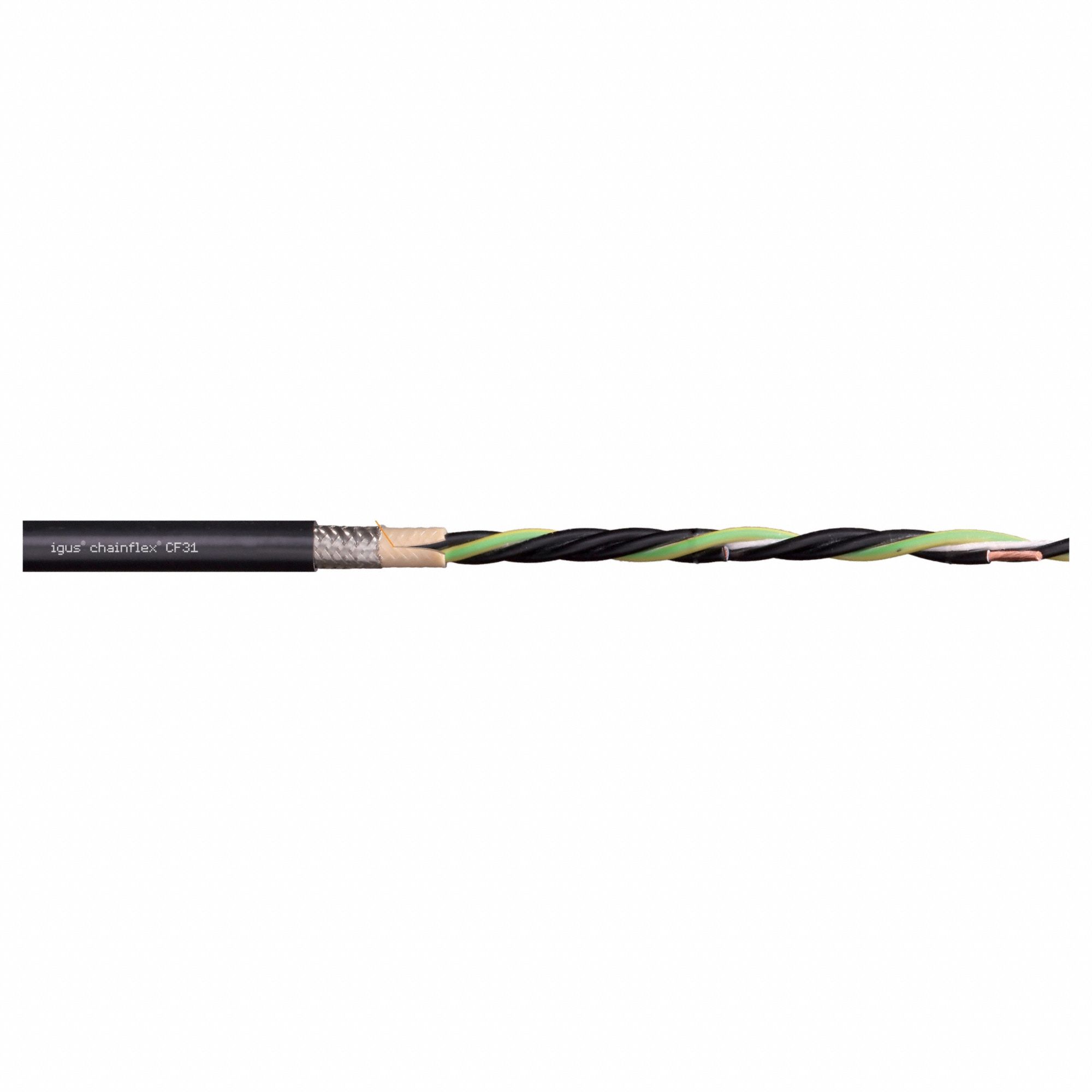

The CHAINFLEX Motor Cable: 1 AWG (SKU 801M03, MPN CF31-500-04) is a continuous flexing power cable for VFDs from the Chainflex CF31 series. It features 4 copper conductors with a single conductor configuration, includes a ground, and has a PVC jacket rated for 1,000 V. The cable meets FT-1 flame retardant standards and offers minimum bend radius factors of 4 x OD (fixed), 6 x OD (flexible), and 7.5 x OD (e-chain).

View Product & Quote

Technical Specifications

Parameter	Value
Type	Order by the Foot, PVC Jacket, 1,000 V
Brand	CHAINFLEX
Series	Chainflex
Standards	FT-1
Conductors	4
Cable Series	CF31
Product Type	Motor Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Flame Retardant
Conductor Configuration	Single
Manufacturer Part Number	CF31-500-04
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	7.5 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
