Chainflex 3G-OTH-45199 — Technical Specifications

Name: Chainflex 3G-OTH-45199 CHAINFLEX Motor Cable: 14 AWG, 1 Conductors, Order by the Foot, TPR Jacket, 1,000 V (MPN CF310-25-01). Key specifications — Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 7.5 x OD; Resistance Properties: UV/Sunlight Resistant; Standards: TC RU C-DE.ME77.B.01255; Product Type: Motor Cable.
Brand: Chainflex

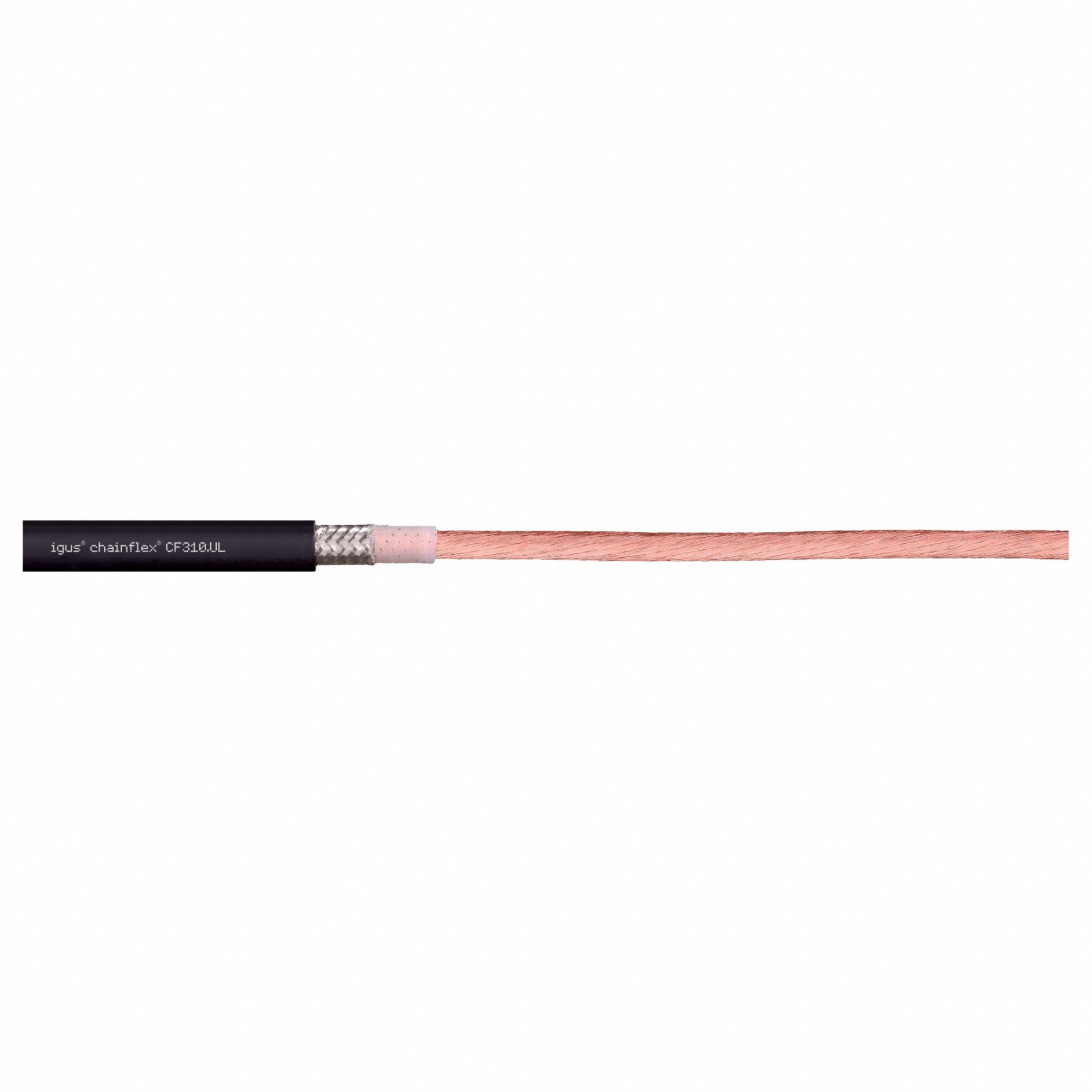

The CHAINFLEX CF310-UL Motor Cable (14 AWG, SKU 801LZ3) is a single-conductor continuous flexing power cable for VFDs, featuring a TPR jacket and rated at 1,000 V. It includes a ground conductor and is UV/sunlight resistant, with minimum bend radius factors of 4 x OD for fixed, 6 x OD for flexible, and 7.5 x OD for e-chain applications. This cable complies with standard TC RU C-DE.ME77.B.01255 and is sold by the foot.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Order by the Foot, TPR Jacket, 1,000 V
Brand	CHAINFLEX
Series	Chainflex
Standards	TC RU C-DE.ME77.B.01255
Conductors	1
Cable Series	CF310-UL
Product Type	Motor Cable
Includes Ground	Yes
Resistance Properties	UV/Sunlight Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF310-25-01
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	7.5 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
