Chainflex 3G-OTH-45437 — Technical Specifications

Name: Chainflex 3G-OTH-45437 CHAINFLEX Motor Cable: 12 AWG, 5 Conductors, Order by the Foot, PVC Jacket, 1,000 V (MPN CF30-40-05). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 7.5 x OD; Resistance Properties: Oil and Grease Resistant; Standards: CSA.
Brand: Chainflex

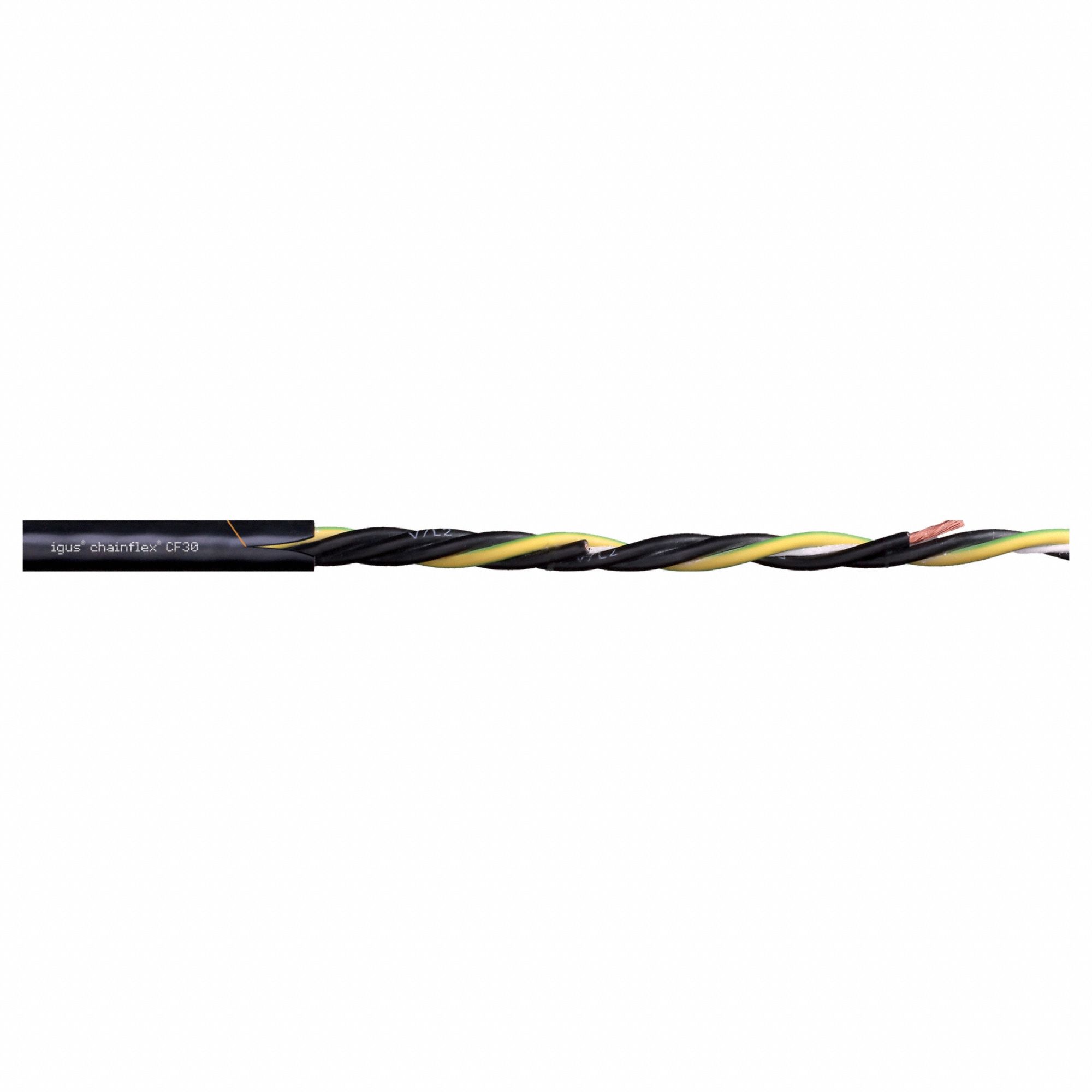

The CHAINFLEX Motor Cable: 12 AWG (SKU 801LY9, MPN CF30-40-05) is a continuous flexing power cable for VFDs from the Chainflex CF30 series. It features 5 copper conductors with a single conductor configuration, includes a ground, and is rated at 1,000 V with a PVC jacket. The cable is oil and grease resistant, CSA certified, and has minimum bend radius factors of 4 x OD for fixed, 6 x OD for flexible, and 7.5 x OD for e-chain applications.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Order by the Foot, PVC Jacket, 1,000 V
Brand	CHAINFLEX
Series	Chainflex
Standards	CSA
Conductors	5
Cable Series	CF30
Product Type	Motor Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Oil and Grease Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF30-40-05
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	7.5 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
