Chainflex 3G-OTH-50325 — Technical Specifications

Name: Chainflex 3G-OTH-50325 CHAINFLEX Servo Motor Cable: Shielded Twisted Pr 16 AWG (1.5)/ (4) 12 AWG (4.0), Orange, TPR Jacket (MPN CF29-40150201D). Key specifications — Conductor Grouping: Shielded Twisted Pair 16 AWG/ (4) 12 AWG; Includes Ground: Yes; Overall Length: Order by the Foot; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 5 x OD; Brand: CHAINFLEX.
Brand: Chainflex

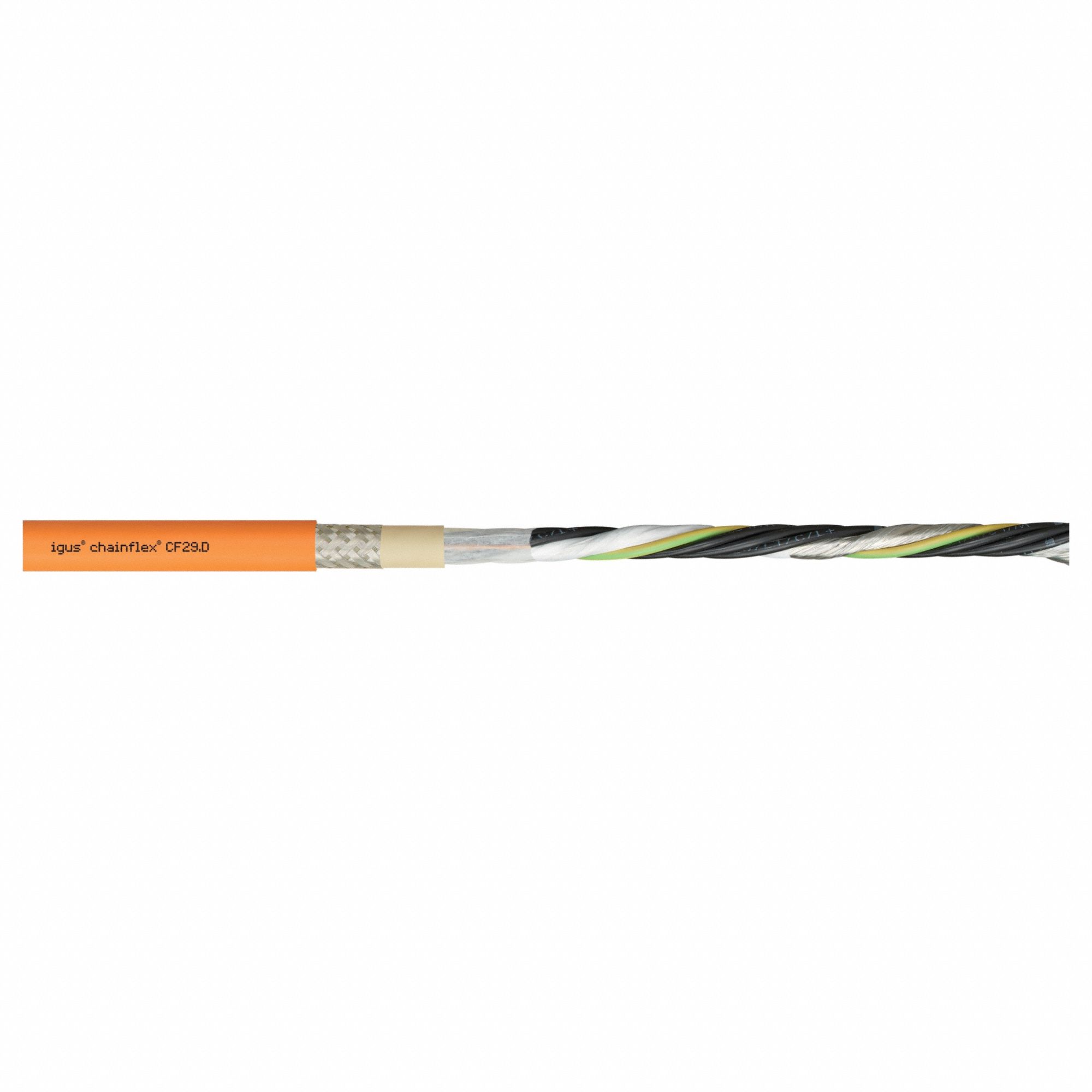

The CHAINFLEX Servo Motor Power Cable (MPN CF29-40150201D) is a shielded twisted-pair cable with a conductor grouping of Shielded Twisted Pair 16 AWG/ (4) 12 AWG and includes a ground. It features a TPR jacket, a minimum bend radius factor of 4 x OD for fixed installation and 5 x OD for flexible use, and is sold by the foot.

View Product & Quote

Technical Specifications

Parameter	Value
Type	(4) 12 AWG (4.0), Orange, TPR Jacket
Brand	CHAINFLEX
Overall Length	Order by the Foot
Includes Ground	Yes
Conductor Grouping	Shielded Twisted Pair 16 AWG/ (4) 12 AWG
Manufacturer Part Number	CF29-40150201D
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - Flexible	5 x OD
