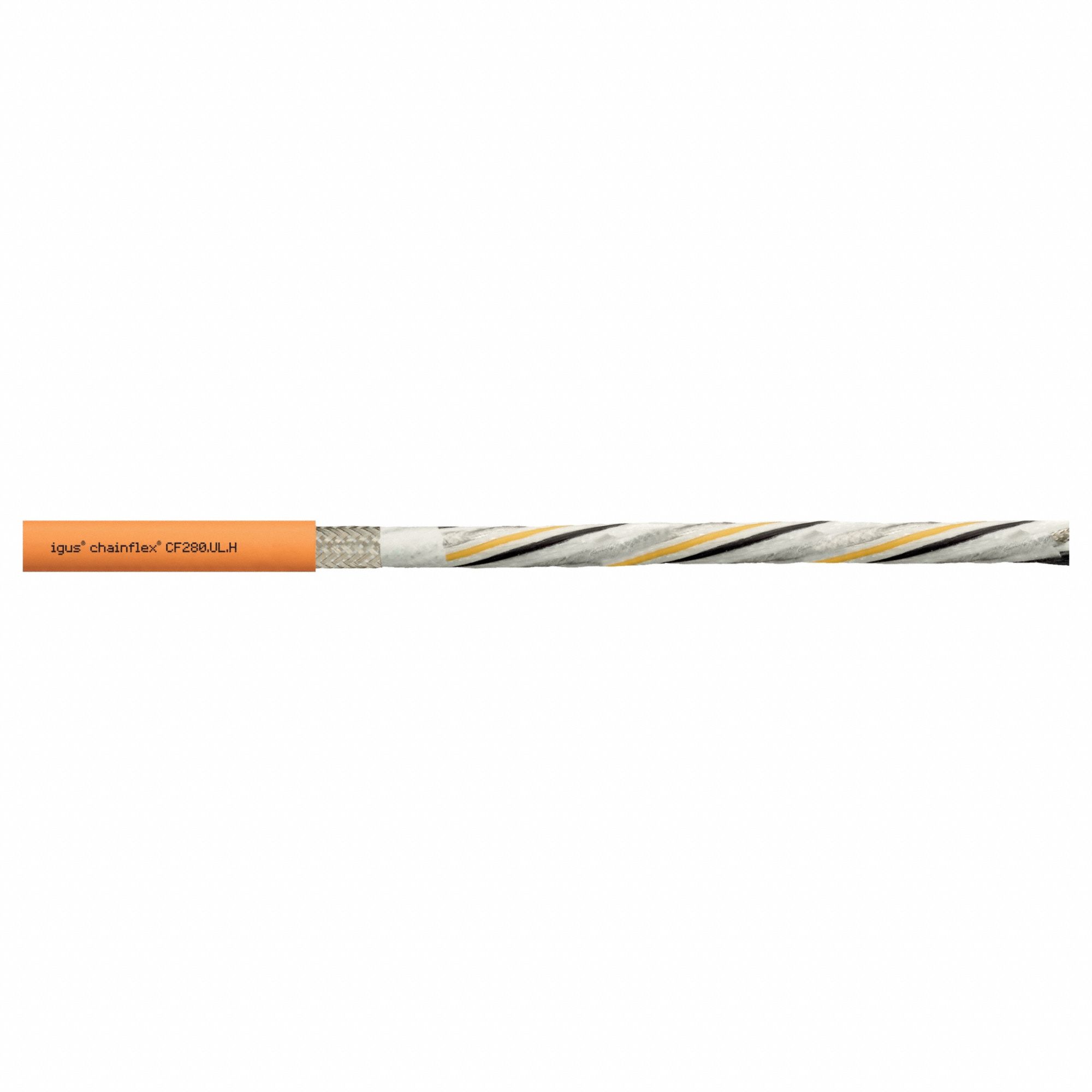

Chainflex 3G-OTH-50603 — Technical Specifications

Name: Chainflex 3G-OTH-50603 CHAINFLEX Servo Motor Cable: Orange, PUR Jacket, 1,000 V Volt (MPN CF280ULH301074). Key specifications — Conductor Grouping: (4) 18 AWG/Shielded Twisted Pair 20 AWG/Shielded Twisted Four Pair 26 AWG; Includes Ground: Yes; Overall Length: Order by the Foot; Minimum Bend Radius Factor - Fixed: 5 x OD; Minimum Bend Radius Factor - Flexible: 8 x OD; Brand: CHAINFLEX.
Brand: Chainflex

The CHAINFLEX Servo Motor Power Cable (MPN CF280ULH301074) is a servo motor power cable with a PUR jacket and 1,000 V voltage rating. It features conductor grouping of (4) 18 AWG/shielded twisted pair 20 AWG/shielded twisted four pair 26 AWG, includes a ground, and has a minimum bend radius factor of 5 x OD for fixed and 8 x OD for flexible applications. Overall length is ordered by the foot.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	CHAINFLEX
Overall Length	Order by the Foot
Includes Ground	Yes
Conductor Grouping	(4) 18 AWG/Shielded Twisted Pair 20 AWG/Shielded Twisted Four Pair 26 AWG
Manufacturer Part Number	CF280ULH301074
Minimum Bend Radius Factor - Fixed	5 x OD
Minimum Bend Radius Factor - Flexible	8 x OD
