Chainflex 3G-OTH-50503 — Technical Specifications

Name: Chainflex 3G-OTH-50503 CHAINFLEX Servo Motor Cable: Orange, PUR Jacket, 1,000 V Volt (MPN CF280ULH100074). Key specifications — Conductor Grouping: (4) 18 AWG/Shielded Twisted Pair 22 AWG/Shielded Twisted Pair 22 AWG; Includes Ground: Yes; Overall Length: Order by the Foot; Minimum Bend Radius Factor - Fixed: 5 x OD; Minimum Bend Radius Factor - Flexible: 8 x OD; Brand: CHAINFLEX.
Brand: Chainflex

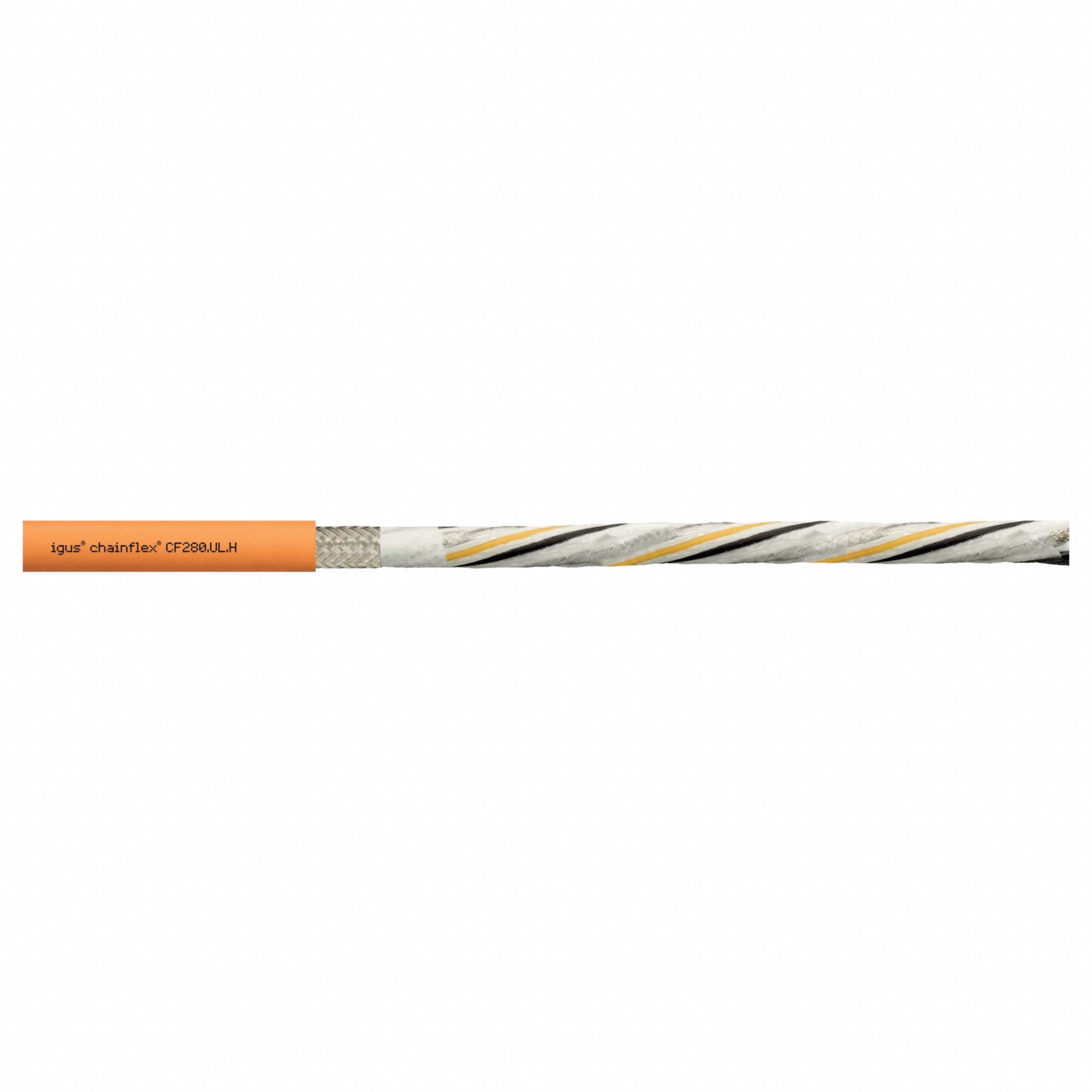

The CHAINFLEX Servo Motor Power Cable (MPN CF280ULH100074) is a 1,000 V rated cable with a PUR jacket and orange outer sheath. It features a conductor grouping of (4) 18 AWG with shielded twisted pairs of 22 AWG and includes a ground conductor. The cable is available by the foot and has a minimum bend radius factor of 5 x OD for fixed installation and 8 x OD for flexible applications.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	CHAINFLEX
Overall Length	Order by the Foot
Includes Ground	Yes
Conductor Grouping	(4) 18 AWG/Shielded Twisted Pair 22 AWG/Shielded Twisted Pair 22 AWG
Manufacturer Part Number	CF280ULH100074
Minimum Bend Radius Factor - Fixed	5 x OD
Minimum Bend Radius Factor - Flexible	8 x OD
