Chainflex 3G-OTH-47232 — Technical Specifications

Name: Chainflex 3G-OTH-47232 CHAINFLEX VFD Servo Motor Cable: (4) 6 AWG (16.0)/Shielded Twisted Pr 16 AWG (1.5), Orange (MPN CF27-16015021D). Key specifications — Conductor Grouping: (4) 6 AWG/Shielded Twisted Pair 16 AWG; Includes Ground: Yes; Overall Length: Order by the Foot; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Brand: CHAINFLEX.
Brand: Chainflex

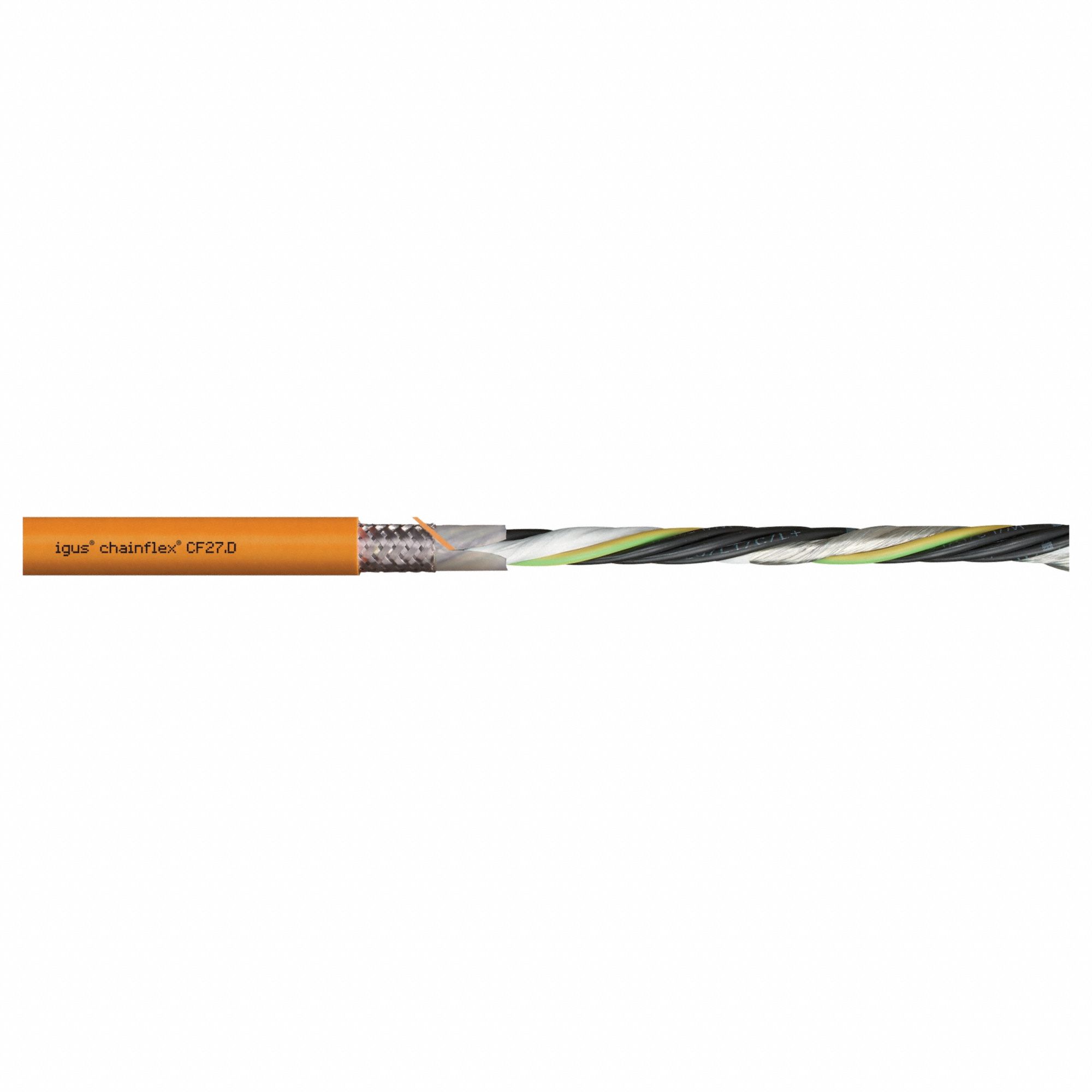

The CHAINFLEX VFD Servo Motor Cable (SKU 801LR5) is a servo VFD power cable featuring a conductor grouping of (4) 6 AWG with a shielded twisted pair of 16 AWG and includes a ground. It is available by the foot and has a minimum bend radius factor of 4 x OD for fixed installation and 6 x OD for flexible installation.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Twisted Pr 16 AWG (1.5), Orange
Brand	CHAINFLEX
Overall Length	Order by the Foot
Includes Ground	Yes
Conductor Grouping	(4) 6 AWG/Shielded Twisted Pair 16 AWG
Manufacturer Part Number	CF27-16015021D
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
