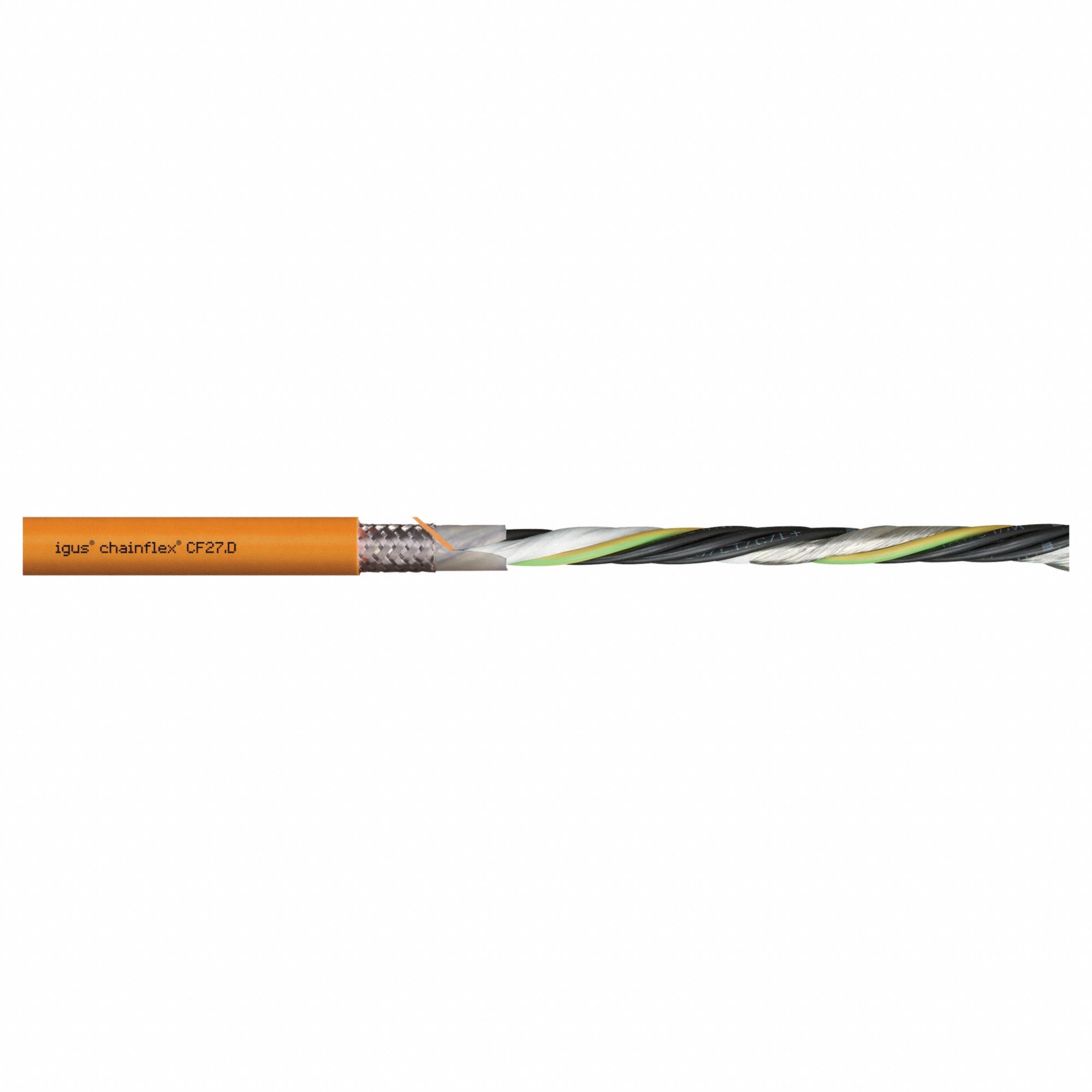

Chainflex 3G-OTH-47000 — Technical Specifications

Name: Chainflex 3G-OTH-47000 CHAINFLEX VFD Servo Motor Cable: (4) 16 AWG (1.5)/(4) Shielded 20 AWG (0.5), Orange, PUR Jacket (MPN CF27-15-05-04D). Key specifications — Conductor Grouping: (4) 16 AWG/(4) Shielded 20 AWG; Includes Ground: Yes; Overall Length: Order by the Foot; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Brand: CHAINFLEX.
Brand: Chainflex

The CHAINFLEX VFD Servo Motor Cable (SKU 801LR1) is a servo VFD power cable featuring a conductor grouping of (4) 16 AWG/(4) shielded 20 AWG with an included ground. It has a minimum bend radius factor of 4 x OD for fixed installation and 6 x OD for flexible applications, and is available by the foot.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Orange, PUR Jacket
Brand	CHAINFLEX
Overall Length	Order by the Foot
Includes Ground	Yes
Conductor Grouping	(4) 16 AWG/(4) Shielded 20 AWG
Manufacturer Part Number	CF27-15-05-04D
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
