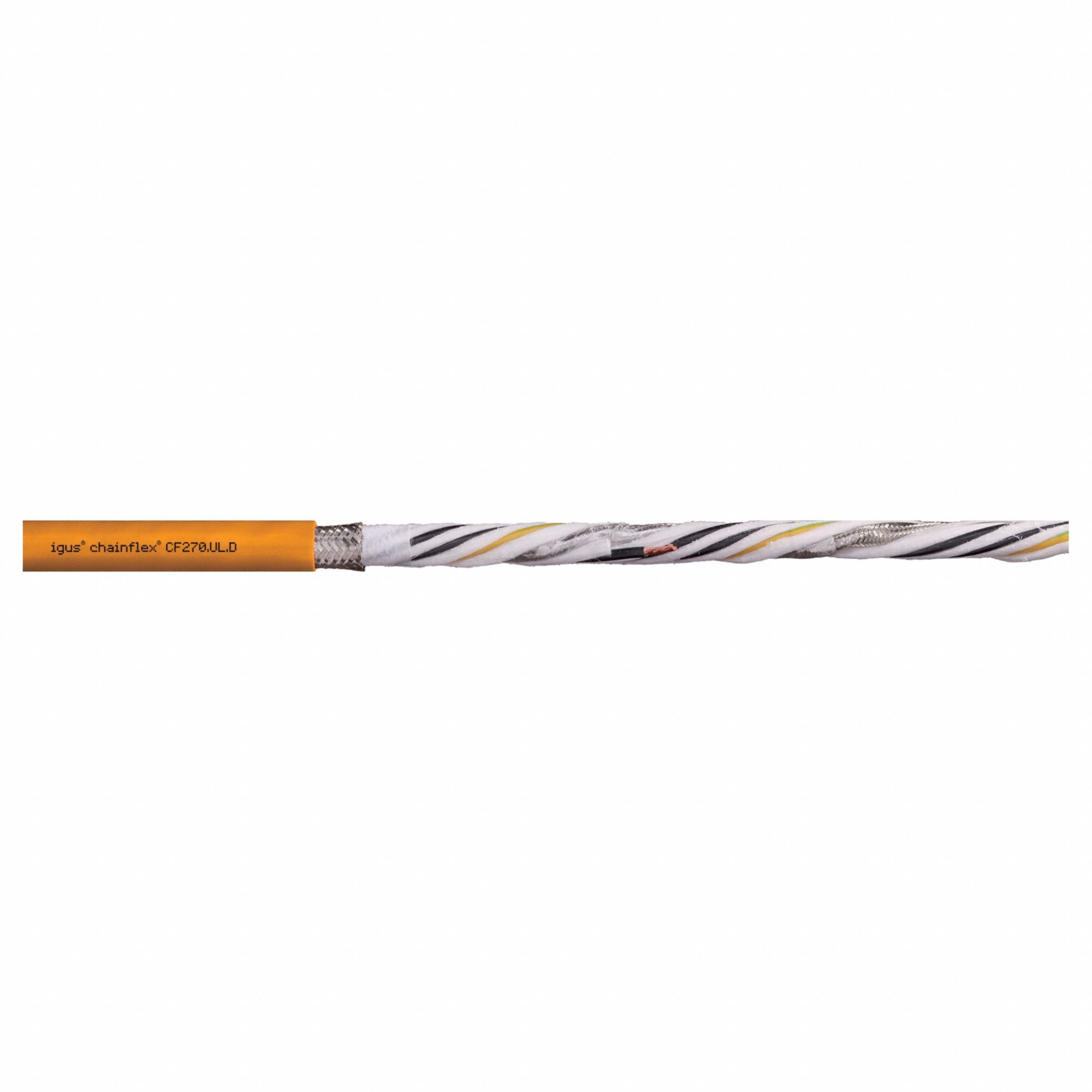

Chainflex 3G-OTH-47416 — Technical Specifications

Name: Chainflex 3G-OTH-47416 CHAINFLEX VFD Servo Motor Cable: Shielded Twisted Pr 16 AWG (1.5)/ (4) 4 AWG (25.0), Orange (MPN CF270UL2501521). Key specifications — Conductor Grouping: Shielded Twisted Pair 16 AWG/ (4) 4 AWG; Includes Ground: Yes; Overall Length: Order by the Foot; Minimum Bend Radius Factor - Fixed: 5 x OD; Minimum Bend Radius Factor - Flexible: 8 x OD; Brand: CHAINFLEX.
Brand: Chainflex

The CHAINFLEX VFD Servo Motor Cable is a shielded twisted-pair servo VFD power cable with a conductor grouping of Shielded Twisted Pair 16 AWG and (4) 4 AWG, includes a ground, and is available by the foot. It features a minimum bend radius factor of 5 x OD for fixed installation and 8 x OD for flexible applications.

View Product & Quote

Technical Specifications

Parameter	Value
Type	(1.5)/ (4) 4 AWG (25.0), Orange
Brand	CHAINFLEX
Overall Length	Order by the Foot
Includes Ground	Yes
Conductor Grouping	Shielded Twisted Pair 16 AWG/ (4) 4 AWG
Manufacturer Part Number	CF270UL2501521
Minimum Bend Radius Factor - Fixed	5 x OD
Minimum Bend Radius Factor - Flexible	8 x OD
