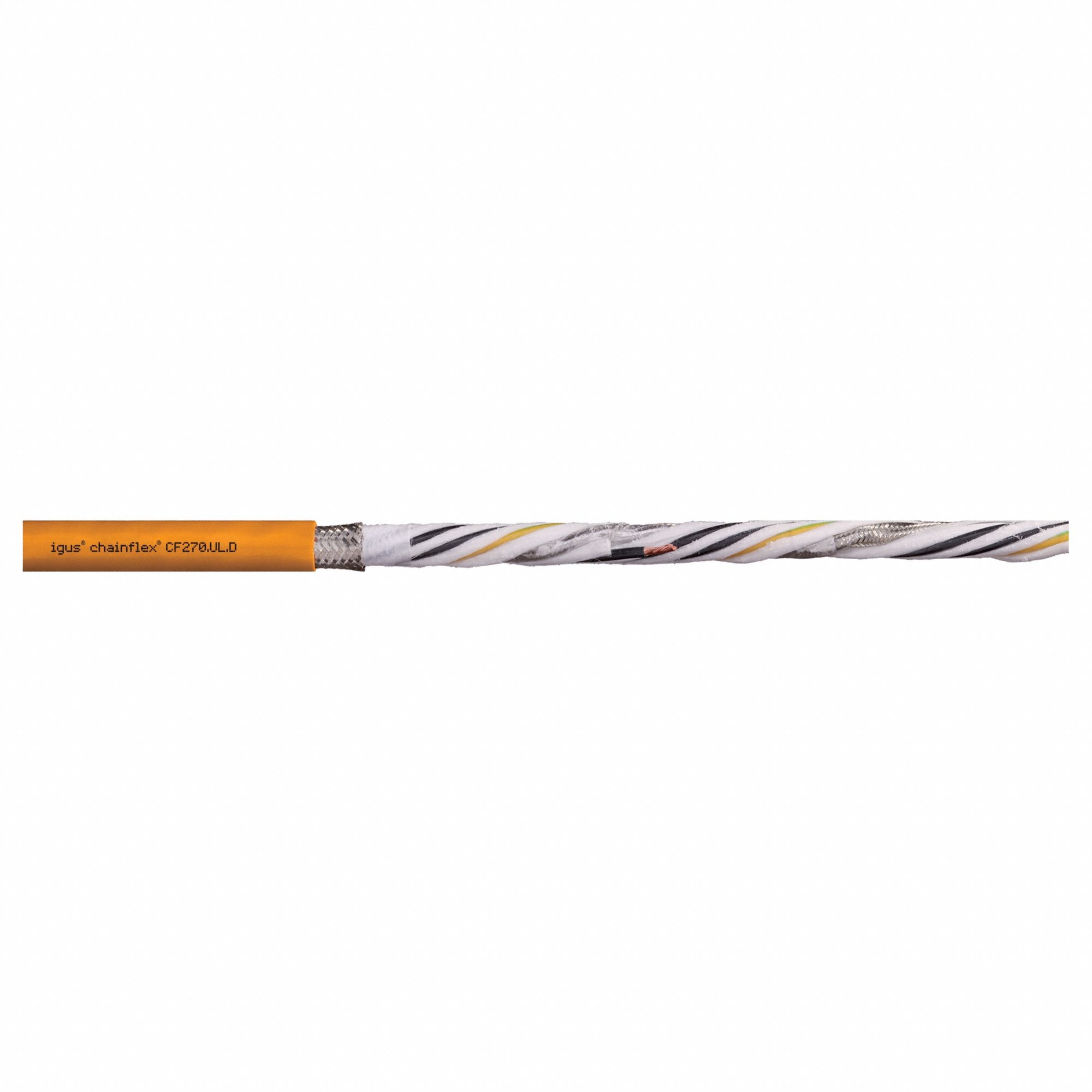

Chainflex 3G-OTH-47143 — Technical Specifications

Name: Chainflex 3G-OTH-47143 CHAINFLEX VFD Servo Motor Cable: (4) 4 AWG (25), Orange, PUR Jacket, 1,000 V Volt (MPN CF270-UL25004D). Key specifications — Conductor Grouping: (4) 4 AWG; Includes Ground: Yes; Overall Length: Order by the Foot; Minimum Bend Radius Factor - Fixed: 5 x OD; Minimum Bend Radius Factor - Flexible: 8 x OD; Brand: CHAINFLEX.
Brand: Chainflex

The CHAINFLEX VFD Servo Motor Cable (SKU 801LN2, MPN CF270-UL25004D) is a servo VFD power cable with a conductor grouping of (4) 4 AWG and includes a ground. It features a PUR jacket, is rated for 1,000 V, and is available in orange. The cable has a minimum bend radius factor of 5 x OD for fixed installation and 8 x OD for flexible installation, and is sold by the foot.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Orange, PUR Jacket
Volt	1,000 V
Brand	CHAINFLEX
Overall Length	Order by the Foot
Includes Ground	Yes
Conductor Grouping	(4) 4 AWG
Manufacturer Part Number	CF270-UL25004D
Minimum Bend Radius Factor - Fixed	5 x OD
Minimum Bend Radius Factor - Flexible	8 x OD
