Chainflex 3G-OTH-46952 — Technical Specifications

Name: Chainflex 3G-OTH-46952 CHAINFLEX VFD Servo Motor Cable: (4) 16 AWG (1.5)/(2) Shielded Twisted Pr 18 AWG (0.75), Orange (MPN CF270-UL15722D). Key specifications — Conductor Grouping: (4) 16 AWG/(2) Shielded Twisted Pair 18 AWG; Includes Ground: Yes; Overall Length: Order by the Foot; Minimum Bend Radius Factor - Fixed: 5 x OD; Minimum Bend Radius Factor - Flexible: 8 x OD; Brand: CHAINFLEX.
Brand: Chainflex

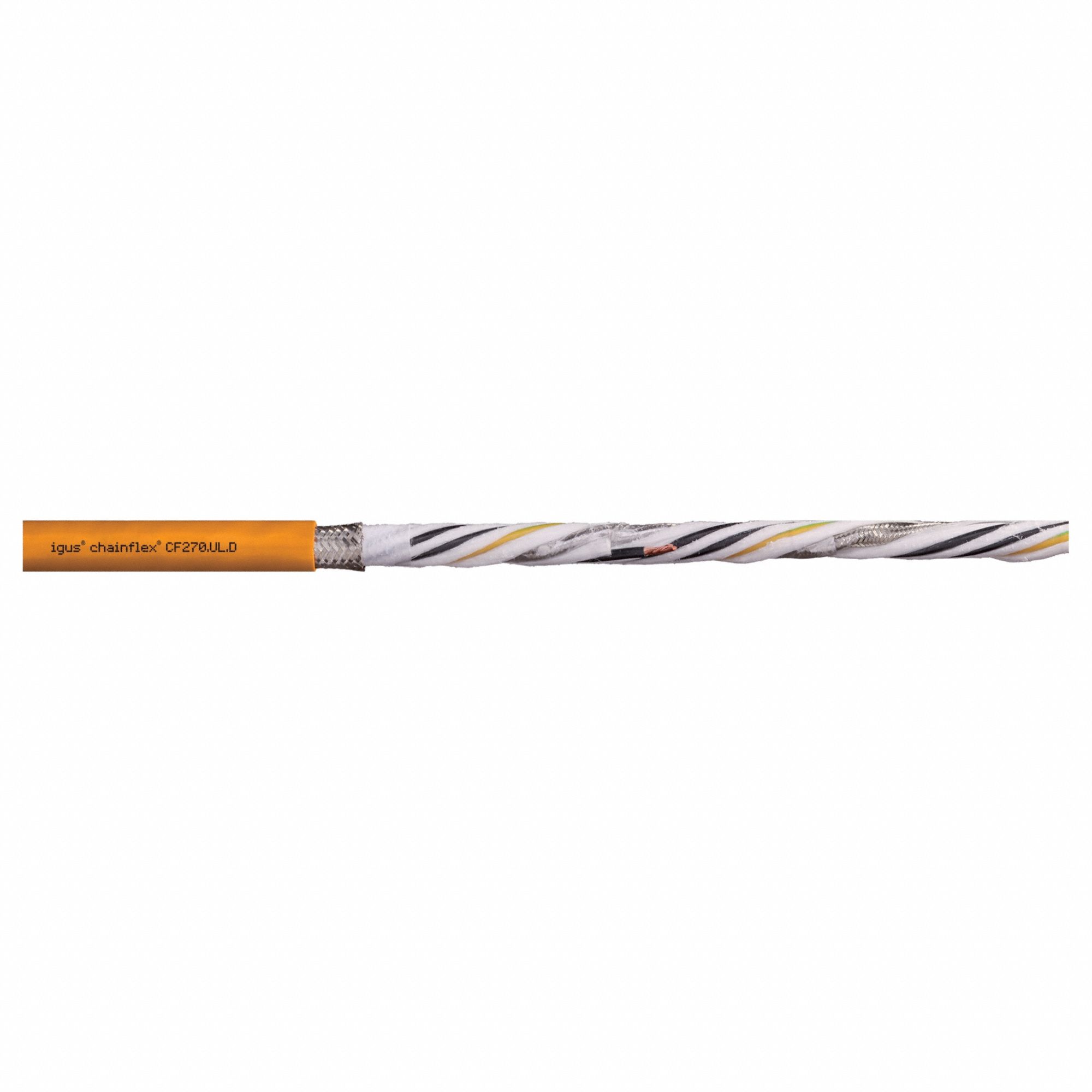

The CHAINFLEX VFD Servo Motor Cable (SKU 801LM6, MPN CF270-UL15722D) is a servo VFD power cable featuring a conductor grouping of (4) 16 AWG/(2) shielded twisted pair 18 AWG with an included ground. It is available by the foot and has a minimum bend radius factor of 5 x OD for fixed installation and 8 x OD for flexible applications.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Twisted Pr 18 AWG (0.75), Orange
Brand	CHAINFLEX
Overall Length	Order by the Foot
Includes Ground	Yes
Conductor Grouping	(4) 16 AWG/(2) Shielded Twisted Pair 18 AWG
Manufacturer Part Number	CF270-UL15722D
Minimum Bend Radius Factor - Fixed	5 x OD
Minimum Bend Radius Factor - Flexible	8 x OD
