Chainflex 3G-OTH-50397 — Technical Specifications

Name: Chainflex 3G-OTH-50397 CHAINFLEX Servo Motor Cable: Orange, PVC Jacket, 1,000 V Volt (MPN CF220ULH101154). Key specifications — Conductor Grouping: (4) 16 AWG/Shielded Twisted Pair 18 AWG/Shielded Twisted Pair AWG 22; Includes Ground: Yes; Overall Length: Order by the Foot; Minimum Bend Radius Factor - Fixed: 5 x OD; Minimum Bend Radius Factor - Flexible: 8 x OD; Brand: CHAINFLEX.
Brand: Chainflex

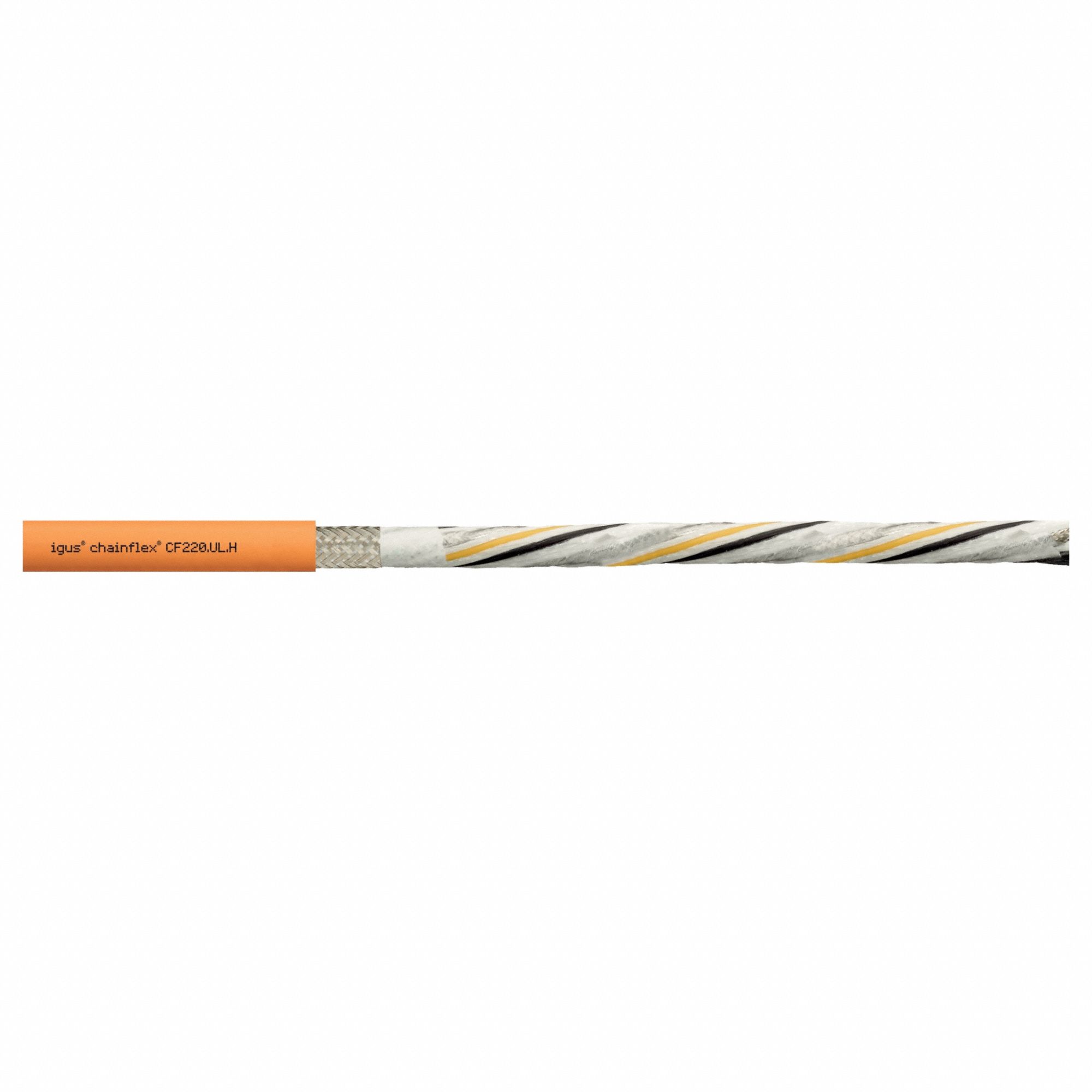

The CHAINFLEX Servo Motor Power Cable (MPN CF220ULH101154) is a 1,000 V rated servo motor cable with an orange PVC jacket. It features a conductor grouping of (4) 16 AWG, shielded twisted pair 18 AWG, and shielded twisted pair AWG 22, includes a ground, and is sold by the foot. The cable has a minimum bend radius factor of 5 x OD for fixed installation and 8 x OD for flexible installation.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	CHAINFLEX
Overall Length	Order by the Foot
Includes Ground	Yes
Conductor Grouping	(4) 16 AWG/Shielded Twisted Pair 18 AWG/Shielded Twisted Pair AWG 22
Manufacturer Part Number	CF220ULH101154
Minimum Bend Radius Factor - Fixed	5 x OD
Minimum Bend Radius Factor - Flexible	8 x OD
