Chainflex 3G-OTH-50413 — Technical Specifications

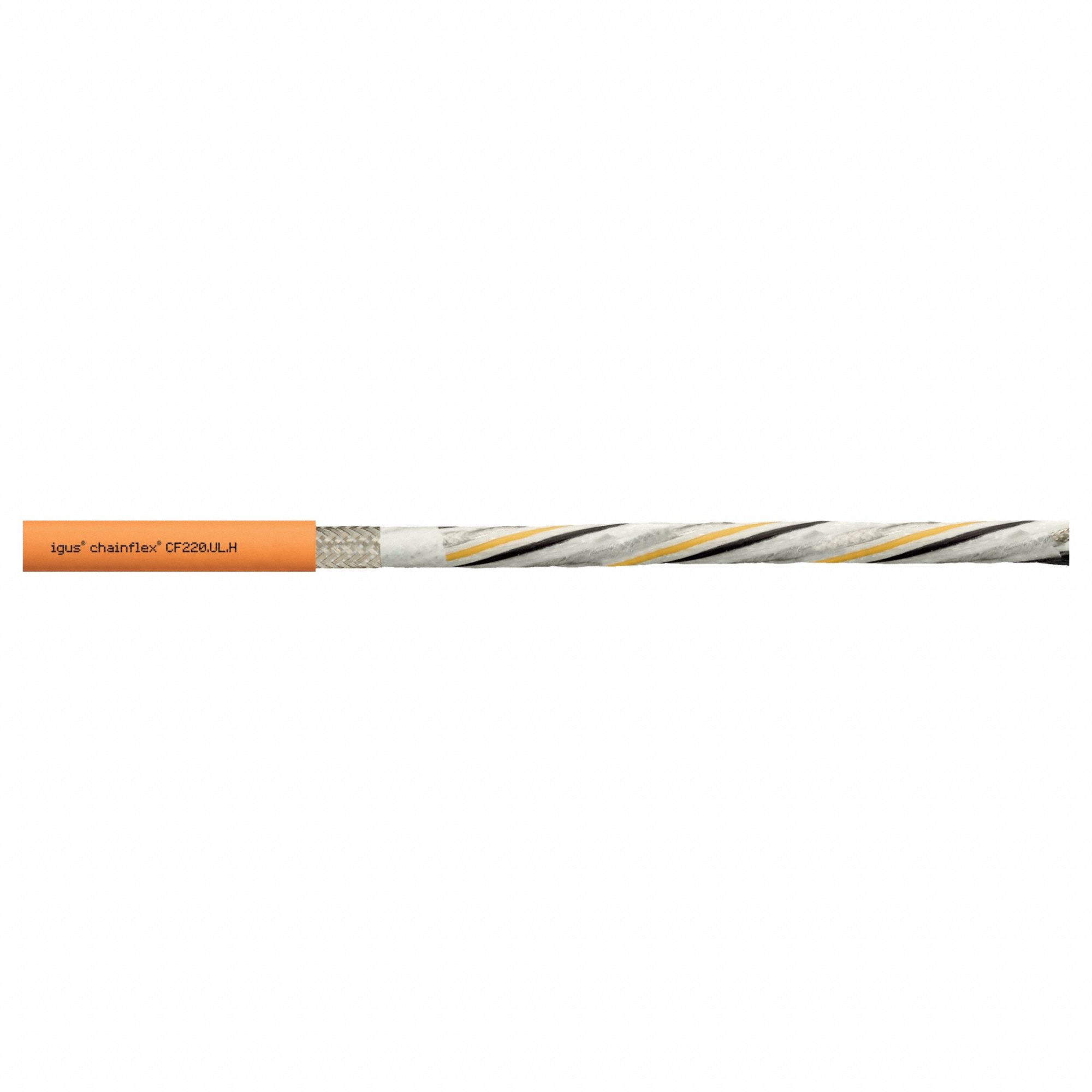

The CHAINFLEX Servo Motor Power Cable (MPN CF220ULH101104) is a 1,000 V rated servo motor cable with an orange PVC jacket. It features a conductor grouping of (4) 17 AWG and shielded twisted pairs of 18 AWG and 22 AWG, includes a ground, and is available by the foot. The cable has a minimum bend radius factor of 5 x OD for fixed installations and 8 x OD for flexible applications.
Technical Specifications
| Parameter | Value |
|---|---|
| Brand | CHAINFLEX |
| Overall Length | Order by the Foot |
| Includes Ground | Yes |
| Conductor Grouping | (4) 17 AWG/Shielded Twisted Pair 18 AWG/Shielded Twisted Pair AWG 22 |
| Manufacturer Part Number | CF220ULH101104 |
| Minimum Bend Radius Factor - Fixed | 5 x OD |
| Minimum Bend Radius Factor - Flexible | 8 x OD |
