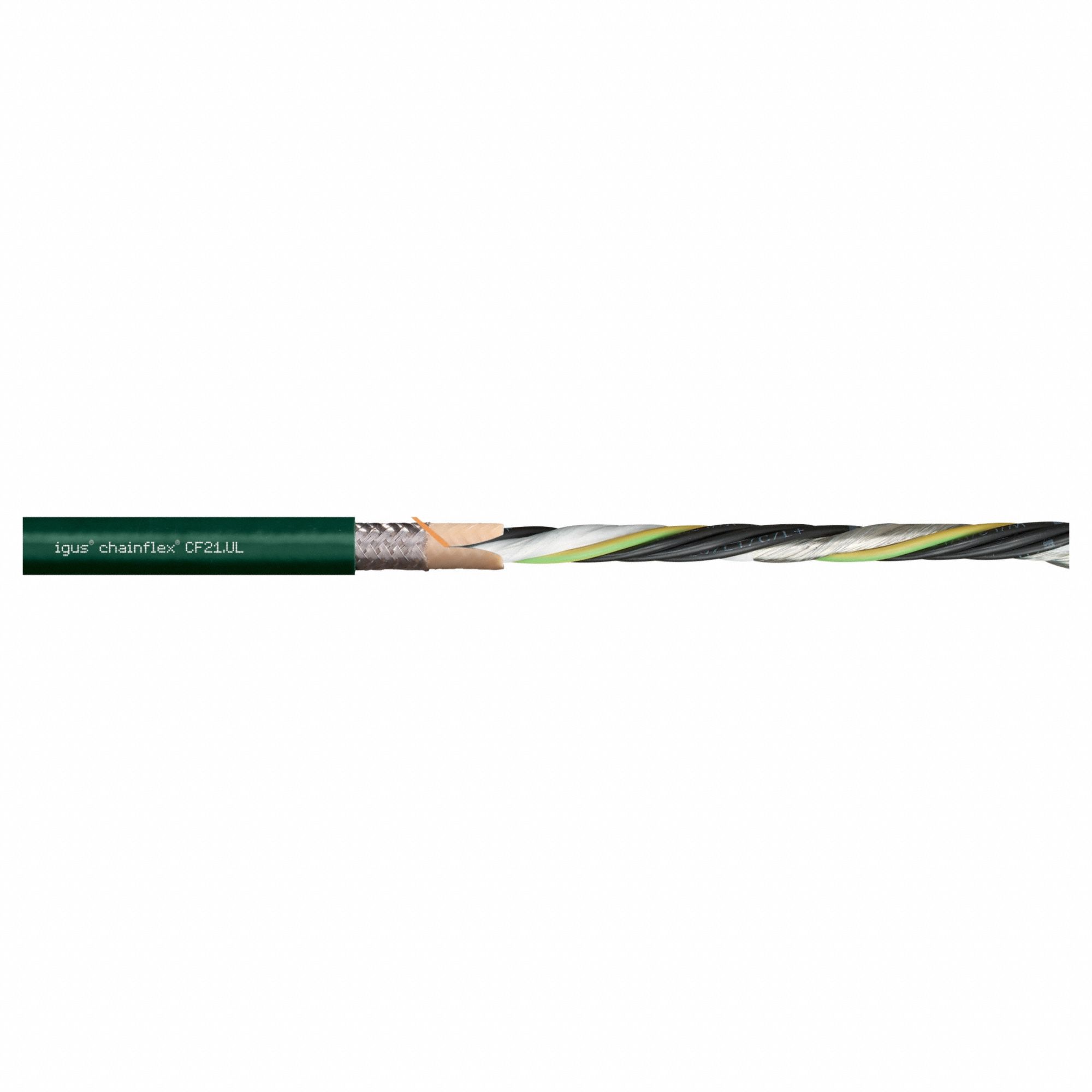

Chainflex 3G-OTH-49772 — Technical Specifications

Name: Chainflex 3G-OTH-49772 CHAINFLEX Servo Motor Cable: (4) 10 AWG (6.0)/Shielded Twisted Pr 16 AWG (1.5), Green, PVC Jacket (MPN CF21-60150201). Key specifications — Conductor Grouping: (4) 10 AWG/Shielded Twisted Pair 16 AWG; Includes Ground: Yes; Overall Length: Order by the Foot; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Brand: CHAINFLEX.
Brand: Chainflex

The CHAINFLEX Servo Motor Power Cable (SKU 801LF2, MPN CF21-60150201) features a conductor grouping of (4) 10 AWG with a shielded twisted pair of 16 AWG and includes a ground conductor. It has a green PVC jacket and is available by the foot. The cable offers a minimum bend radius factor of 4 x OD for fixed installation and 6 x OD for flexible applications.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Pr 16 AWG (1.5), Green, PVC Jacket
Brand	CHAINFLEX
Overall Length	Order by the Foot
Includes Ground	Yes
Conductor Grouping	(4) 10 AWG/Shielded Twisted Pair 16 AWG
Manufacturer Part Number	CF21-60150201
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
