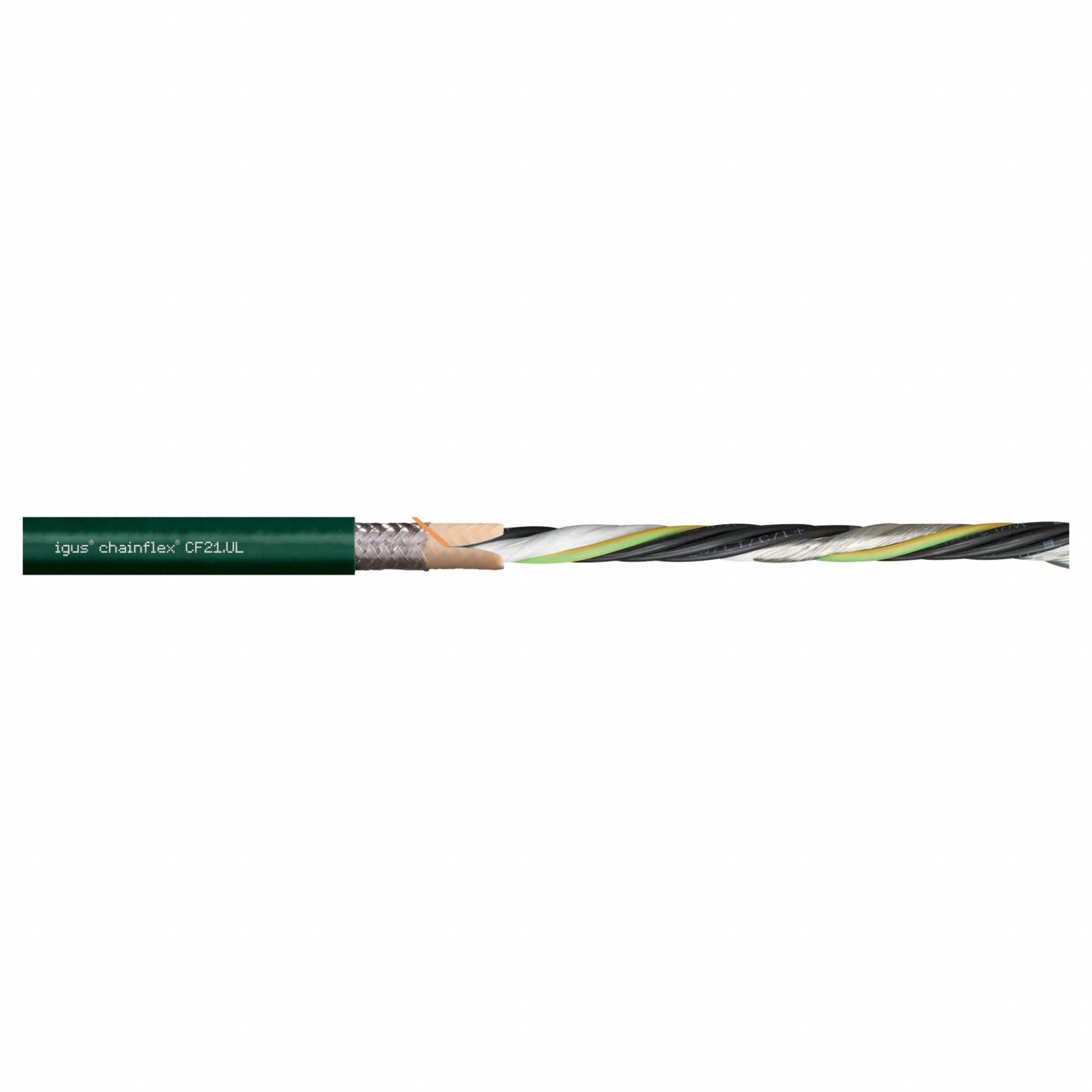

Chainflex 3G-OTH-49937 — Technical Specifications

Name: Chainflex 3G-OTH-49937 CHAINFLEX Servo Motor Cable: (4) 12 AWG (4.0)/Shielded Twisted Pr 16 AWG (1.5), Green, PVC Jacket (MPN CF21-4015021UL). Key specifications — Conductor Grouping: (4) 12 AWG/Shielded Twisted Pair 16 AWG; Includes Ground: Yes; Overall Length: Order by the Foot; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Brand: CHAINFLEX.
Brand: Chainflex

The CHAINFLEX Servo Motor Power Cable (SKU 801LF0, MPN CF21-4015021UL) features a conductor grouping of (4) 12 AWG with a shielded twisted pair of 16 AWG and includes a ground. It is available by the foot and has a minimum bend radius factor of 4 x OD for fixed installation and 6 x OD for flexible applications.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Pr 16 AWG (1.5), Green, PVC Jacket
Brand	CHAINFLEX
Overall Length	Order by the Foot
Includes Ground	Yes
Conductor Grouping	(4) 12 AWG/Shielded Twisted Pair 16 AWG
Manufacturer Part Number	CF21-4015021UL
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
