Chainflex 3G-OTH-50192 — Technical Specifications

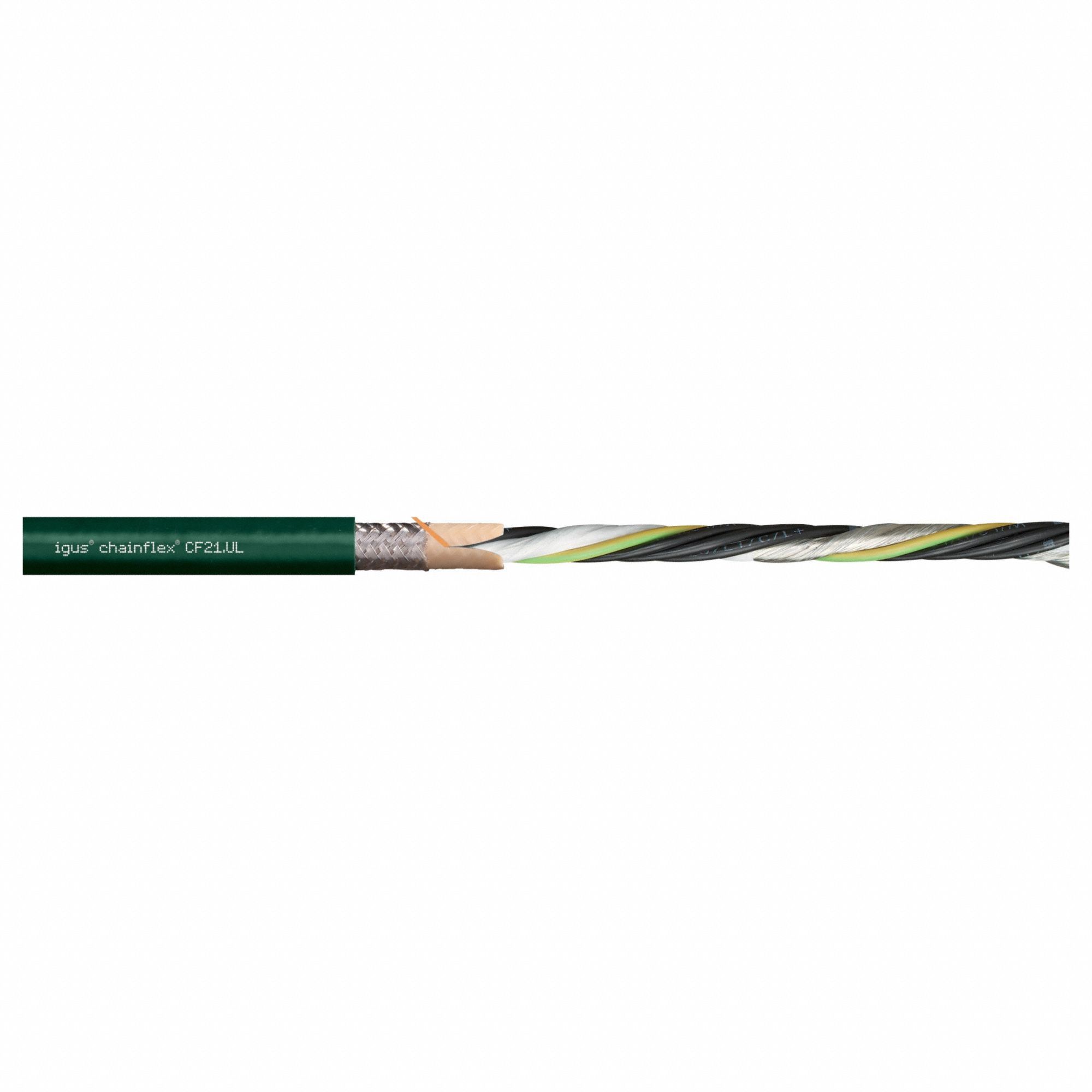

The CHAINFLEX Servo Motor Cable (SKU 801LC2, MPN CF21-1515021UL) is a servo motor power cable featuring (4) 16 AWG conductors with a shielded twisted pair of 16 AWG and an included ground. It has a green PVC jacket and is sold by the foot. The cable offers a minimum bend radius factor of 4 x OD for fixed installation and 6 x OD for flexible applications.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Pr 16 AWG (1.5), Green, PVC Jacket |
| Brand | CHAINFLEX |
| Overall Length | Order by the Foot |
| Includes Ground | Yes |
| Conductor Grouping | (4) 16 AWG/Shielded Twisted Pair 16 AWG |
| Manufacturer Part Number | CF21-1515021UL |
| Minimum Bend Radius Factor - Fixed | 4 x OD |
| Minimum Bend Radius Factor - Flexible | 6 x OD |
