Chainflex 3G-OTH-49810 — Technical Specifications

Name: Chainflex 3G-OTH-49810 CHAINFLEX Servo Motor Cable: (4) 12 AWG (4.0), Orange, PVC Jacket, 1,000 V Volt (MPN CF210-UL-40-04). Key specifications — Conductor Grouping: (4) 12 AWG; Includes Ground: Yes; Overall Length: Order by the Foot; Minimum Bend Radius Factor - Fixed: 5 x OD; Minimum Bend Radius Factor - Flexible: 8 x OD; Brand: CHAINFLEX.
Brand: Chainflex

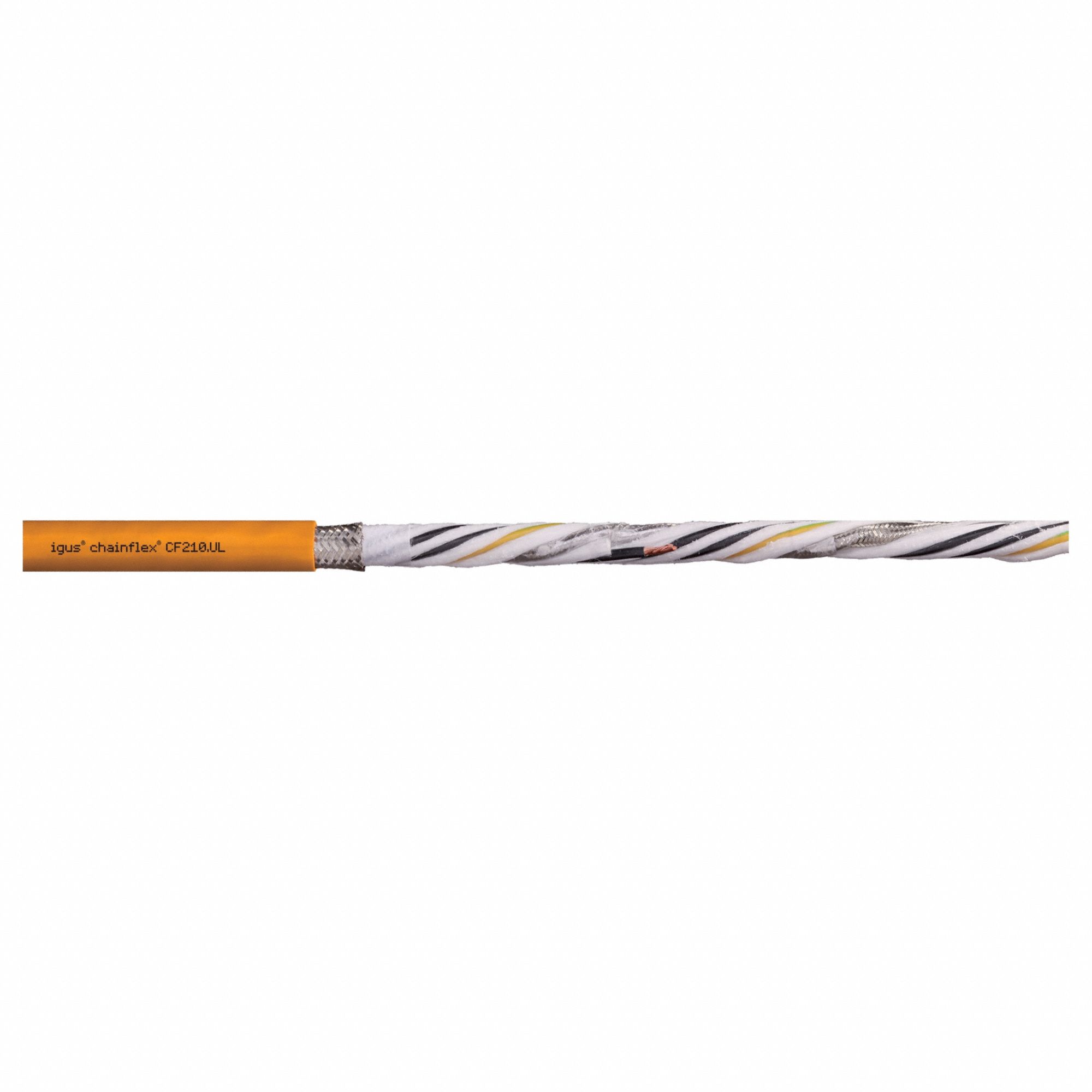

The CHAINFLEX Servo Motor Power Cable (SKU 801L75, MPN CF210-UL-40-04) is a servo motor power cable featuring (4) 12 AWG conductors with an included ground, an orange PVC jacket, and a 1,000 V voltage rating. It is sold by the foot and has a minimum bend radius factor of 5 x OD for fixed installation and 8 x OD for flexible applications.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	CHAINFLEX
Overall Length	Order by the Foot
Includes Ground	Yes
Conductor Grouping	(4) 12 AWG
Manufacturer Part Number	CF210-UL-40-04
Minimum Bend Radius Factor - Fixed	5 x OD
Minimum Bend Radius Factor - Flexible	8 x OD
