Chainflex 3G-OTH-48873 — Technical Specifications

Name: Chainflex 3G-OTH-48873 CHAINFLEX Measuring System Cable: (6) Pr 24 AWG (0.25), Green, PUR Jacket, 50 V Volt (MPN CF113-037-D). Key specifications — Conductor Grouping: (6) Pair 24 AWG; Includes Ground: No; Overall Length: Order by the Foot; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Brand: CHAINFLEX.
Brand: Chainflex

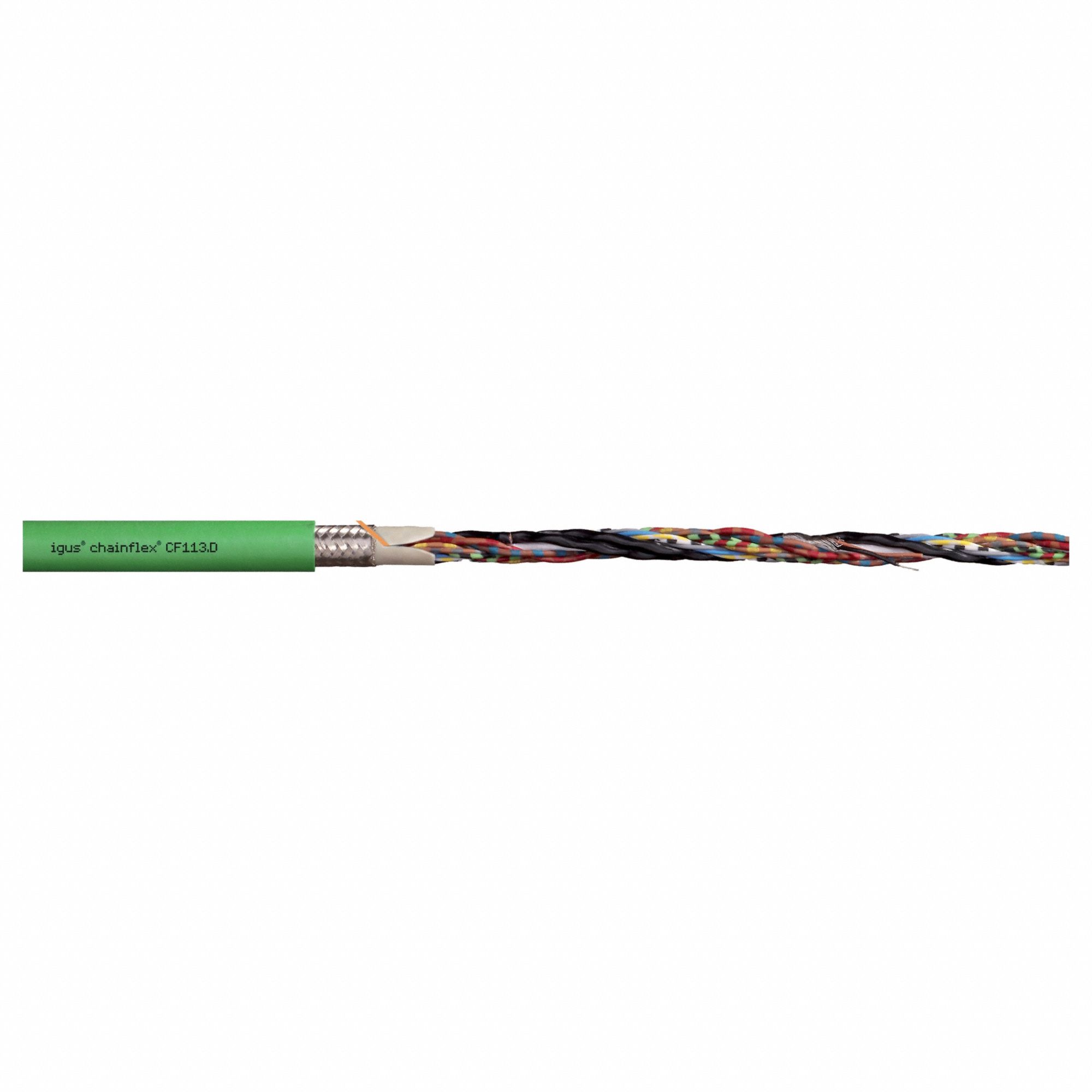

The CHAINFLEX Measuring System Cable (6) Pr 24 AWG (0.25) is a servo motor feedback cable with a green PUR jacket and a 50 V voltage rating. It features (6) pair 24 AWG conductor grouping, no included ground, and a minimum bend radius factor of 4 x OD for fixed installation and 6 x OD for flexible installation. This cable is sold by the foot under MPN CF113-037-D.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Green, PUR Jacket
Volt	50 V
Brand	CHAINFLEX
Overall Length	Order by the Foot
Includes Ground	No
Conductor Grouping	(6) Pair 24 AWG
Manufacturer Part Number	CF113-037-D
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
