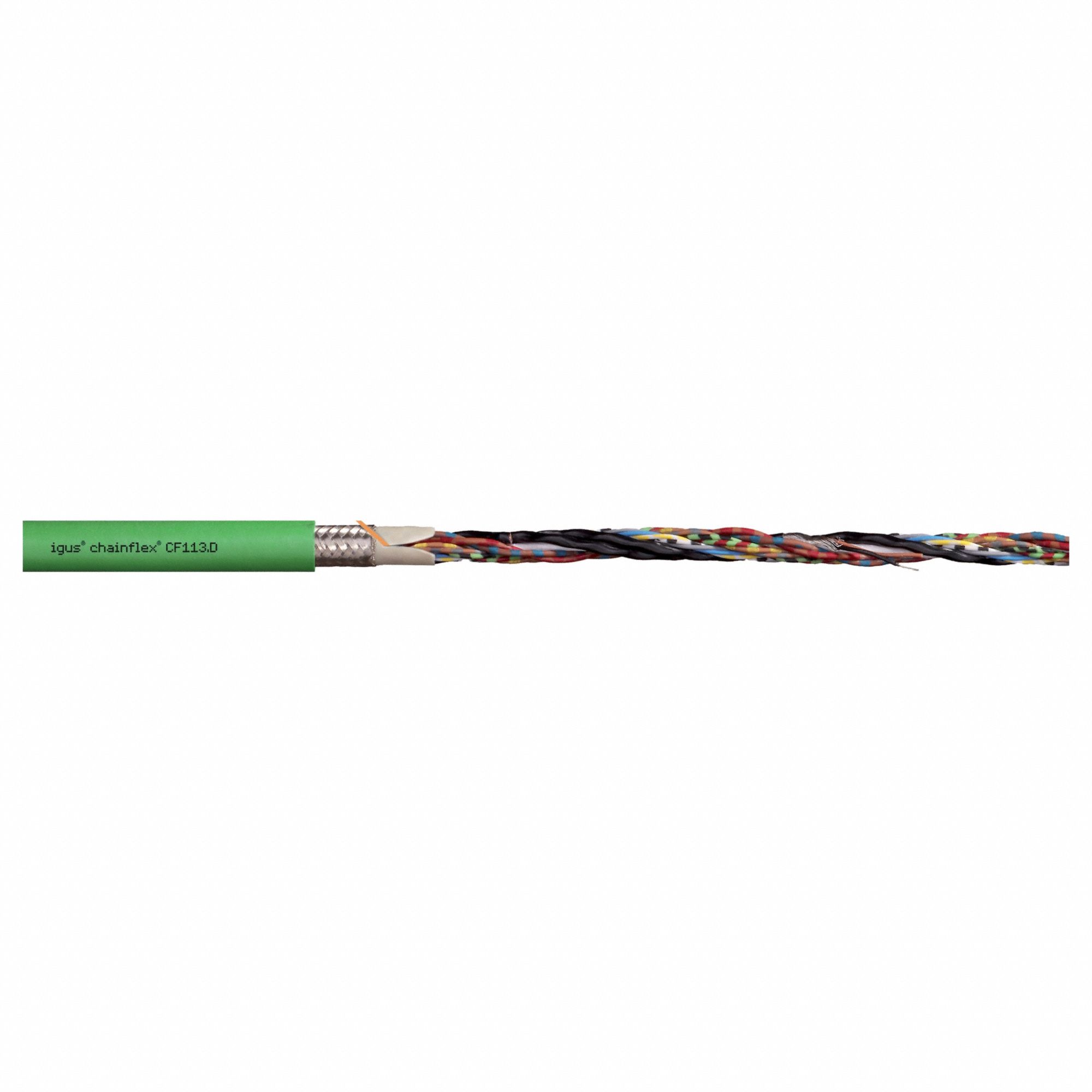

Chainflex 3G-OTH-48832 — Technical Specifications

Name: Chainflex 3G-OTH-48832 CHAINFLEX Measuring System Cable: (5) Pr 24 AWG (0.25), Green, PUR Jacket, 50 V Volt (MPN CF113-036-D). Key specifications — Conductor Grouping: (5) Pair 24 AWG; Includes Ground: No; Overall Length: Order by the Foot; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Brand: CHAINFLEX.
Brand: Chainflex

The CHAINFLEX Measuring System Cable (5) Pr 24 AWG (0.25) is a servo motor feedback cable with a conductor grouping of (5) Pair 24 AWG, a green PUR jacket, and a 50 V voltage rating. It has a minimum bend radius factor of 4 x OD for fixed installation and 6 x OD for flexible installation, and is sold by the foot. This cable does not include a ground conductor.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Green, PUR Jacket
Volt	50 V
Brand	CHAINFLEX
Overall Length	Order by the Foot
Includes Ground	No
Conductor Grouping	(5) Pair 24 AWG
Manufacturer Part Number	CF113-036-D
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
