Chainflex 3G-OTH-48801 — Technical Specifications

Name: Chainflex 3G-OTH-48801 CHAINFLEX Measuring System Cable: (4) Shielded Twisted Pr 24 AWG (0.25)/(2) Pr 20 AWG (0.50), Green (MPN CF113-035-D). Key specifications — Conductor Grouping: (4) Shielded Twisted Pair 24 AWG/(2) Pair 20 AWG; Overall Length: Order by the Foot; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Brand: CHAINFLEX.
Brand: Chainflex

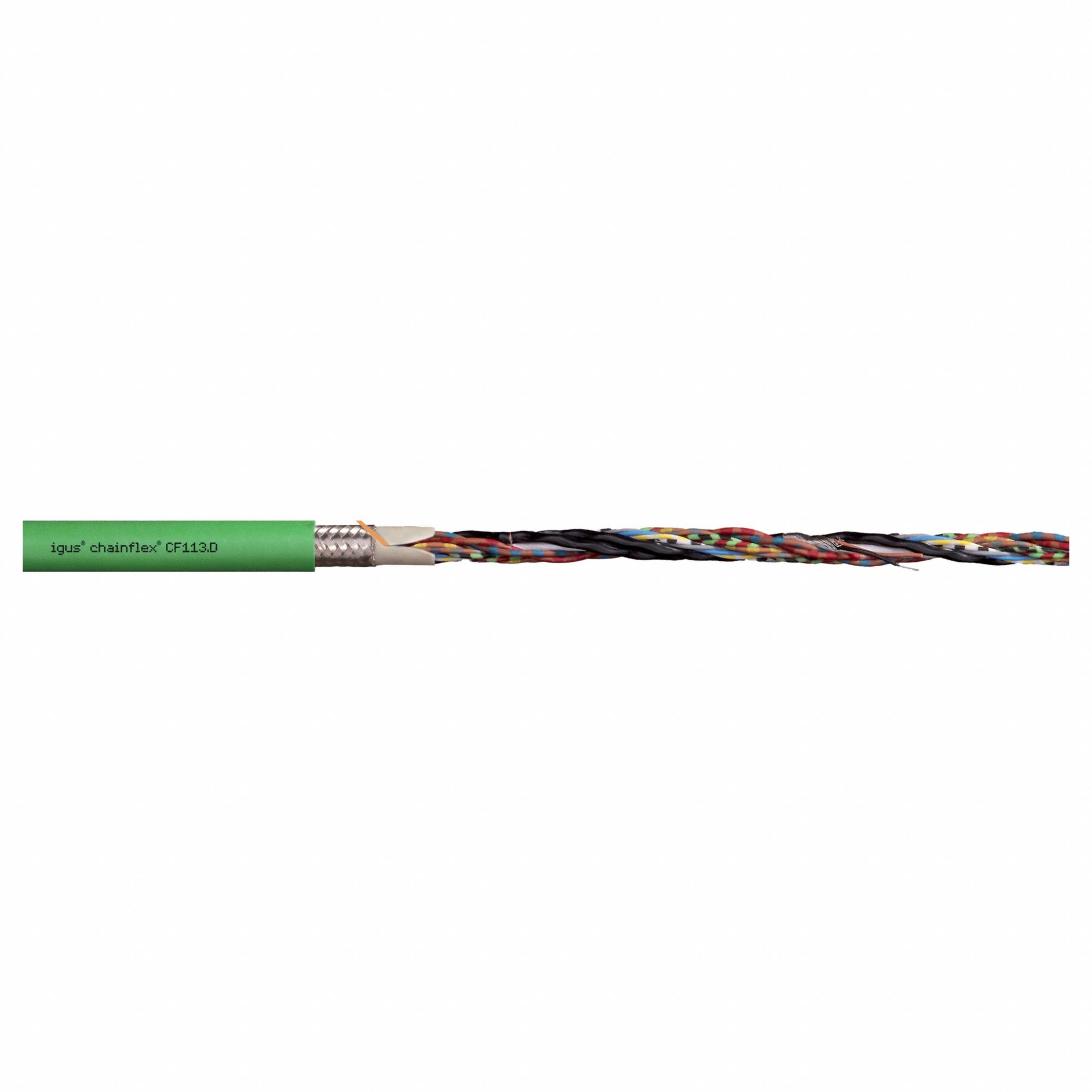

The CHAINFLEX Measuring System Cable (SKU 801L49, MPN CF113-035-D) is a servo motor feedback cable featuring (4) shielded twisted pair 24 AWG and (2) pair 20 AWG conductors. It is available by the foot and has a minimum bend radius factor of 4 x OD for fixed installations and 6 x OD for flexible applications.

View Product & Quote

Technical Specifications

Parameter	Value
Type	(0.25)/(2) Pr 20 AWG (0.50), Green
Brand	CHAINFLEX
Overall Length	Order by the Foot
Conductor Grouping	(4) Shielded Twisted Pair 24 AWG/(2) Pair 20 AWG
Manufacturer Part Number	CF113-035-D
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
