Chainflex 3G-OTH-49789 — Technical Specifications

Name: Chainflex 3G-OTH-49789 CHAINFLEX Measuring System Cable: (4) Shielded Twisted Pr 26 AWG (0.14)/(2) 17 AWG (1.0), Green (MPN CF113-033-D). Key specifications — Conductor Grouping: (4) Shielded Twisted Pair 26 AWG/(2) 17 AWG; Includes Ground: No; Overall Length: Order by the Foot; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Brand: CHAINFLEX.
Brand: Chainflex

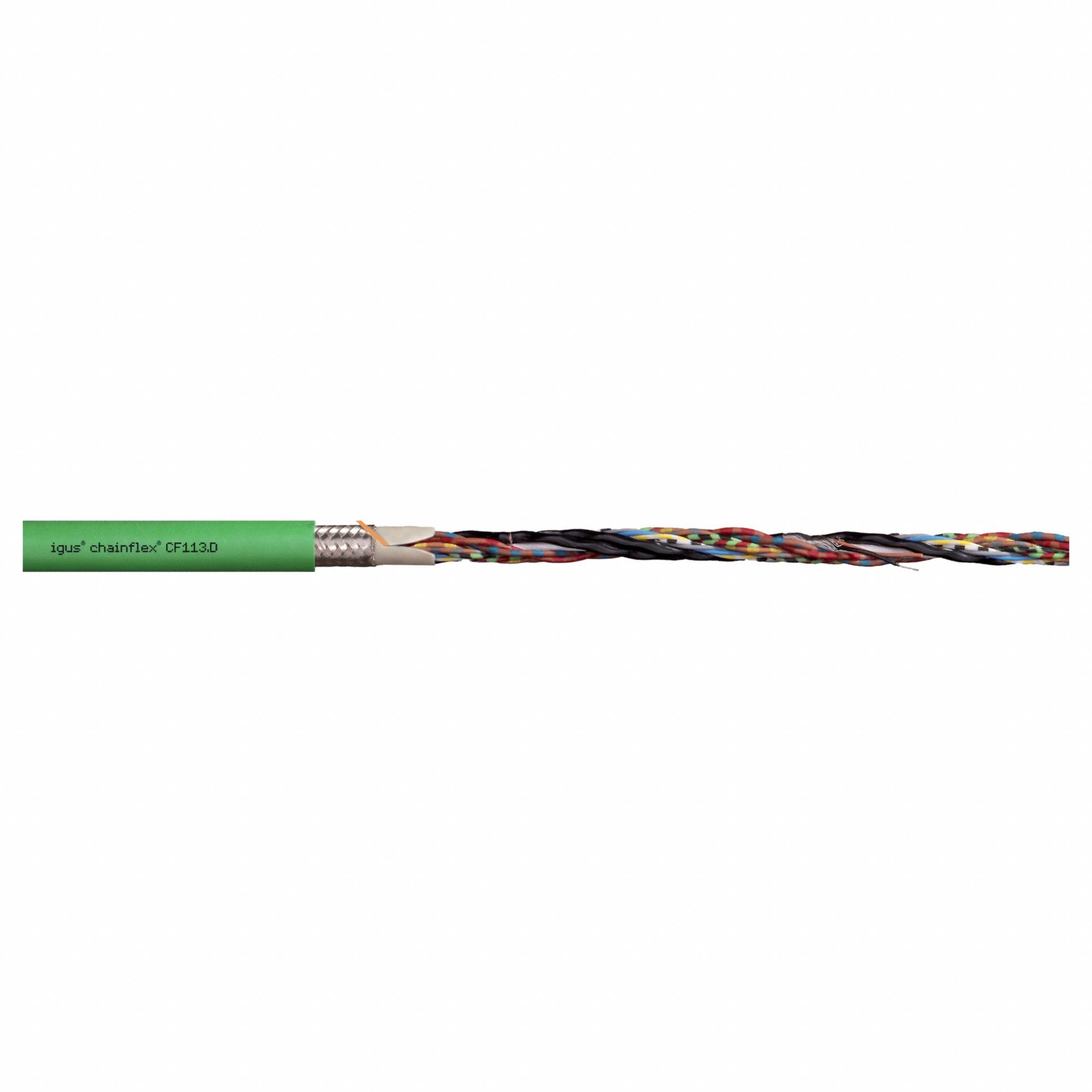

The CHAINFLEX Measuring System Cable (SKU 801L47, MPN CF113-033-D) is a servo motor feedback cable featuring (4) shielded twisted pair 26 AWG and (2) 17 AWG conductors. It is ordered by the foot, does not include a ground, and has a minimum bend radius factor of 4 x OD for fixed installations and 6 x OD for flexible applications.

View Product & Quote

Technical Specifications

Parameter	Value
Type	(0.14)/(2) 17 AWG (1.0), Green
Brand	CHAINFLEX
Overall Length	Order by the Foot
Includes Ground	No
Conductor Grouping	(4) Shielded Twisted Pair 26 AWG/(2) 17 AWG
Manufacturer Part Number	CF113-033-D
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
