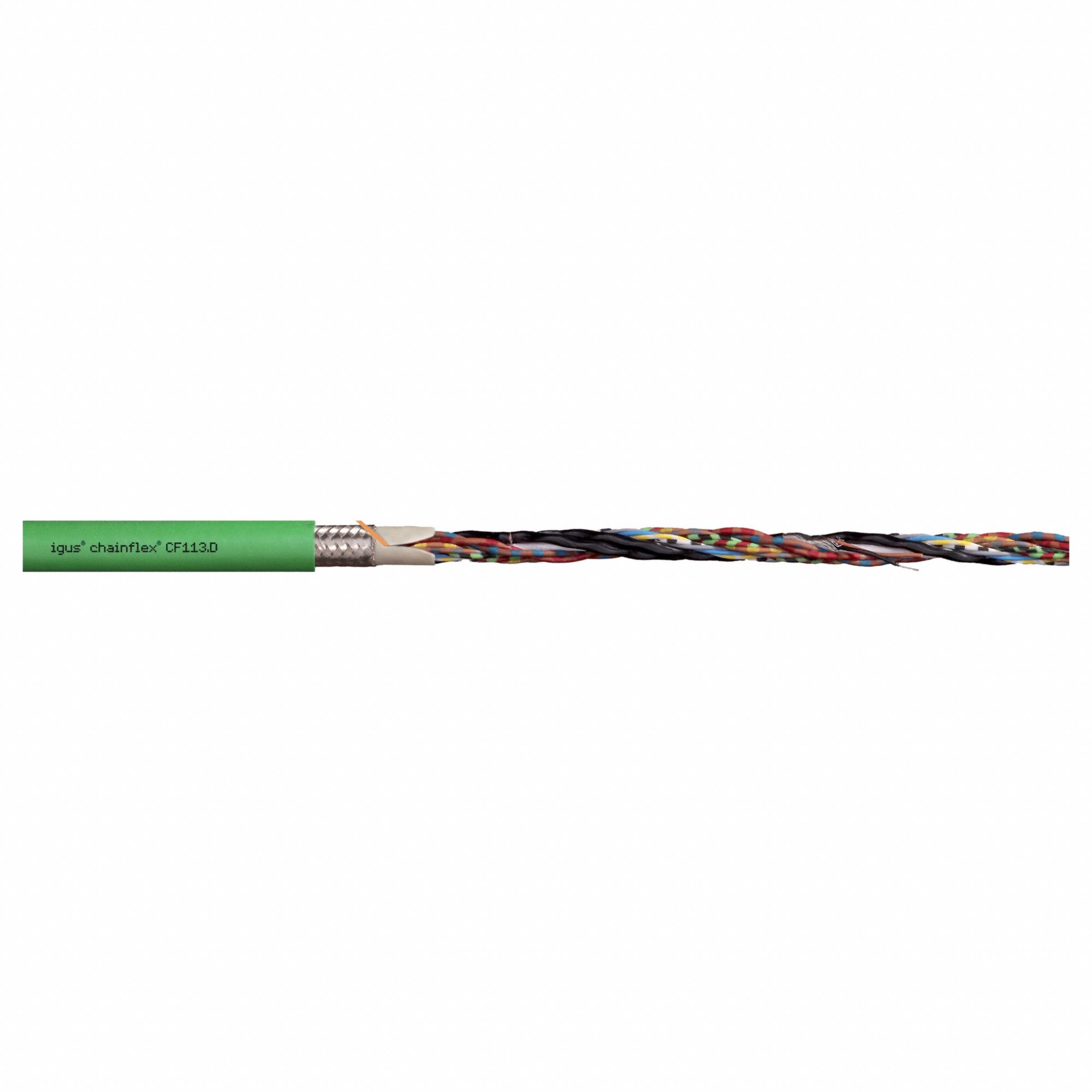

Chainflex 3G-OTH-49781 — Technical Specifications

Name: Chainflex 3G-OTH-49781 CHAINFLEX Measuring System Cable: (5) Pr 24 AWG (0.25)/(1) Pr 24 AWG (0.25) and Pr 20 AWG (0.5) (MPN CF113-029-D). Key specifications — Conductor Grouping: (5) Pair 24 AWG/(1) Pair 24 AWG and Pair 20 AWG; Includes Ground: No; Overall Length: Order by the Foot; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Brand: CHAINFLEX.
Brand: Chainflex

The CHAINFLEX Measuring System Cable (SKU 801L44, MPN CF113-029-D) is a servo motor feedback cable with a conductor grouping of (5) Pair 24 AWG/(1) Pair 24 AWG and Pair 20 AWG. It does not include a ground and is ordered by the foot. The cable has a minimum bend radius factor of 4 x OD for fixed installation and 6 x OD for flexible installation.

View Product & Quote

Technical Specifications

Parameter	Value
Type	AWG (0.25) and Pr 20 AWG (0.5)
Brand	CHAINFLEX
Overall Length	Order by the Foot
Includes Ground	No
Conductor Grouping	(5) Pair 24 AWG/(1) Pair 24 AWG and Pair 20 AWG
Manufacturer Part Number	CF113-029-D
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
