Chainflex 3G-OTH-49774 — Technical Specifications

Name: Chainflex 3G-OTH-49774 CHAINFLEX Measuring System Cable: Green, PUR Jacket, 50 V Volt (MPN CF113-025-D). Key specifications — Conductor Grouping: (3) Shielded Twisted Pair 26 AWG/Shielded Twisted Pair 20 AWG; Includes Ground: No; Overall Length: Order by the Foot; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Brand: CHAINFLEX.
Brand: Chainflex

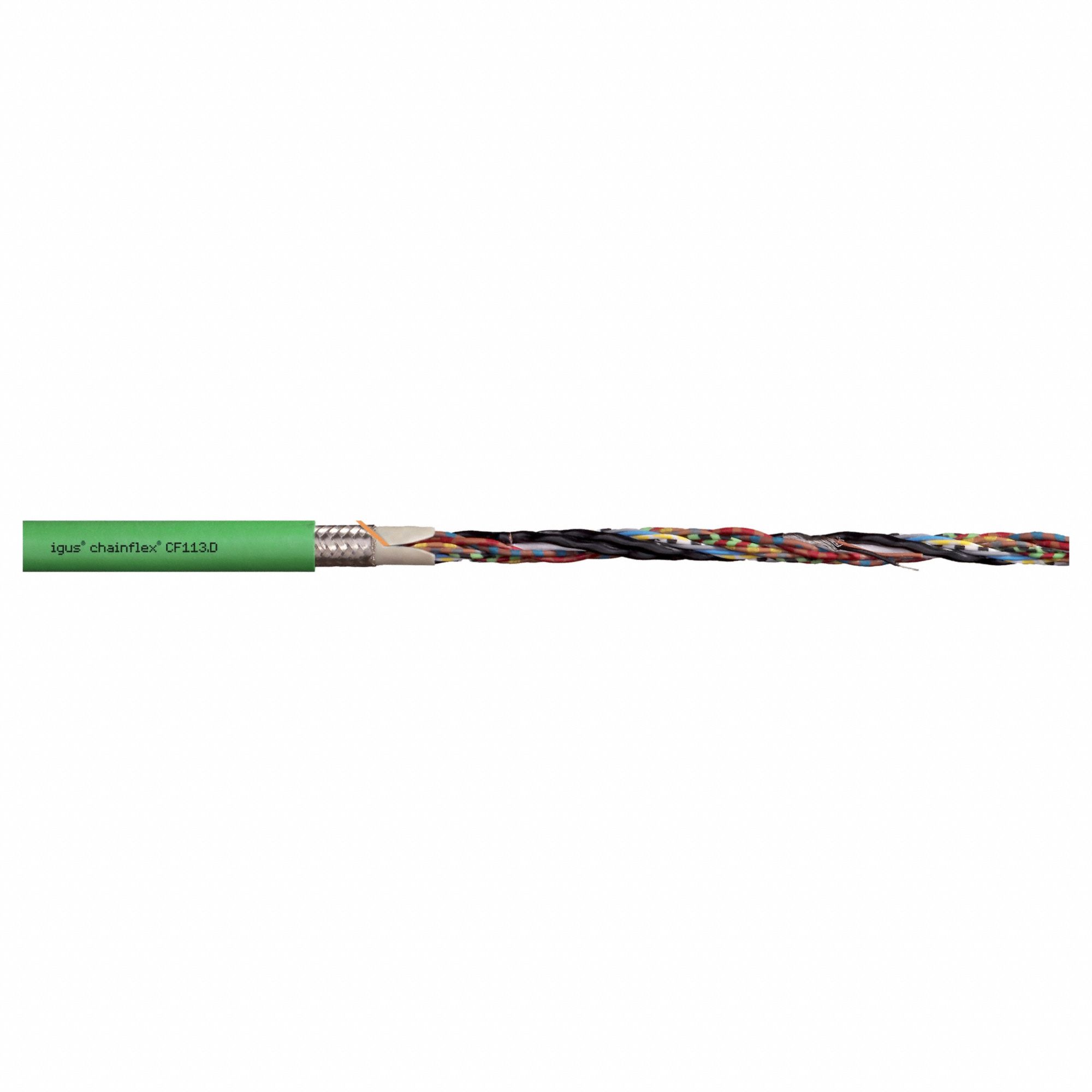

The CHAINFLEX Measuring System Cable (SKU 801L41, MPN CF113-025-D) is a servo motor feedback cable with a green PUR jacket rated at 50 V. It features conductor grouping of (3) shielded twisted pair 26 AWG and shielded twisted pair 20 AWG, with no included ground. The cable has a minimum bend radius factor of 4 x OD for fixed installation and 6 x OD for flexible installation, and is sold by the foot.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	CHAINFLEX
Overall Length	Order by the Foot
Includes Ground	No
Conductor Grouping	(3) Shielded Twisted Pair 26 AWG/Shielded Twisted Pair 20 AWG
Manufacturer Part Number	CF113-025-D
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
