Chainflex 3G-OTH-49746 — Technical Specifications

Name: Chainflex 3G-OTH-49746 CHAINFLEX Measuring System Cable: Green, PUR Jacket, 50 V Volt (MPN CF113-019-D). Key specifications — Conductor Grouping: (3) 24 AWG/(3) Shielded Twisted Pair 24 AWG/(2) 17 AWG; Includes Ground: No; Overall Length: Order by the Foot; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Brand: CHAINFLEX.
Brand: Chainflex

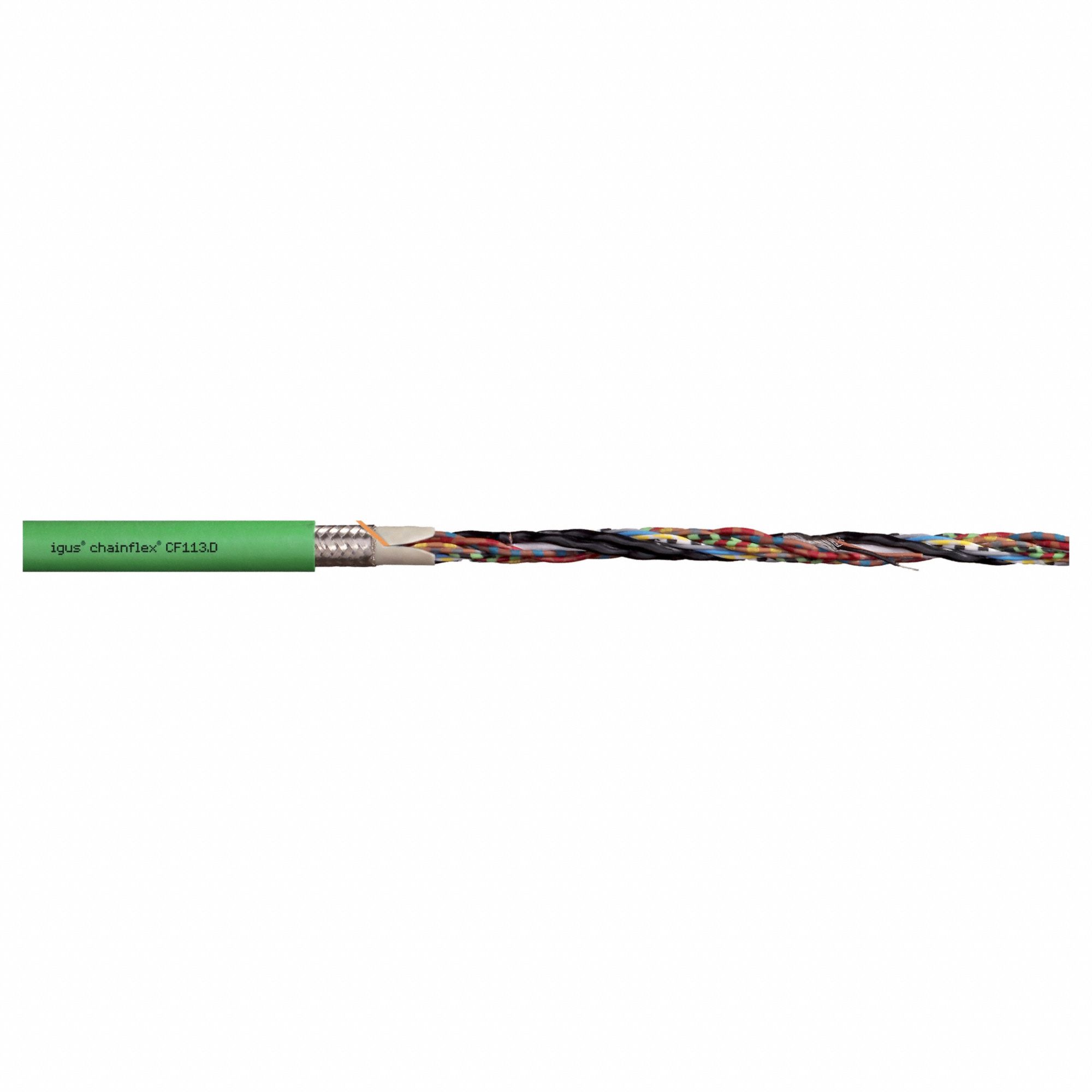

The CHAINFLEX Measuring System Cable (MPN CF113-019-D) is a servo motor feedback cable with a green PUR jacket rated for 50 V. It features a conductor grouping of (3) 24 AWG, (3) shielded twisted pair 24 AWG, and (2) 17 AWG, with no included ground. The cable has a minimum bend radius factor of 4 x OD for fixed installation and 6 x OD for flexible use, and is sold by the foot.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	CHAINFLEX
Overall Length	Order by the Foot
Includes Ground	No
Conductor Grouping	(3) 24 AWG/(3) Shielded Twisted Pair 24 AWG/(2) 17 AWG
Manufacturer Part Number	CF113-019-D
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
