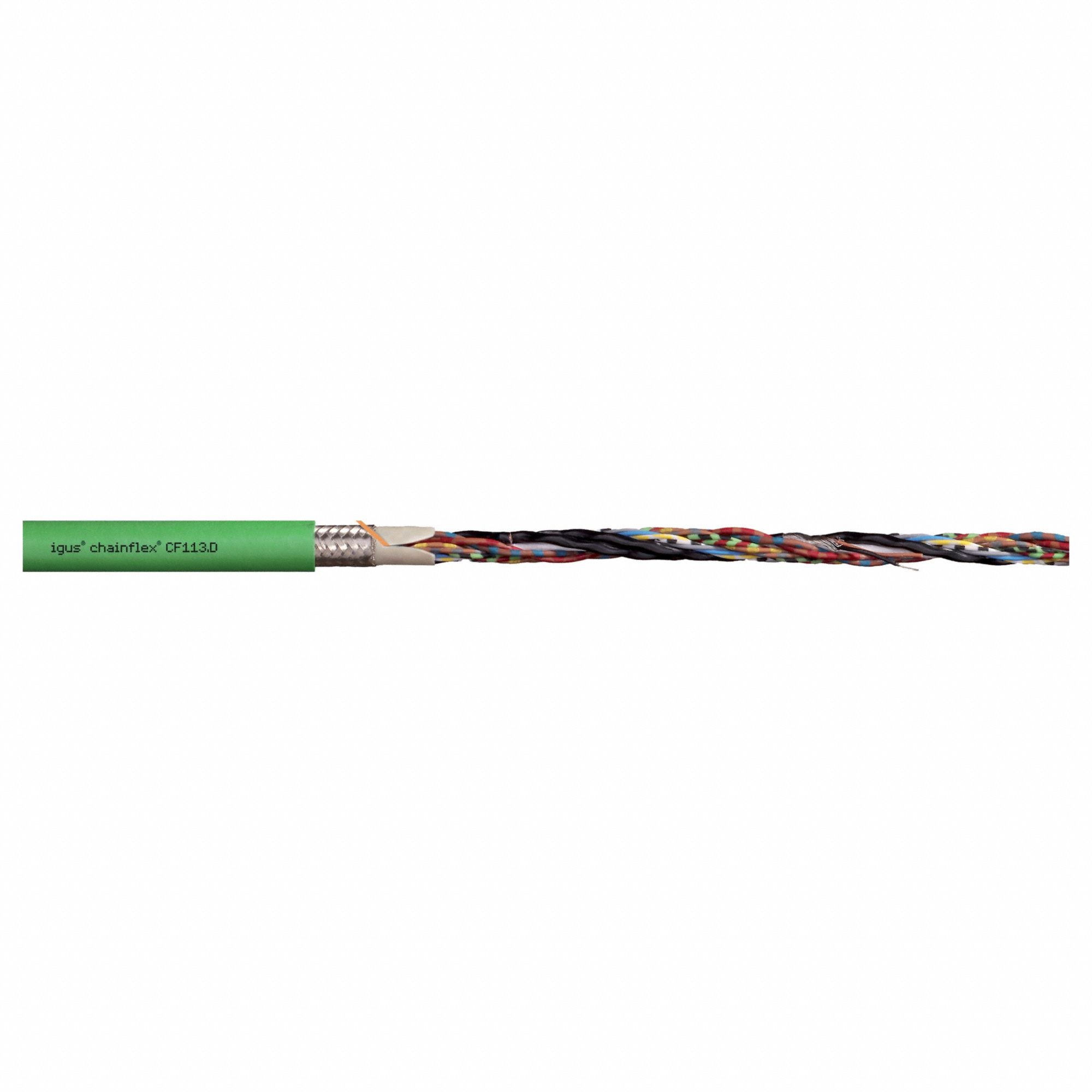

Chainflex 3G-OTH-49702 — Technical Specifications

Name: Chainflex 3G-OTH-49702 CHAINFLEX Measuring System Cable: (4) Pr 26 AWG (0.14)/(4) 17 AWG (1.0)/(4) Shielded 26 AWG (0.14) (MPN CF113-017-D). Key specifications — Conductor Grouping: (4) Pair 26 AWG/(4) 17 AWG/(4) Shielded 26 AWG; Includes Ground: No; Overall Length: Order by the Foot; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Brand: CHAINFLEX.
Brand: Chainflex

The CHAINFLEX Measuring System Cable (MPN CF113-017-D) is a servo motor feedback cable with a conductor grouping of (4) Pair 26 AWG/(4) 17 AWG/(4) Shielded 26 AWG. It does not include a ground and is available by the foot. The cable has a minimum bend radius factor of 4 x OD for fixed installation and 6 x OD for flexible installation.

View Product & Quote

Technical Specifications

Parameter	Value
Type	AWG (1.0)/(4) Shielded 26 AWG (0.14)
Brand	CHAINFLEX
Overall Length	Order by the Foot
Includes Ground	No
Conductor Grouping	(4) Pair 26 AWG/(4) 17 AWG/(4) Shielded 26 AWG
Manufacturer Part Number	CF113-017-D
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
