Chainflex 3G-OTH-49636 — Technical Specifications

Name: Chainflex 3G-OTH-49636 CHAINFLEX Measuring System Cable: (4) Pr 22 AWG (0.34)/(4) 20 AWG (0.50), Green, PUR Jacket (MPN CF113-011-D). Key specifications — Conductor Grouping: (4) Pair 22 AWG/(4) 20 AWG; Includes Ground: No; Overall Length: Order by the Foot; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Brand: CHAINFLEX.
Brand: Chainflex

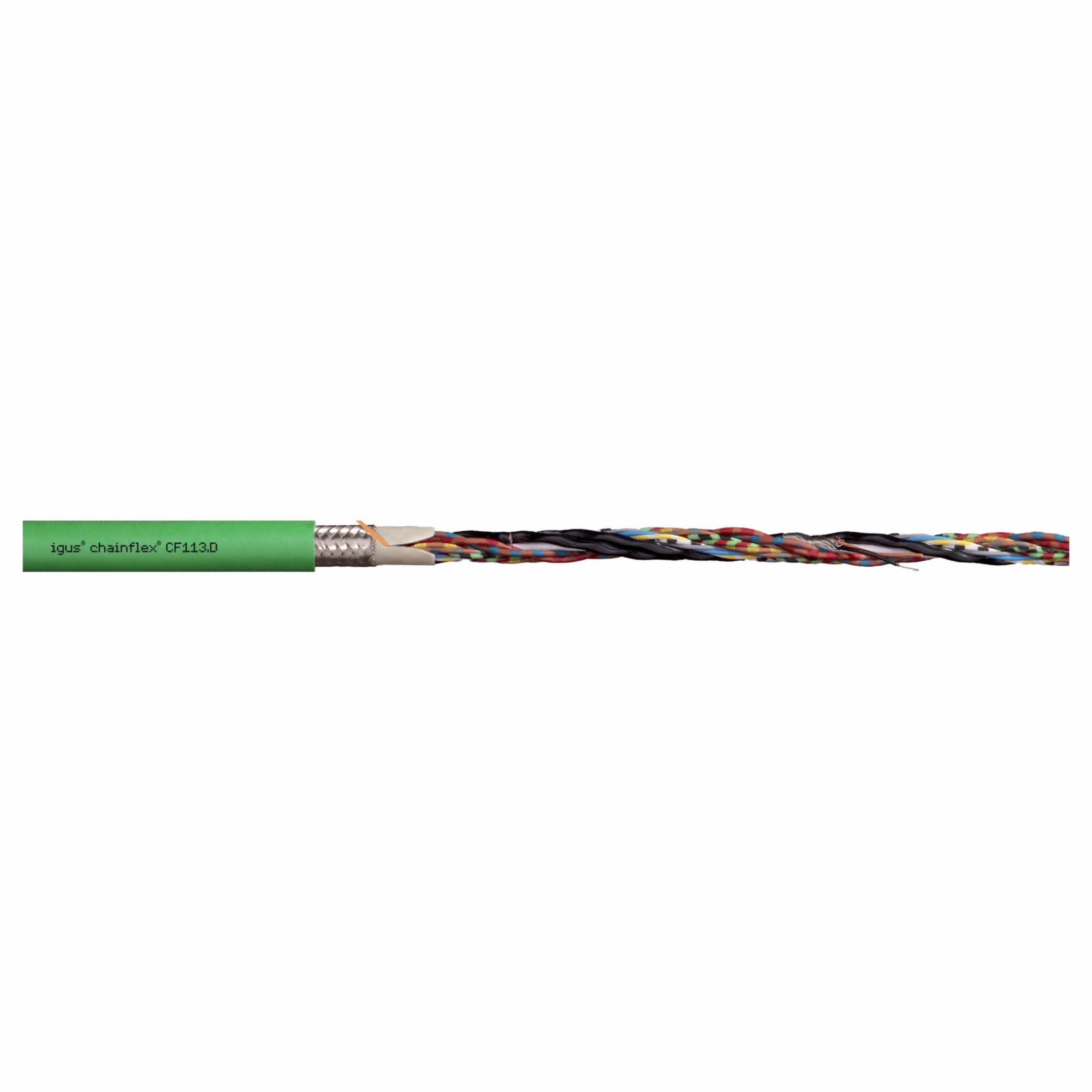

The CHAINFLEX Measuring System Cable (MPN CF113-011-D) is a servo motor feedback cable with a conductor grouping of (4) Pair 22 AWG/(4) 20 AWG, a green PUR jacket, and no included ground. It is sold by the foot and features a minimum bend radius factor of 4 x OD for fixed installation and 6 x OD for flexible installation.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Green, PUR Jacket
Brand	CHAINFLEX
Overall Length	Order by the Foot
Includes Ground	No
Conductor Grouping	(4) Pair 22 AWG/(4) 20 AWG
Manufacturer Part Number	CF113-011-D
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
