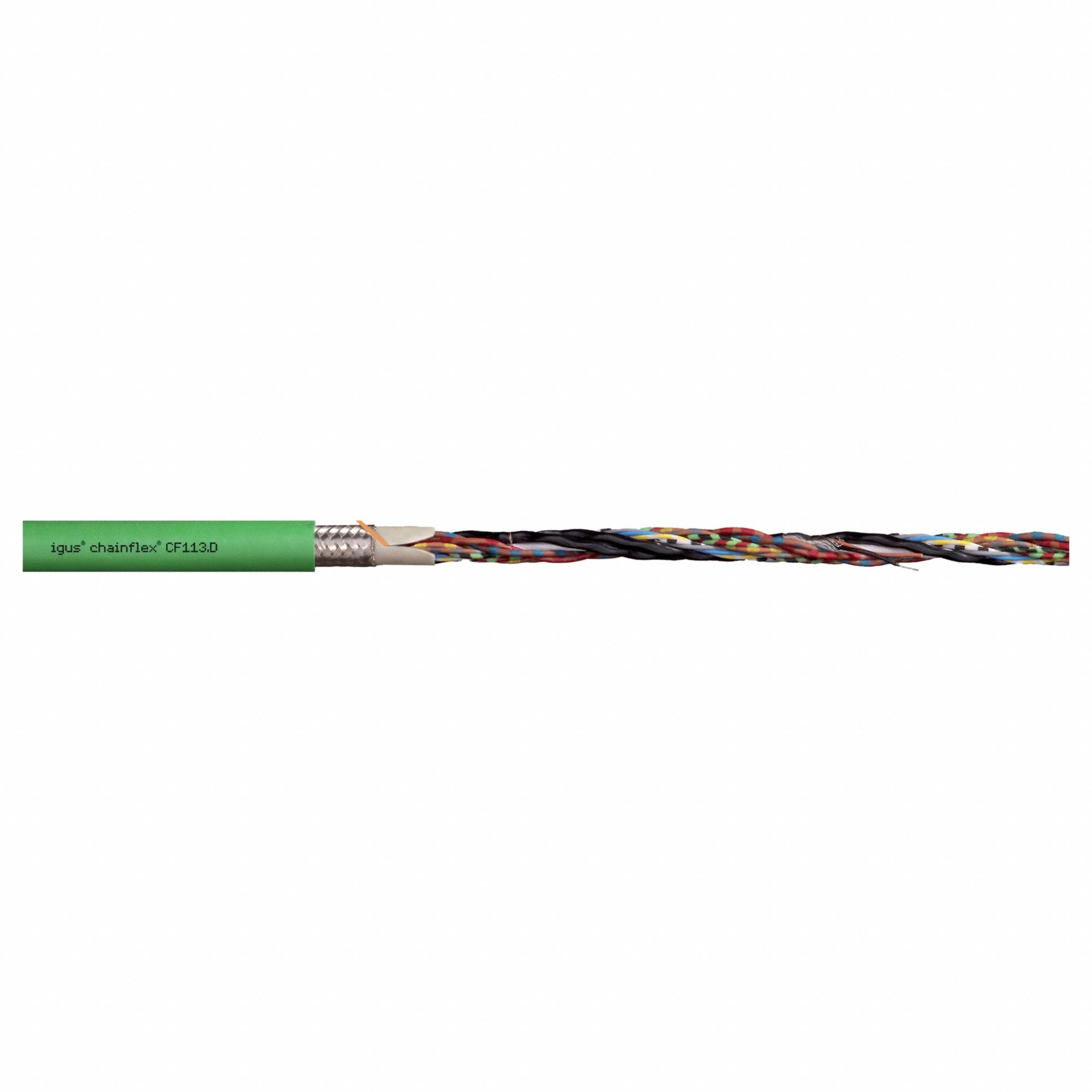

Chainflex 3G-OTH-48422 — Technical Specifications

Name: Chainflex 3G-OTH-48422 CHAINFLEX Measuring System Cable: (3) Pr 26 AWG (0.14)/(2) 17 AWG (1.0), Green, PUR Jacket (MPN CF113-003-D). Key specifications — Conductor Grouping: (3) Pair 26 AWG/(2) 17 AWG; Includes Ground: No; Overall Length: Order by the Foot; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Brand: CHAINFLEX.
Brand: Chainflex

The CHAINFLEX Measuring System Cable (MPN CF113-003-D) is a servo motor feedback cable with a conductor grouping of (3) Pair 26 AWG and (2) 17 AWG, featuring a green PUR jacket. It does not include a ground and is available by the foot. The cable has a minimum bend radius factor of 4 x OD for fixed installation and 6 x OD for flexible applications.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Green, PUR Jacket
Brand	CHAINFLEX
Overall Length	Order by the Foot
Includes Ground	No
Conductor Grouping	(3) Pair 26 AWG/(2) 17 AWG
Manufacturer Part Number	CF113-003-D
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
