Chainflex 3G-OTH-49205 — Technical Specifications

Name: Chainflex 3G-OTH-49205 CHAINFLEX Measuring System Cable: (2) Pr 26 AWG (0.15)/(2) 22 AWG (0.38), Green, PUR Jacket (MPN CF111-028-D). Key specifications — Conductor Grouping: (2) Pair 26 AWG/(2) 22 AWG; Includes Ground: No; Overall Length: Order by the Foot; Minimum Bend Radius Factor - Fixed: 5 x OD; Minimum Bend Radius Factor - Flexible: 8 x OD; Brand: CHAINFLEX.
Brand: Chainflex

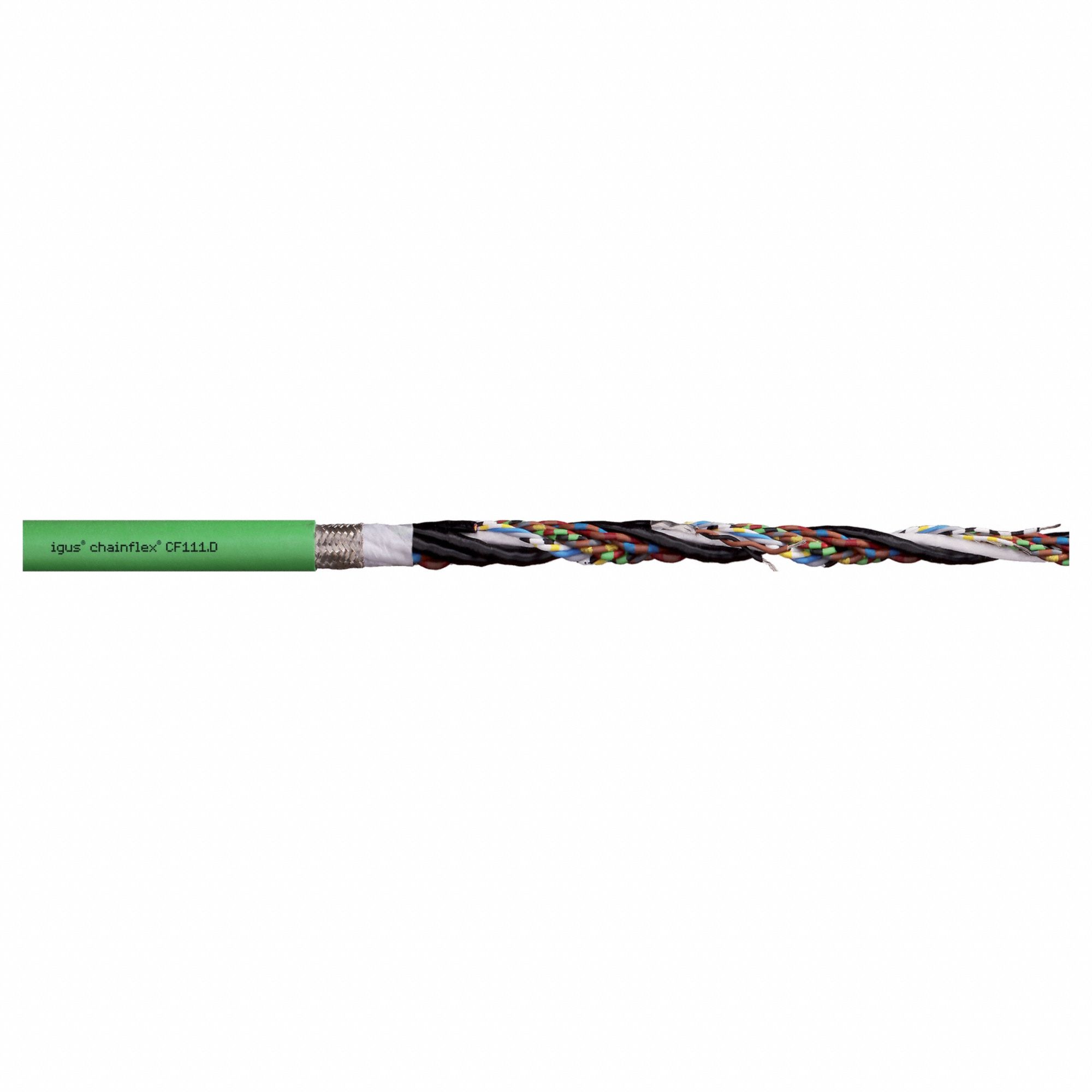

The CHAINFLEX Measuring System Cable (MPN CF111-028-D) is a servo motor feedback cable with a conductor grouping of (2) Pair 26 AWG/(2) 22 AWG, no ground, and a green PUR jacket. It is available by the foot and features a minimum bend radius factor of 5 x OD for fixed installation and 8 x OD for flexible installation.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Green, PUR Jacket
Brand	CHAINFLEX
Overall Length	Order by the Foot
Includes Ground	No
Conductor Grouping	(2) Pair 26 AWG/(2) 22 AWG
Manufacturer Part Number	CF111-028-D
Minimum Bend Radius Factor - Fixed	5 x OD
Minimum Bend Radius Factor - Flexible	8 x OD
