Chainflex 3G-OTH-49588 — Technical Specifications

Name: Chainflex 3G-OTH-49588 CHAINFLEX Measuring System Cable: (4) Pr 24 AWG (0.25)/(2) 20 AWG (0.50), Green, PUR Jacket (MPN CF111-009-D). Key specifications — Conductor Grouping: (4) Pair 24 AWG/(2) 20 AWG; Includes Ground: No; Overall Length: Order by the Foot; Minimum Bend Radius Factor - Fixed: 5 x OD; Minimum Bend Radius Factor - Flexible: 8 x OD; Brand: CHAINFLEX.
Brand: Chainflex

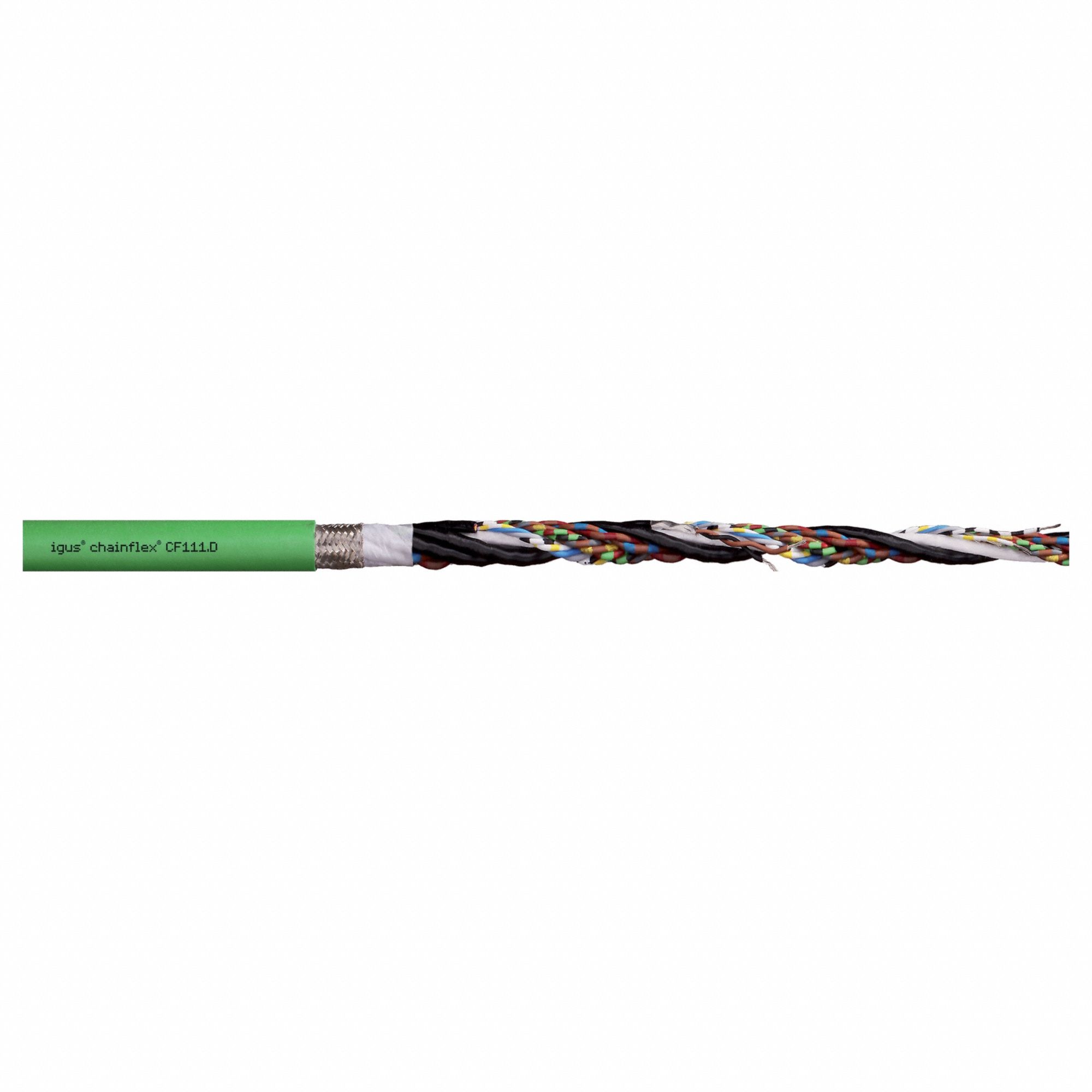

The CHAINFLEX Measuring System Cable (MPN CF111-009-D) is a servo motor feedback cable with a conductor grouping of (4) Pair 24 AWG/(2) 20 AWG, a green PUR jacket, and no included ground. It is sold by the foot and features a minimum bend radius factor of 5 x OD for fixed installation and 8 x OD for flexible installation.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Green, PUR Jacket
Brand	CHAINFLEX
Overall Length	Order by the Foot
Includes Ground	No
Conductor Grouping	(4) Pair 24 AWG/(2) 20 AWG
Manufacturer Part Number	CF111-009-D
Minimum Bend Radius Factor - Fixed	5 x OD
Minimum Bend Radius Factor - Flexible	8 x OD
